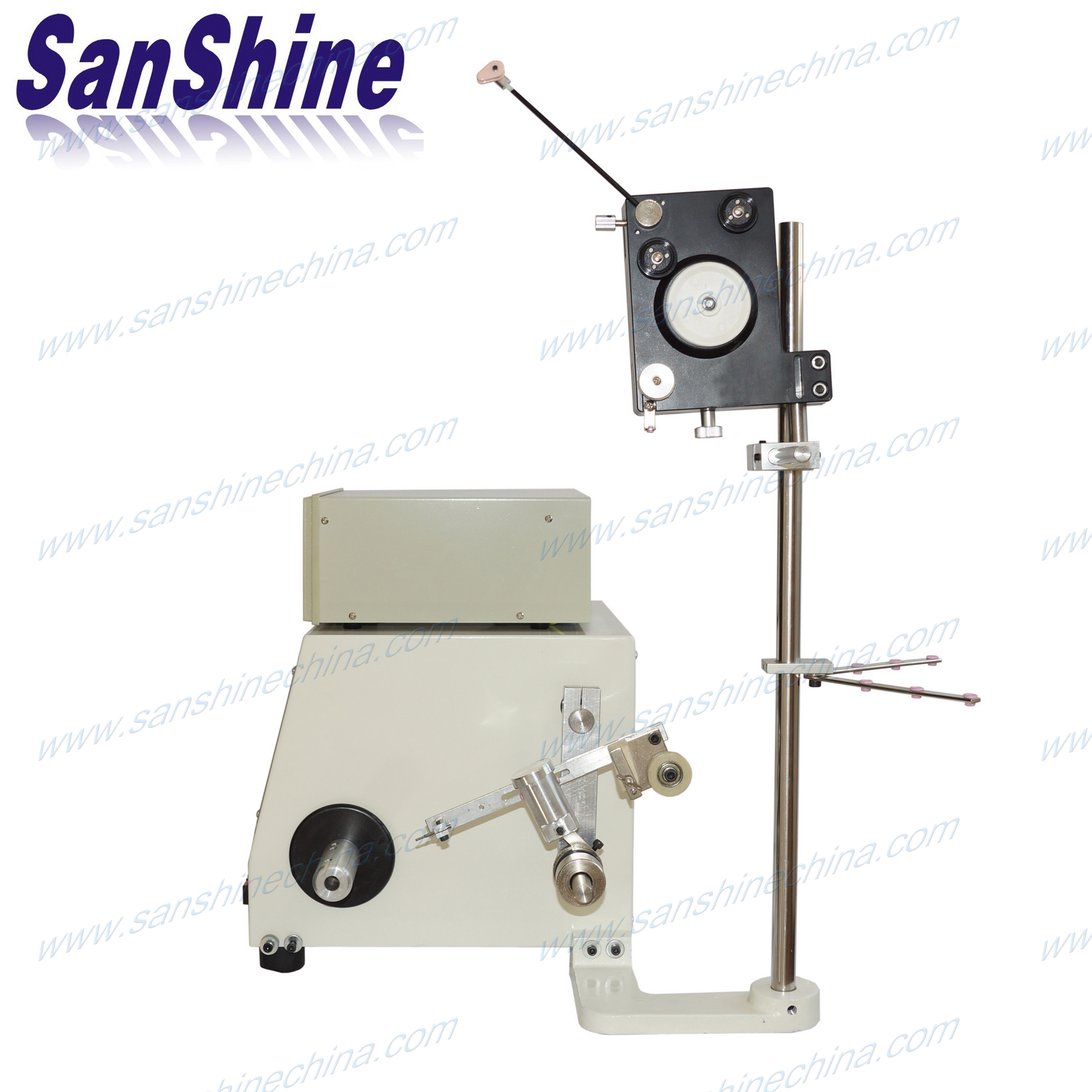

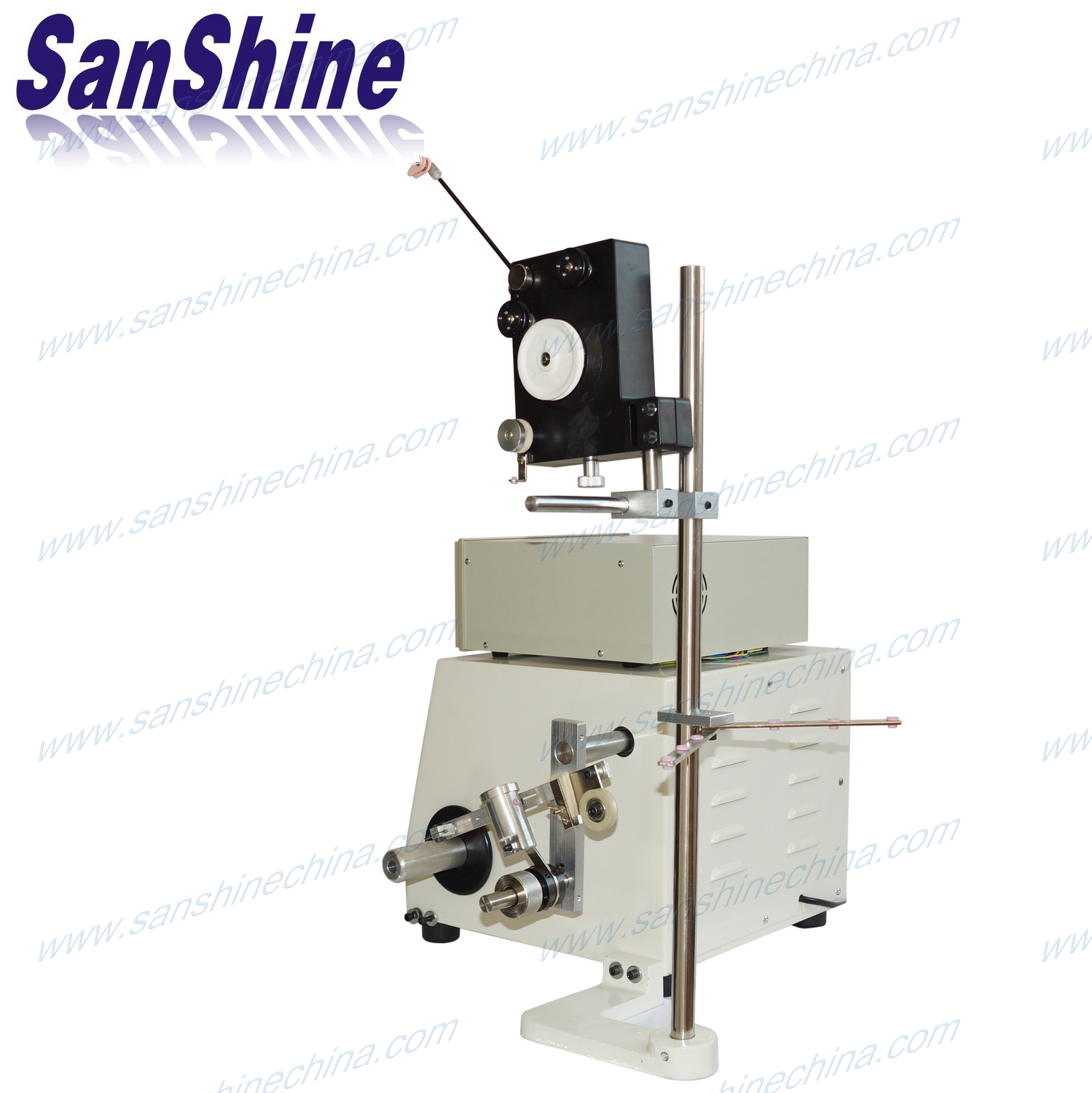

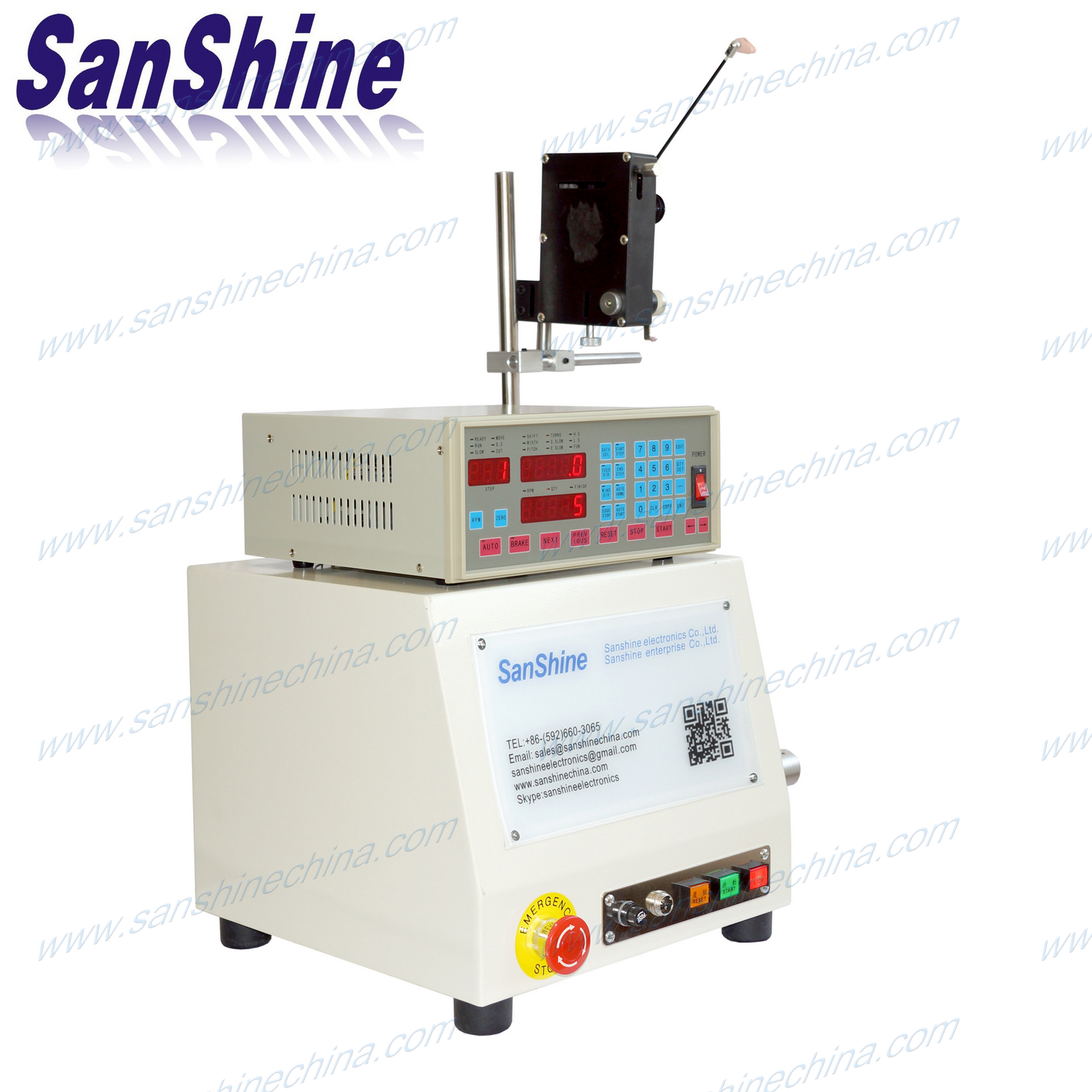

    Product name : Automatic speaker voice coil winding machine (SS600V)





    Description :

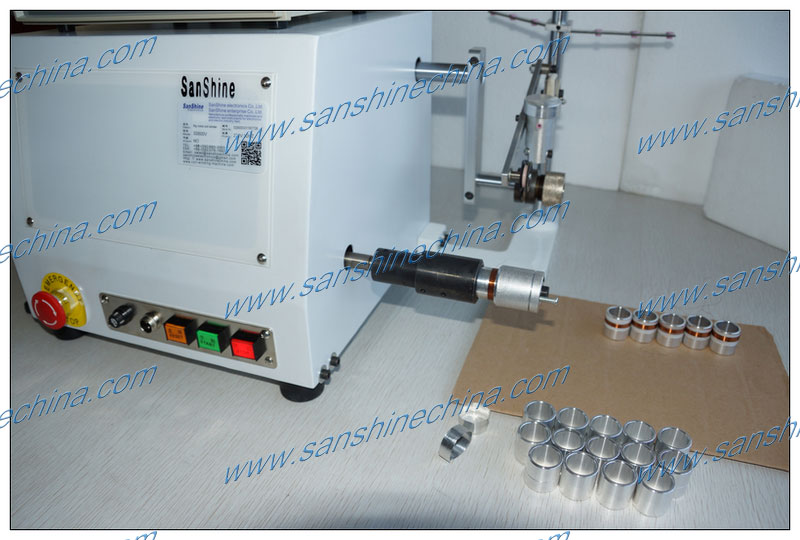

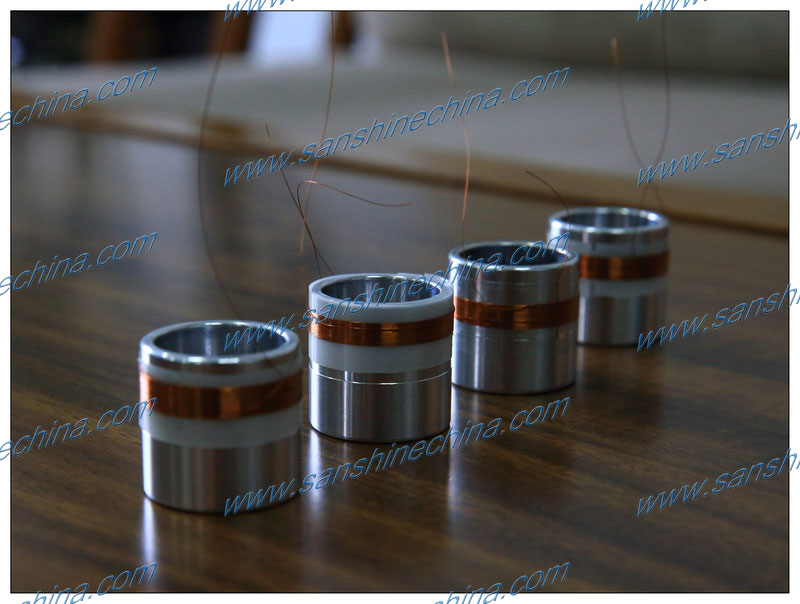

    This (SS600V) CNC automatic speaker voice coil winding machine is one digital programmable coil winding machine, there are insulation tape device and margin tape device(optional), alcohol bath wire spreading head with the machine. The winding tensioner is optional, It's the best choice for big speaker voice coil.
    Features:

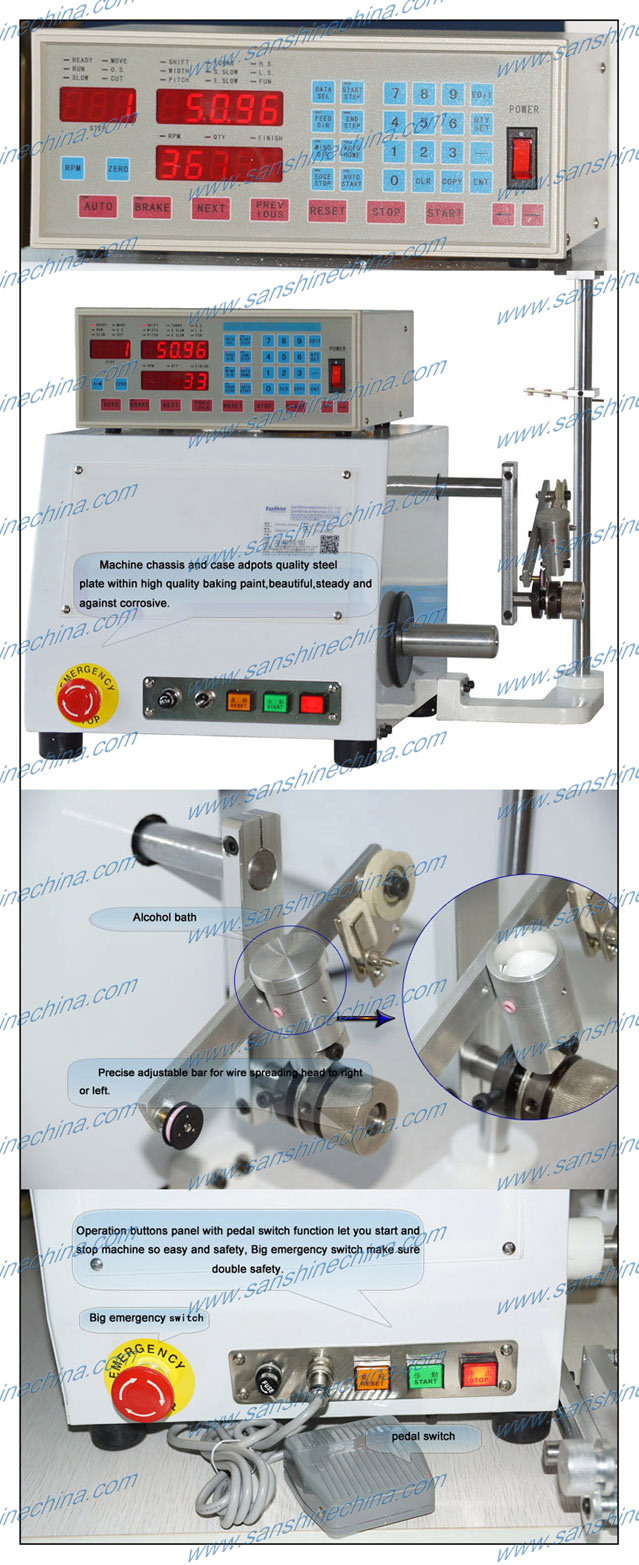

    1. Alcohol bath wire spreading head for the alcohol selfboding wires .
    3. Step motor driven by constant-current power supply, high spreading speed precise winding.
    4. "Start Point" could set by key panel or with teachable function.

    Display will show the position of spreading head while setting.
    5. Wire passing through ceramic guides prevent isulation enamel from high temperature.
    6. Foot-switch connection for better efficiency.
    7. Winding parameters and options can be set independently for each step.
    8. Memory capacity accommodates 999 steps of parameters with off-power memory retention.
    Specification:

    Model SS600V
    Spindles 1
    Wire size 0.08~ 1.0mm
    Spread pitch 0~ 9.999mm
    Spread width 100mm (Max. )
    Coil diameter 110mm (Max. )
    Main motor Brushless Motor
    Spread motor 2-Phase Stepper Motor
    MAX. speed 6000rpm
    Memory 999 Steps
    Power source AC220V/110V ±10%, 50/60 Hz
    Dimension(CM) 76x68x72
    Net weight(KG) 37
