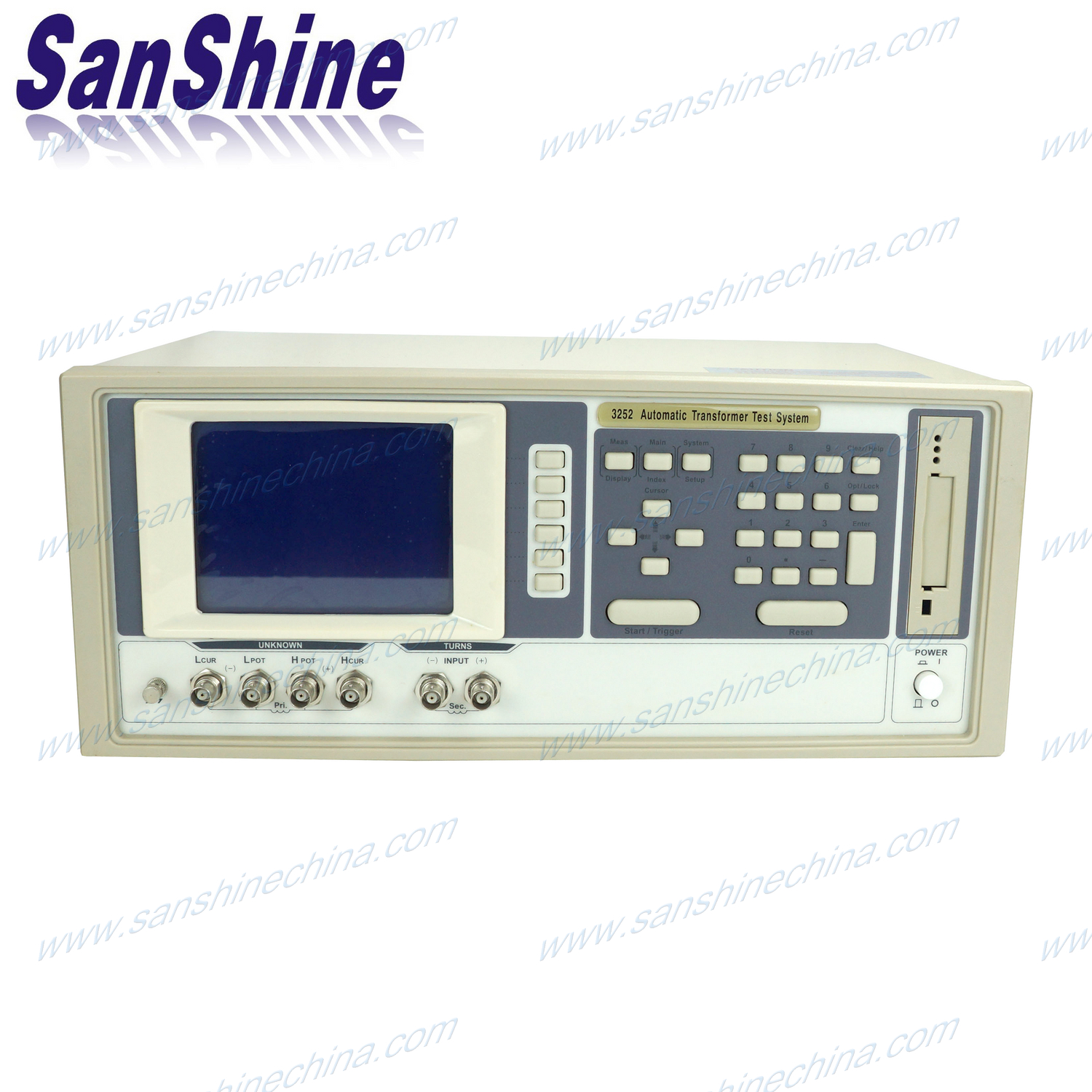

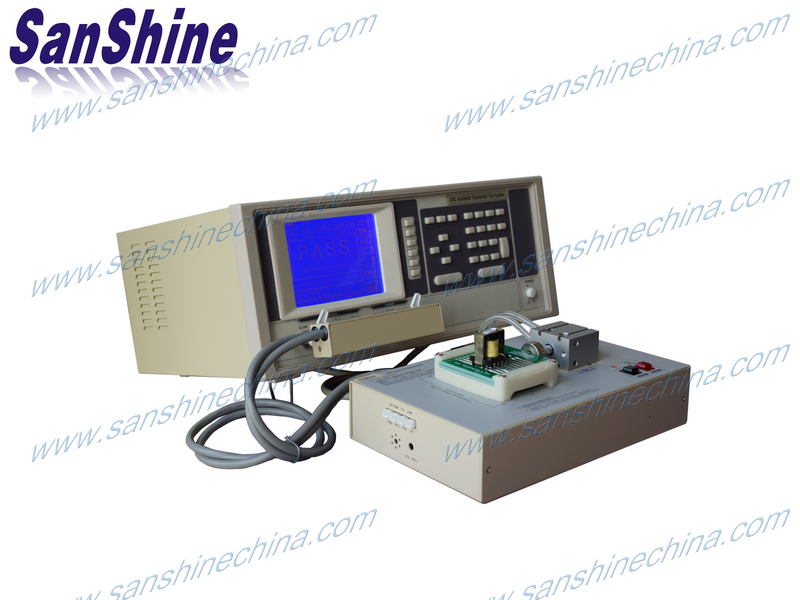

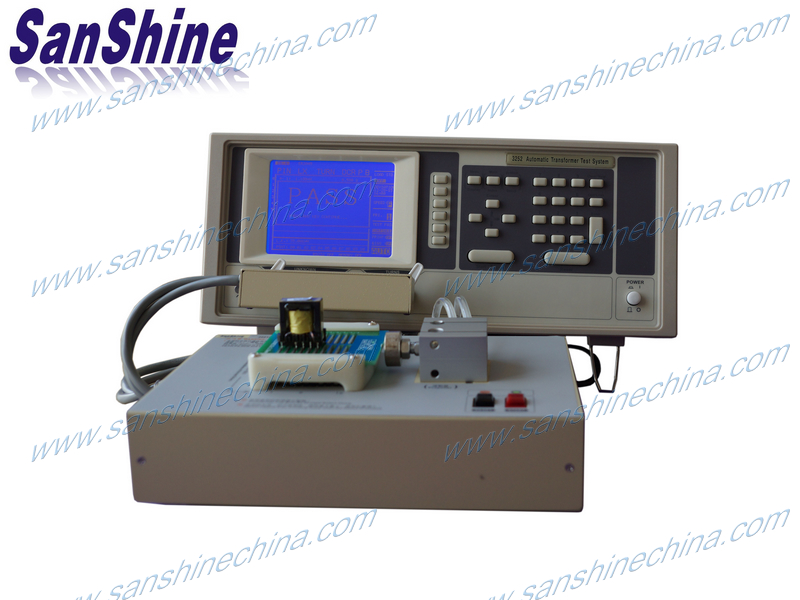

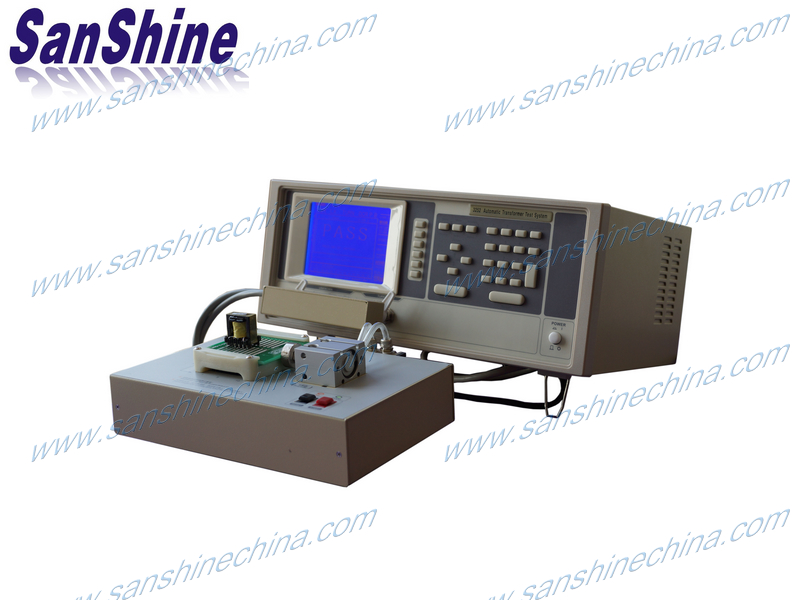

Automatic transformer tester SS3250 SS3252 SS3302
Product 1/1  Automatic transformer tester
  • Automatic transformer tester SS3250 SS3252 SS3302
  • Automatic transformer tester SS3250 SS3252 SS3302
    • Automatic transformer tester SS3250 SS3252 SS3302

    • ID #:22

    SS3250 SS3252 SS3302 automatic transformer testers working video-01(need enter password to watch)

    (Server in USA)

    SS3250 SS3252 SS3302 automatic transformer testers working video-02(need enter password to watch)

    (Server in USA)

    Description :

    The SS3250 / SS3252 / SS3302 automatic transformer test instrument is a precision test system, designed for transformer production line or incoming/outgoing inspection in quality control process, with high stability and high reliability. With the enhanced capability in turn ratio measurement, they can solve the measuring problems of low coupling coefficient, transformer's turn ratio and turn number with more precise measurement. In addition to transformer scanning test function, the SS3302 / SS3252 have LCR Meter function. Operator-friendly and value-added, they can help you reduce production cost greatly. They finish instantaneous these parameters testing (Turn ratio , Phase ,Turn , L , Q, L.K , Balance , ACR , Cp , DCR , Pin short. ) at one time.
    Feature :
    1. Test frequency: 20Hz-200KHz/1MHz, 0.02% accuracy.
    2. Basic accuracy: 0.1%
    3. Output impedance modes, measurement results are compatible with other well-known LCR meters.
    4. Enhanced Turn Ratio measurement accuracy for low permeability core
    5. Fast Inductance/Turn Ratio measurement speed up to 80 meas. /sec
    6. Fast DCR measurement speed up to 50 meas. /sec
    7. Bias current source directly control capability (SS3252/3302)
    8. 320x240 DOT-matrix LCD display
    9. Support versatile standard and custom-design test jigs
    10. Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
    11. Build-in comparator; 10 bin sorting with counter capability (SS3252/3302)
    12. 2M SRAM memory card, for setup back-up between units
    13. Standard RS-232, HANDLER, PRINTER interface
    14. 50 internal instrument setups for store/recall capability

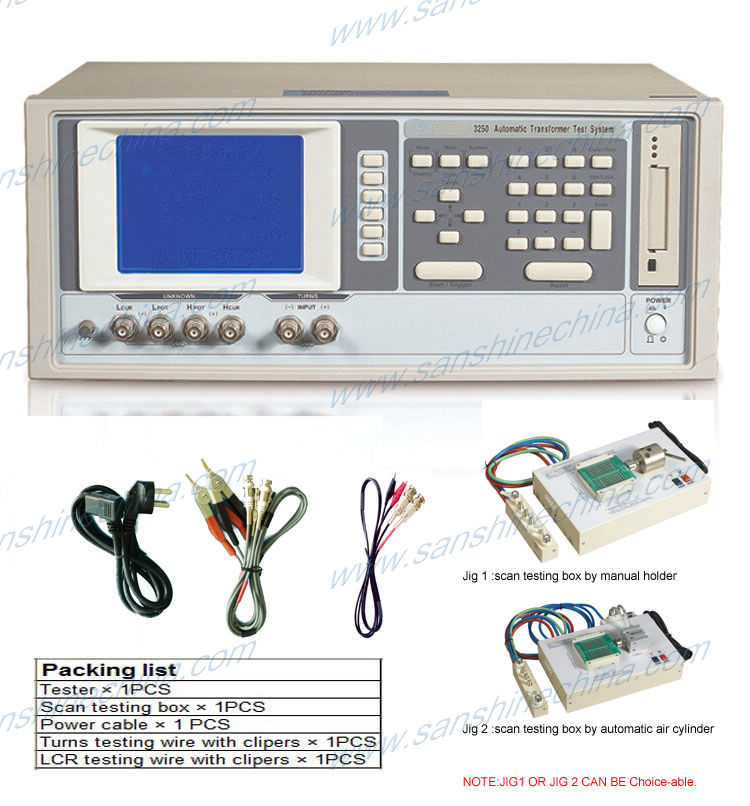

    Order items :
    A. SS3250 / SS3252 / SS3302
    B. 3001A(scaning testing box)
    C. Universal fixture
    D. Custom-made fixture (optional)
    E. Memory card (optional)
    Specification :
    Model SS3250 SS3252 / SS3302
    Main functions transformer Auto. analyzer transformer Auto. analyzer + LCR meter
    Analyse parameter
    Transformer Auto. Measure Turn ratio , Phase ,Turn ,L ,Q, L.K ,Balance ,ACR ,Cp ,DCR ,Pin short.
    LCR Measure General L ,C ,R ,DCR L ,C ,R , 1Z1 ,Y ,DCR ,Q ,D ,R ,X ,  θ
    Measure Signal
    Measure Level Turn 10mV~10V,±10% ,10mV/Step
    Other 10mV~2V,±10% ,10mV/Step
    Meas. Frequency Turn 3250 ,3252 :1KHZ ~ 200KHZ ,±0.02%
    3302 :1KHZ~1MHZ ±0.02% ,Min. display :0.01HZ
    other 3250 ,3252 : 0HZ ~ 200KHZ ,±0.02%
    3302 : 20HZ~1MHZ ±0.02% , Min. display : 0.01HZ
    Out impendance Turn 10Ω , Meas. level≤2V
    50Ω , Meas. level > 2V
    Other Constant=OFF : according to resistance value range to be
    Constant=320X : 100Ω±0.5%
    Constant=107X : 25Ω±0.5%
    Constant=106X : 50Ω   100mA±0.5%(setup 1V )
    inductance load <10Ω , 10Ω±10% , impedance≥10Ω
    Measure Display range
    L , L.K 0.00001uH ~ 9999.99H
    C 0.00001pF ~ 999.999mF
    Q, D 0.00001 ~ 99999
    Z, X, R 0.00001Ω ~ 99.9999MΩ
    Y 0.01nS ~ 99.9999S
    θ -90.00 ~ +90.00
    DCR 0.01mΩ ~ 99.9999MΩ
    Turn 0.01 ~ 99999.99T(S windings voltage < 100Vrms)
    Pin - Short 11 windings , pin and pin
    Base accuracy
    L , L.K , C , Z , X , Y , R , DCR 0.1% ( AC parameter 1KHZ )
    Q , D 0.0005 ( 1KHZ )
    θ 0.03° ( 1KHZ )
    Turn 0.5% ( 1KHZ )
    Measure speed ( fast )
    L , L.K , C , Z , X , Y , R ,Q , D , θ 80Meas./S
    DCR 50Meas./S
    Turn 10Meas./S
    Judgement way
    Transformer Auto. Meas. the judgement of all parameters of NG or good which be output by ordered processor.
    LCR Measure parameters be displayed. 10 levels sorting and total No. be output by ordered processor. The judgement of parameter of good or NG be output by standard processor.
    Displayer revising function 320*240 points LCD displayer
    Open / Short , load revising
    Memory 50 groups setup , can be extended by memory card.
    Equivalent circuit model series , parallel
    Trigger inner , manual , external
    Common Spec.
    Environment 10degree centigrade ~ 40degree centigrade ,10% ~ 90%RH
    Power consuming Max.140W
    Power 90 ~ 125V AC  or 190~250V AC   48HZ~62HZ
    Weight ≈ 8.5KG
    Dimensions( W×H×L ) 430×180× 320mm
