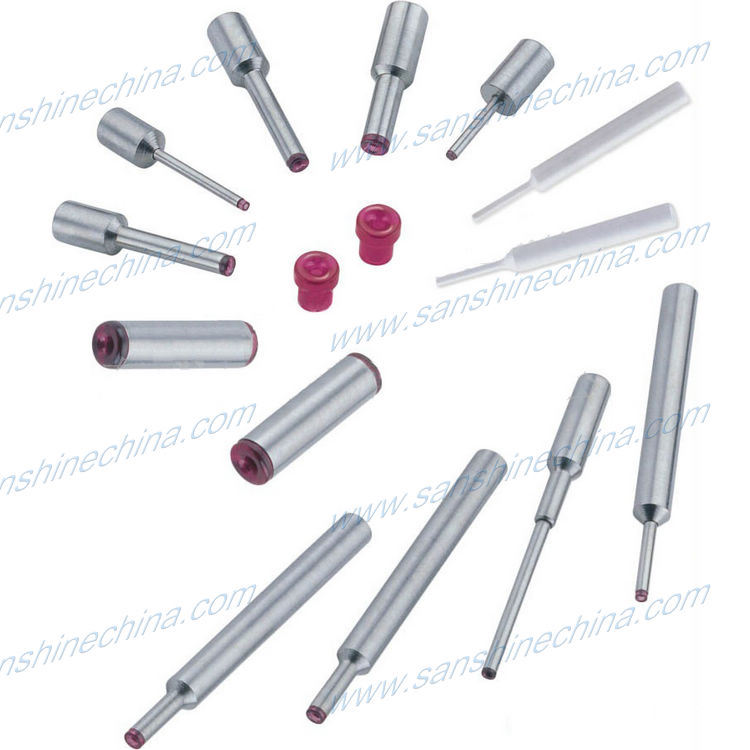

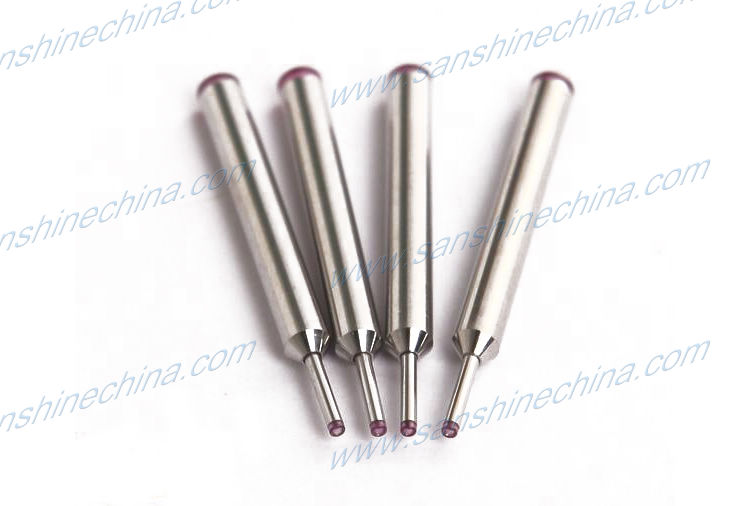

Ruby tipped coil winding nozzle
Product 3/3  Coil winding nozzle  Tungsten carbide coil winding nozzle
  • Ruby tipped coil winding nozzle
  • Ruby tipped coil winding nozzle
  • Ruby tipped coil winding nozzle

    Rubby tipped coil winding nozzle working video in user's factroy(need enter password to watch)

    (Server in USA)

    Features:
    1. High Wear Resistance
    This is assured by the choice of materials for wear elements possessing. Hardness Value: 1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless steel for structural supports, not wear-bearing.
    2. Scratch-Proofing
    Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit.
    3. Straightness and Stiffness
    Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
    4. Precise Exit Radii
    Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.
    Specification:

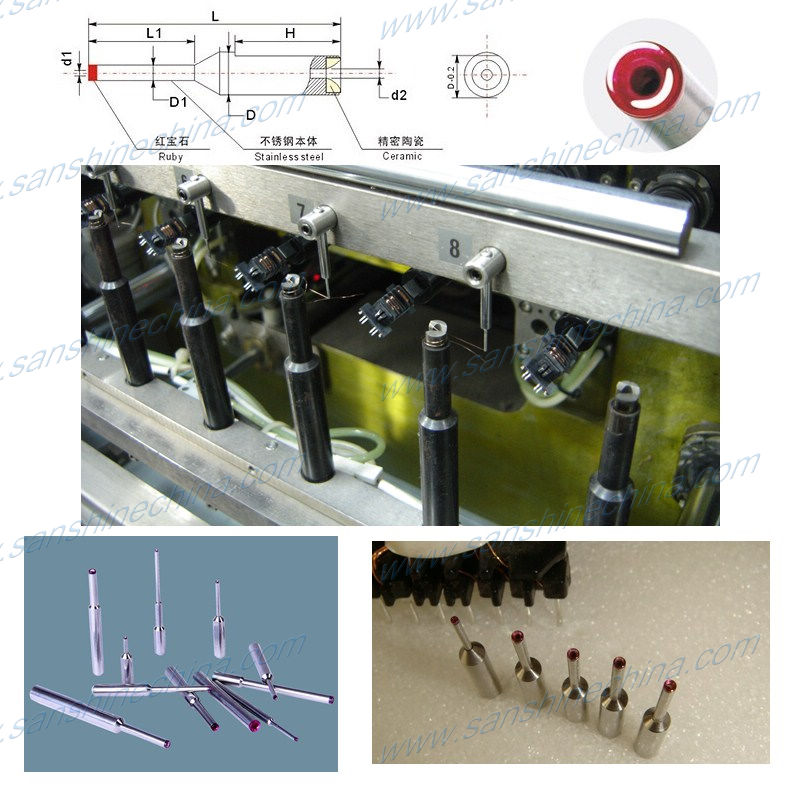

    Measurements are customized available by requested, outside diameter is governed by nozzle wall thickness. See the measurements drawing to confirm your nozzles measurements according to your winding machine and coil products.
    Processing limit: d1≥0.2mm, D1≥0.7mm.
