    Six spindles automatic coil winding machine with wire twister SS966T

    Description :

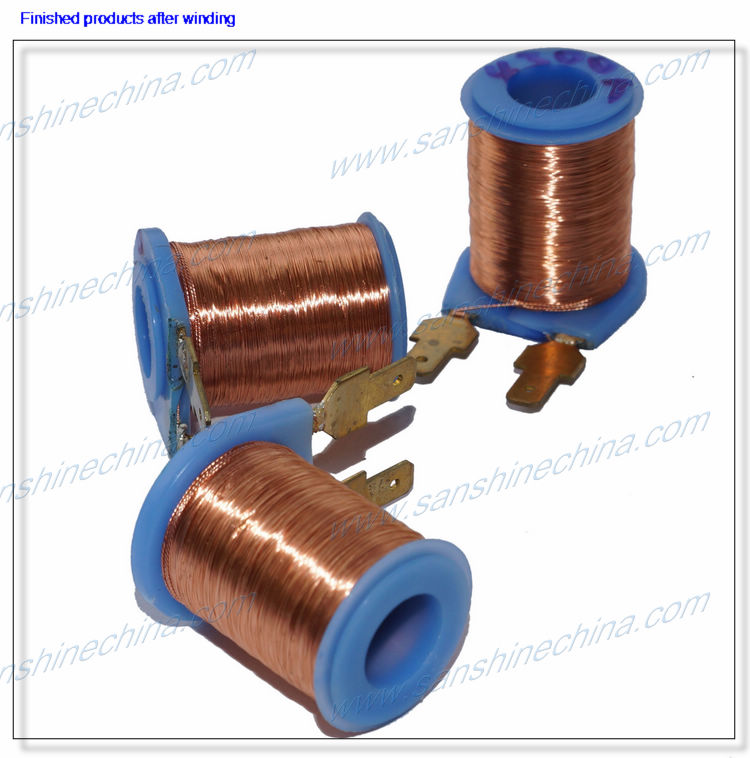

    The SS966T CNC coil winding machine are digital programmable high-speed coil winding machine with the wire twister(skeiner),there are two models: four spindles, six spindles. It's the highest efficiency coil winding machine. Used for winding the very fine copper wire bobbin coils(like as : some inverters, relays, transformers, inductor, electronic valve coil, etc.),The SS966T can automatic twist the fine wires to be more thick according to  requirements for the wire terminals before wind pins.

    Features :
    1.Microprocessor design, easy for program-setting.
    2.Stepping motor driven by constant-current power supply,high spreading speed precise winding.
    3."Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.
    4.Wire spreading by nozzle type spreading heads.
    5.Wire passing through ceramic rollers prevent enamel from high temperature, protect insulation film of wire.
    6.Multiple spindles winding synchronal for highest efficiency.
    7.Foot-switch connection for better efficiency.
    8.Winding parameters and options can be set independently for each step.
    9.Memory capacity accommodates 999 steps of parameters with off-power memory retention.

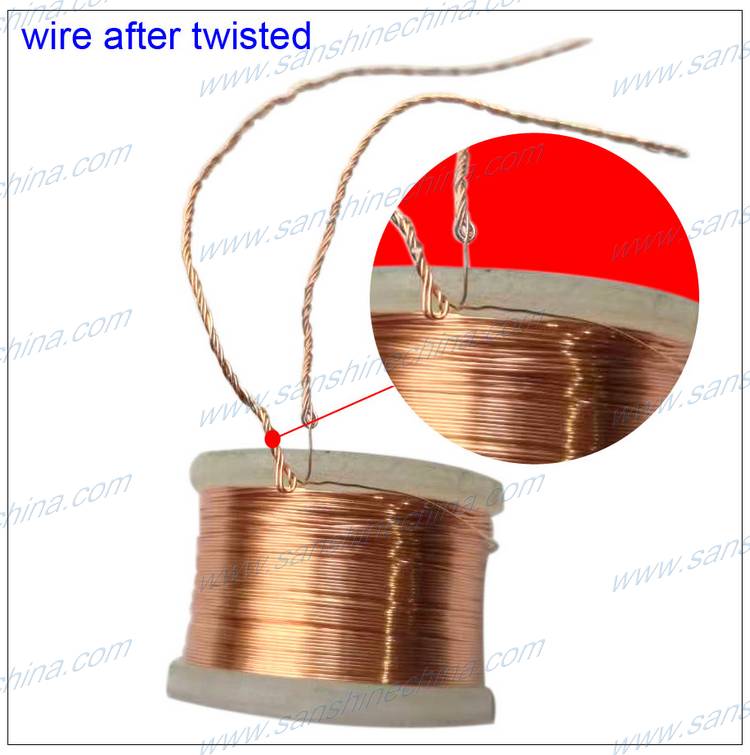

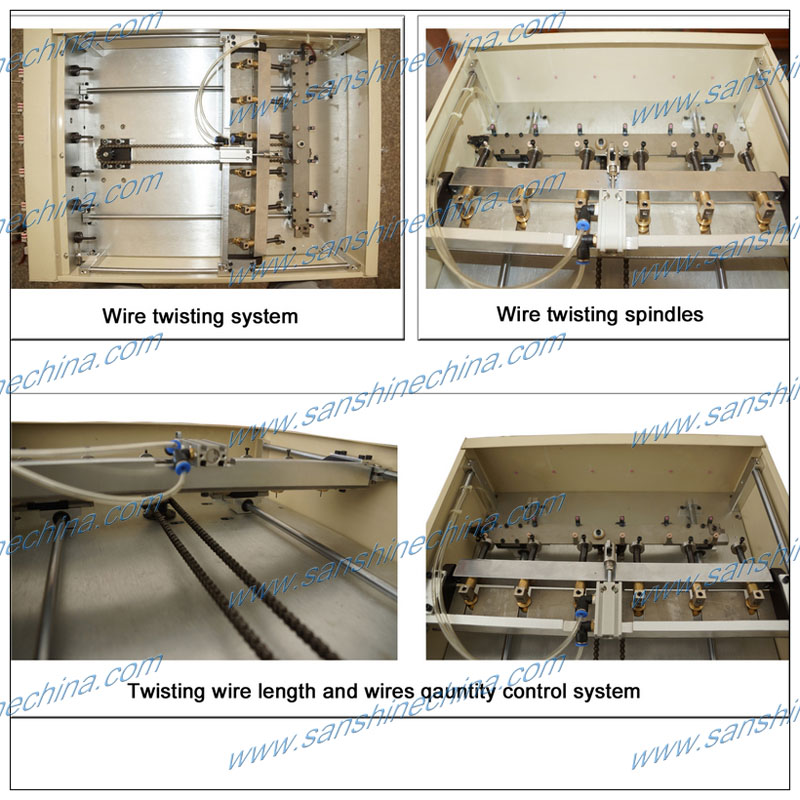

    10. Automatic twist the wire according to the setup program.
    11. Adopts the FLASH ROM memory for save every one different twisting programs with off-power  memory retention.
    12. Provides 0 ~ 99 types speed for the twister.
    13. Automatic diagnose the fault of machine.
    Specification :
    Model SS964T SS966T
    winding spindles 4 6
    power source single phase 220V 50/60HZ
    twisting motor AC 200W servo motor
    winding motor DC brushless 400W
    winding speed 8000RPM
    twisting speed 6000RPM
    twisting stocks programable between 3~ 19(odd number)
    twisting length 130~ 300mm
    rounds of threaded wire 1 ~ 999T
    wire diameter 0.01~ 0.25mm
    spread pitch 0~ 9.99mm
    spread width(winding width or traverse length) Max. 110mm
    winding diameter(finished coil outside diameter) Max. 80mm Max. 60mm
    maching net weight 75Kg
    machine size 80*53*60cm
