Three spindles automatic coil winding machine (SS863)
Product 13/26  Automatic linear coil winding machine  Automatic high torsion electric power transformer coil winding machine (SS810)  Four spindles automatic coil winding machine with wire twister (SS964T)
  • Three spindles automatic coil winding machine (SS863)

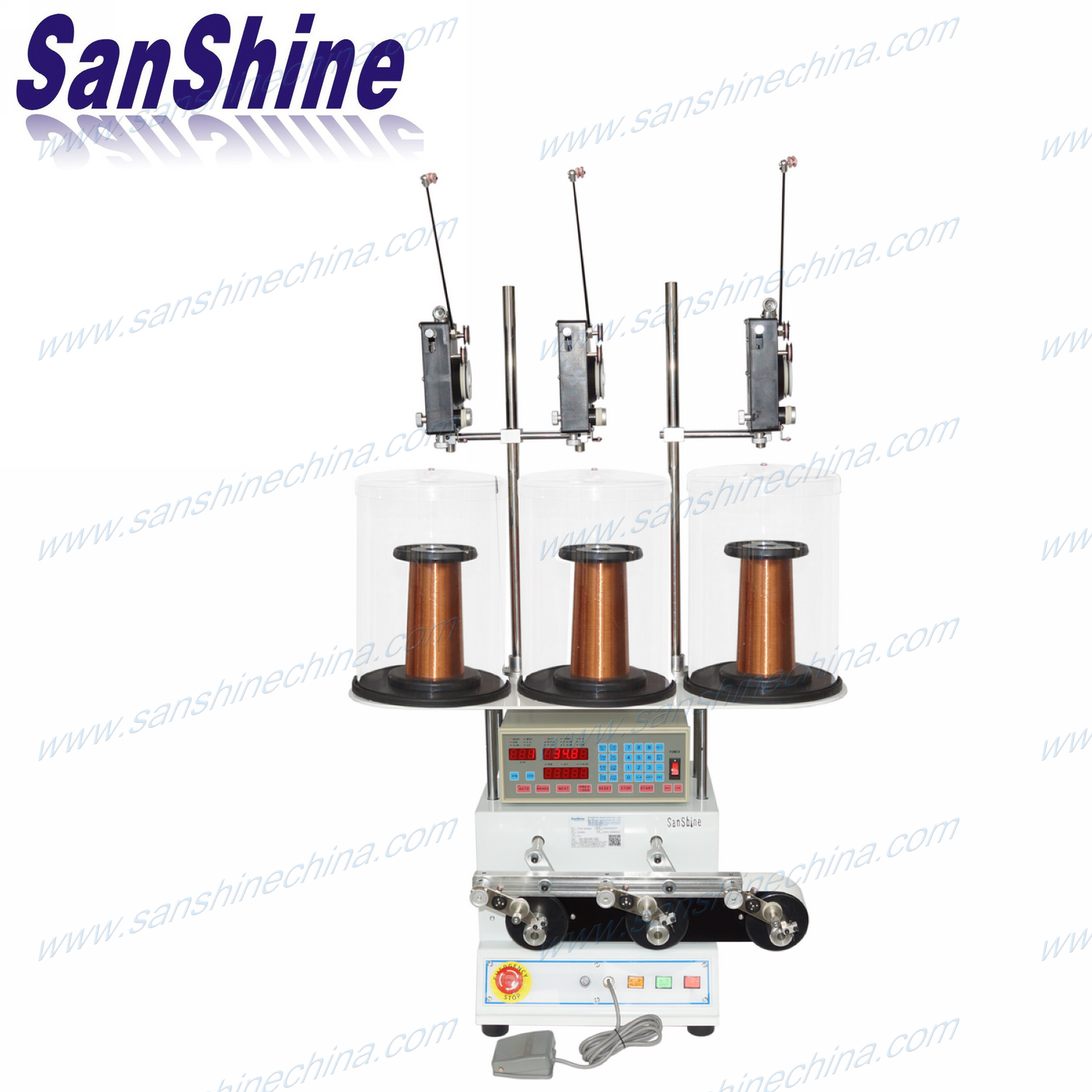

  • Three spindles automatic coil winding machine (SS863)

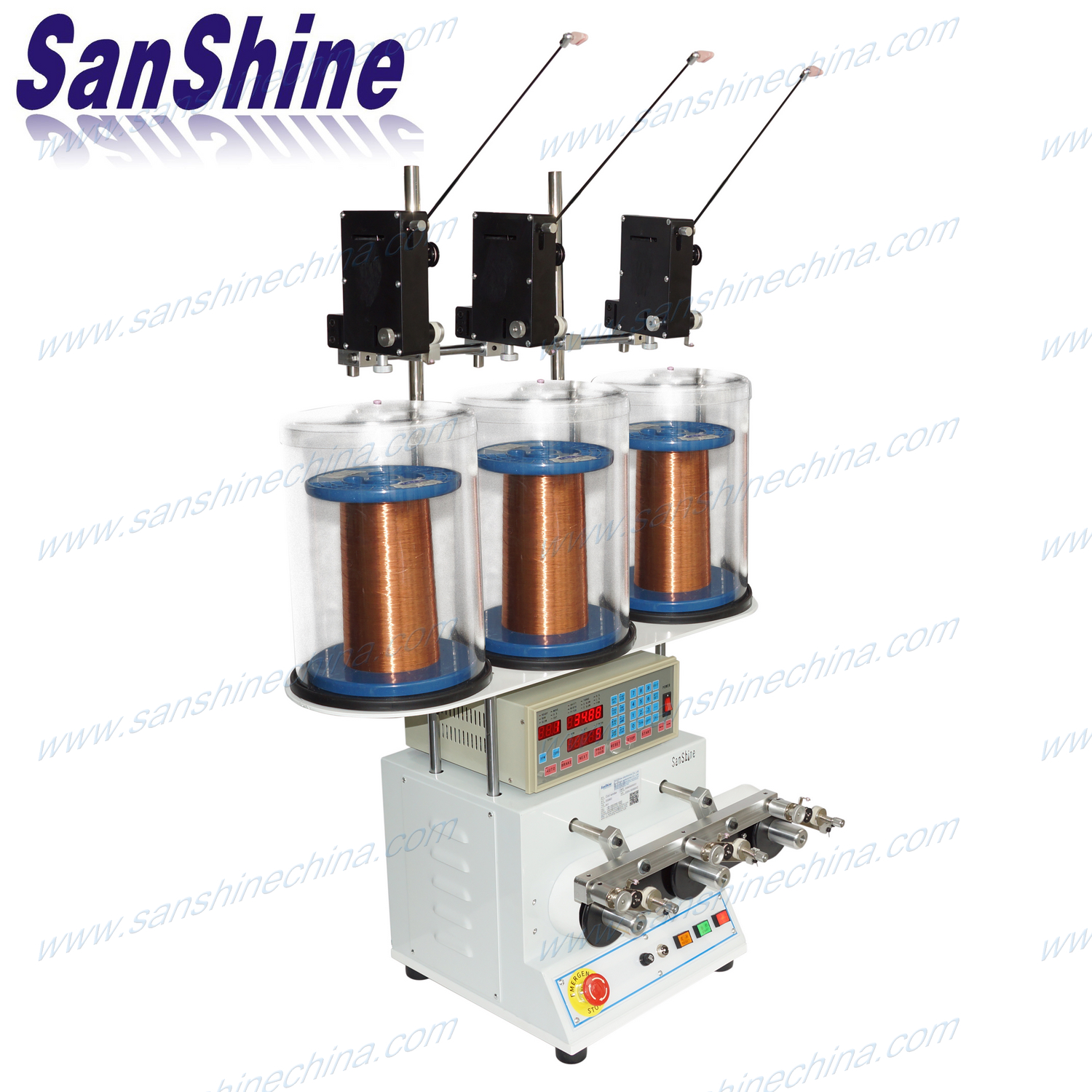

  • Three spindles automatic coil winding machine (SS863)

    Product name : Three spindles automatic  coil winding machine (SS863)



    Description :

    This (SS863) three spindles digital coil winding machine are digital programmable High-speed coil winding machine, there are four models: One spindle, two Spindles, three spindles and four spindles. It's the highest efficiency equipment. are best choice for winding transformer,inductor,relay,ignition,contactor,electric valve,etc. .

    Feature :

    1. Microprocessor design, easy for program-setting.

    2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

    3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

    4. Wire spreading by nozzle type spreading head.

    5. Wire passing through ceramic rollers prevent enamel from high temperature.

    6. Multiple spindles winding synchronal for highest efficiency.

    7. Foot-switch connection for better efficiency.

    8. Winding parameters and options can be set independently for each step.

    9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

    10. 3 types wire tensioner ( type A for wire diameter 0.02~0.25mm,  type B for wire diameter 0.06~0.5mm,  type C for wire diameter 0.3~0.8mm )

    Specification :

    ModelSS861SS862SS863SS864
    Spindles 1 2 3 4
    Wire size 0.03~ 0.8mm (Depends on Tensioner & Nozzle)
    Spread pitch 0~ 9.999mm
    Spread width 100mm (Max. )
    Coil diameter 100mm (Max. )
    Main motor Brushless Motor
    Spread motor Stepping motor
    Max. speed 6000rpm
    Memory 999 Sequences
    Power source AC220V ±10%, 50/60 Hz
    Dimension (cm) 45x67x100 50x67x100 75x67x100 100x67x100
    Net weight(Kg) 45 50 55 60
