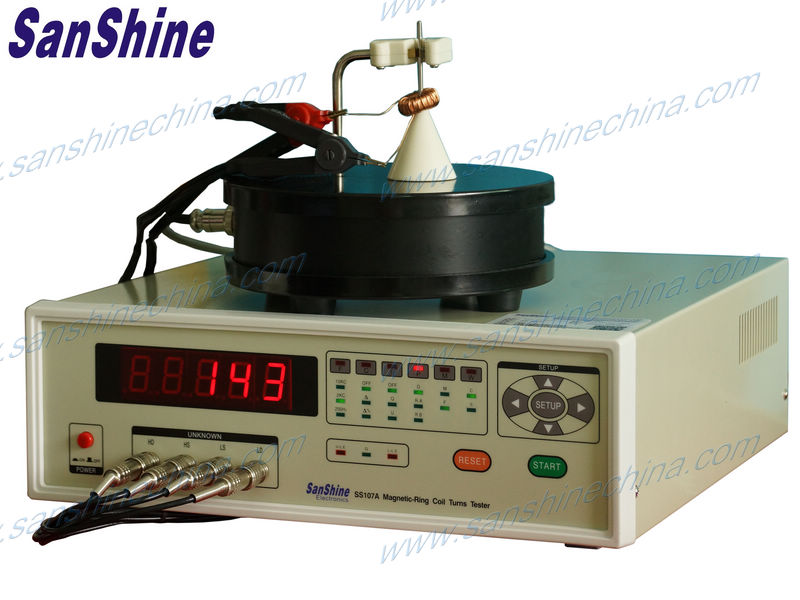

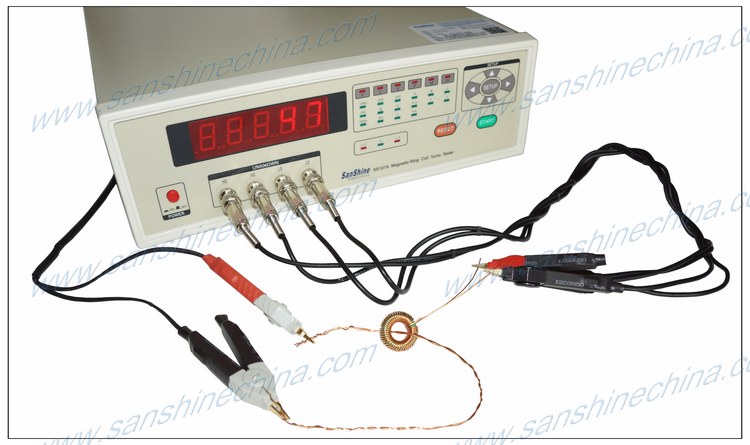

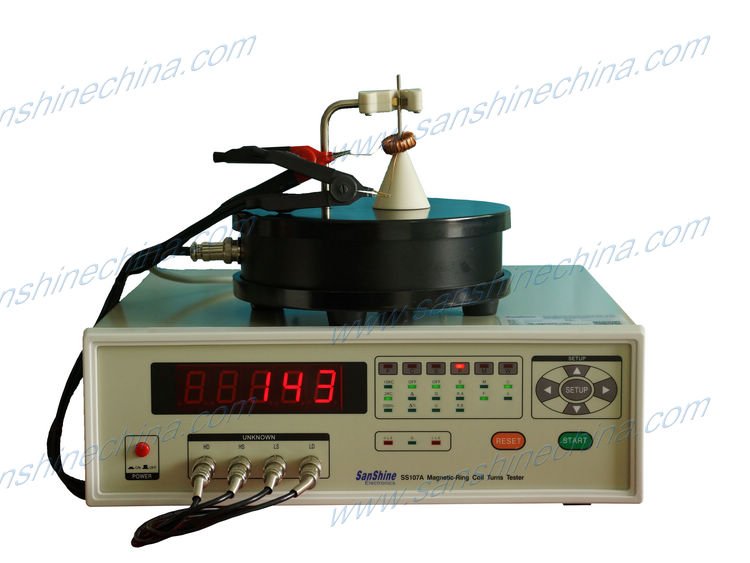

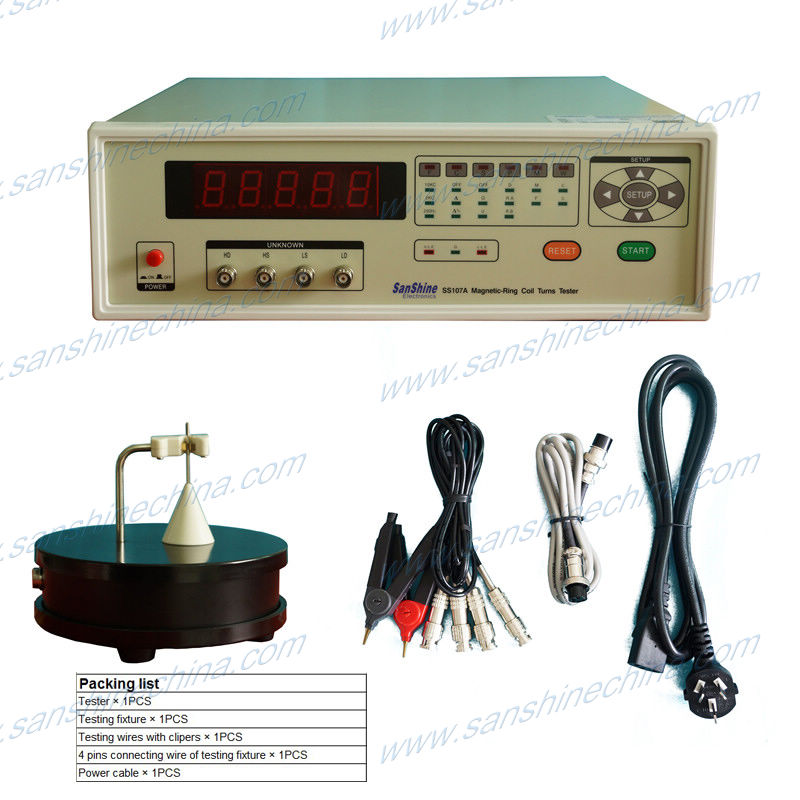

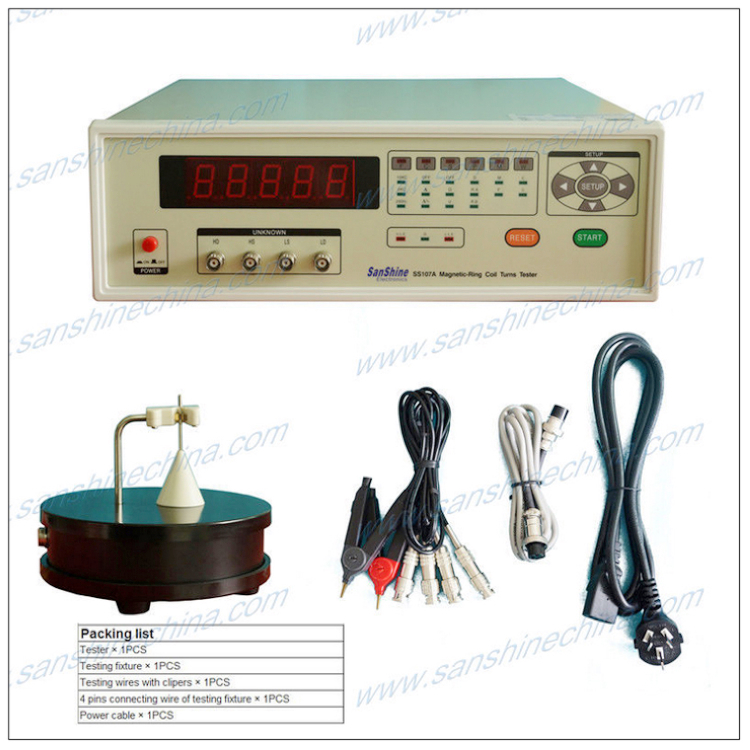

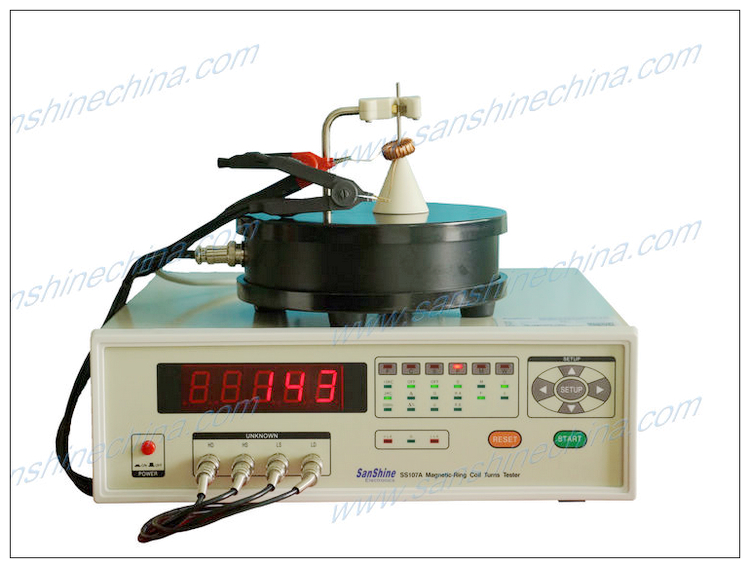

Product name : Toroid core Coil turns tester (SS107A)
Description :
The magnetic toroid ring core winding Coil turns tester (SS107A) adopts the high speed center microprocessing unit circuits and precise measurment A/D circuits. This Coil turns tester is used to count the coil turns of various toroid core winding coils. Like as : toroid core inductors, toroid core transformers, toroidal core sensors, wate meter sensors, toroid current transformers, toroid core choke coils, etc. . This turn tester is named magnetic ring core coil turn tester also.
Feature :
1. CPU control and digital display.
2. Operation easy.
3. Open and short revising function
4. Set up the parameter limited for automatic judgement with buzzer.
Specification :
Model | SS107A | SS107B | ||
testing parameter | coil turns of toroid core | coil turns of toroid core | ||
coil turns range | 0 ~ 20000T | 0 ~ 20000T | ||
testing accuracy | ± 0.1% | ± 0.1% | ||
automatic distinguishing | by absolute deviation / percent deviation / close | |||
automatic distinguishing way | pass / fail / close | |||
testing way | continual / single | |||
testing terminal | four terminals | |||
power | 220V± 10%, 50HZ | |||
weight | about 5KG | |||
measurement | tester350× 110× 390(mm), fixture190×160(mm) | |||
