Transformer automatic taping machine (SS-TP01)
Product 5/5  Automatic taping machine  programable automatic large rectangular core coil tape bonding machine
  • Transformer automatic taping machine (SS-TP01)
  • Transformer automatic taping machine (SS-TP01)
  • Transformer automatic taping machine (SS-TP01)
  • Transformer automatic taping machine (SS-TP01)

    Product name ：Transformer automatic taping machine (SS-TP01)





    Description :

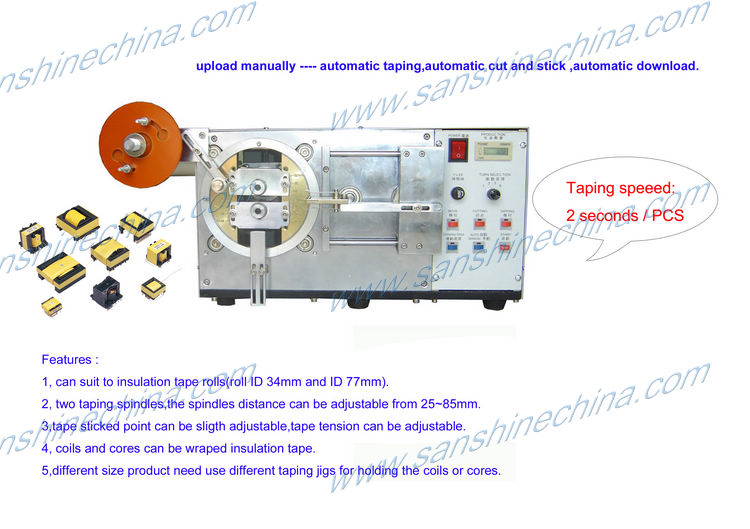

    The automatic tapping machine (SS-TP01) is used for taping the bonding tape or insulation adhesive tape on the core of transformers, on core of inductors, so that fix the EI core or EE core or ET core within transformer or inductor. and used for taping adhesive insulation tape for transformer coil, inductor coils, relay coils, ignition coils, contactor coils, valve coils, etc. ,Easy to operate.



    Specifications :

    1. Power source: AC 220V, 50/60Hz, single phase.

    2. Machine dimension: 350(L)*580(W)*300(H)mm.

    3. Net weight: About 45Kgs.

    4. Working speed: 2Sec. / PC

    5. Taping axis(spindles) Qty.: 2 axises.

    6. Center distance of the spindles: Max. 81mm .

    7. Suitable products size like as model: EI 8 to EI 66(depend on different fixtures).
