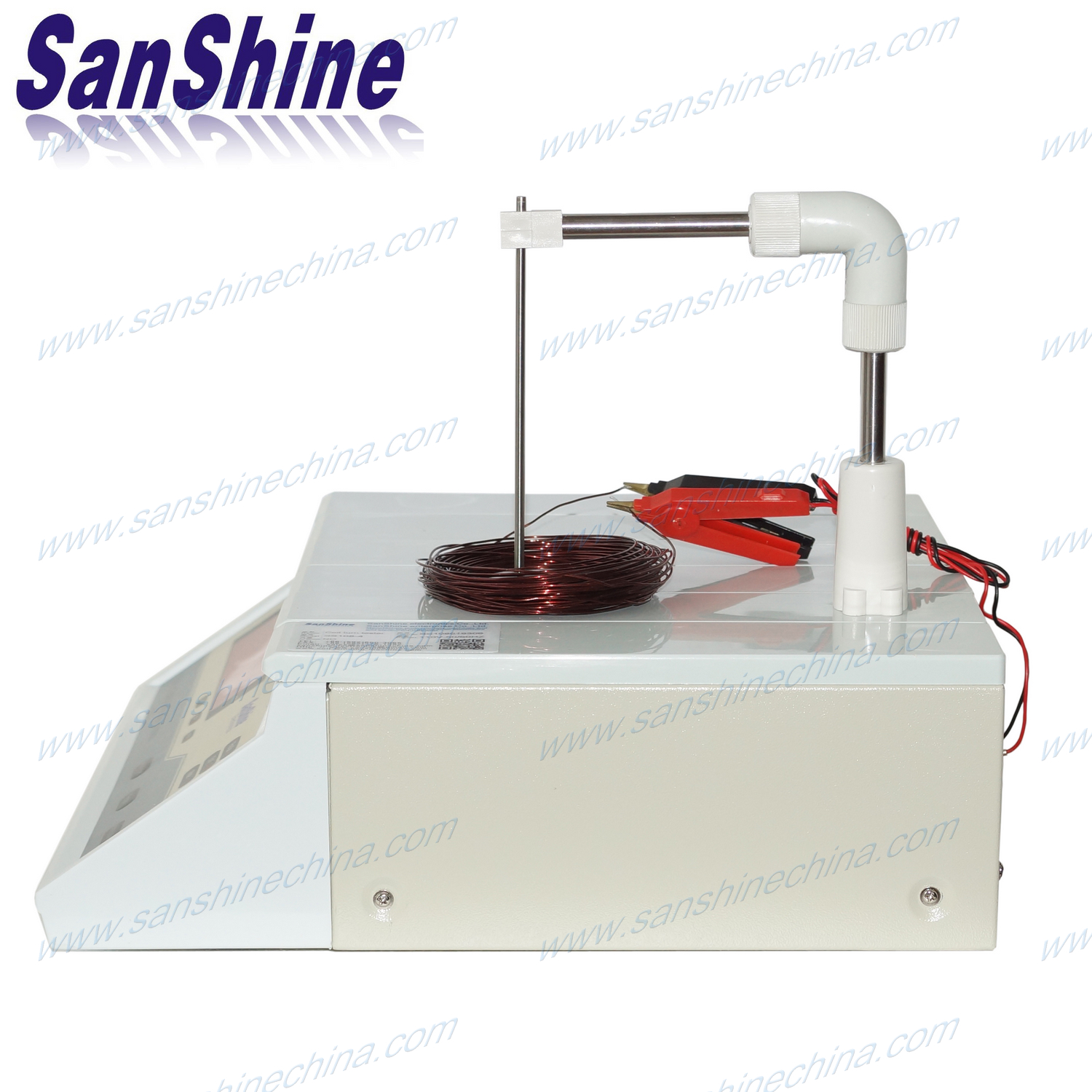

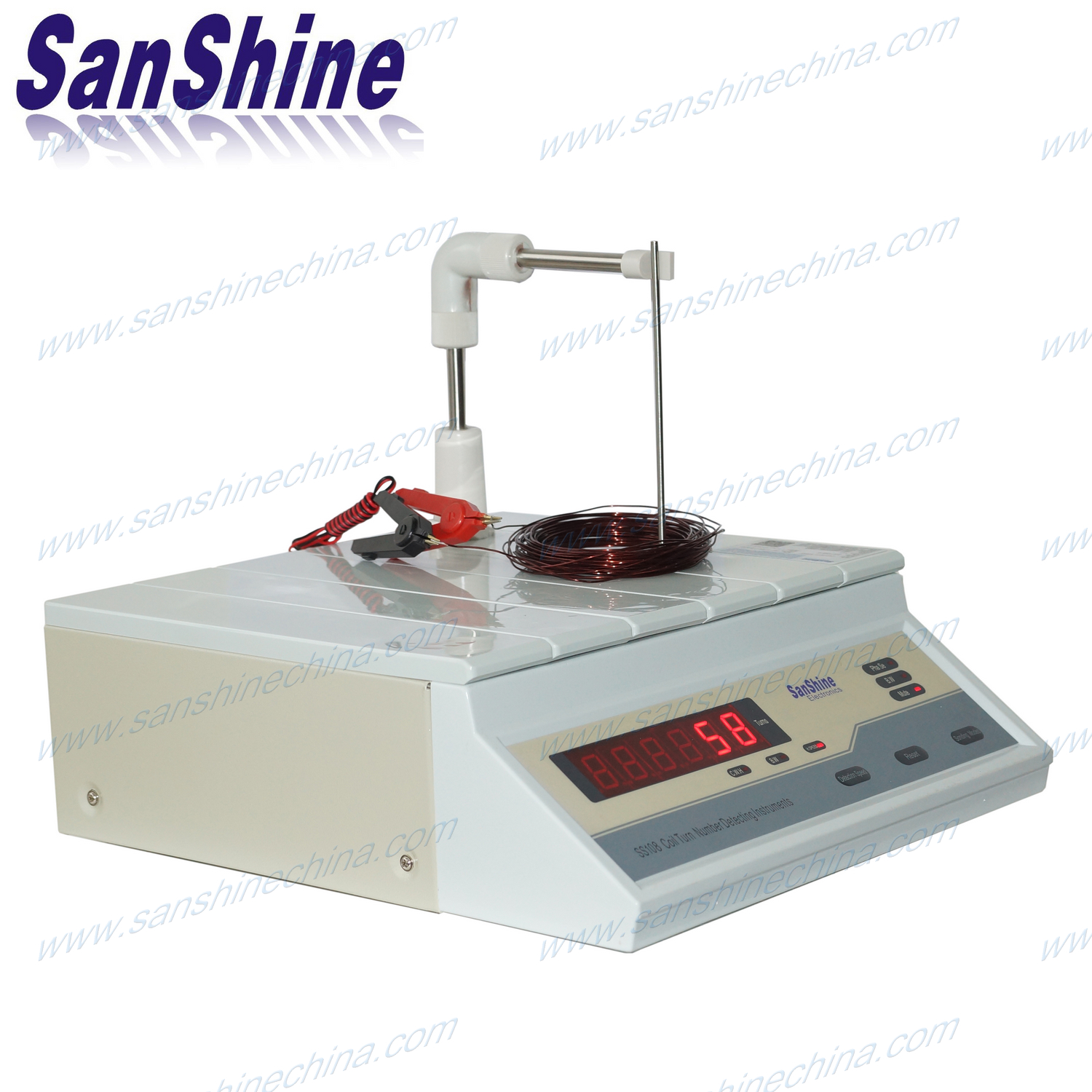

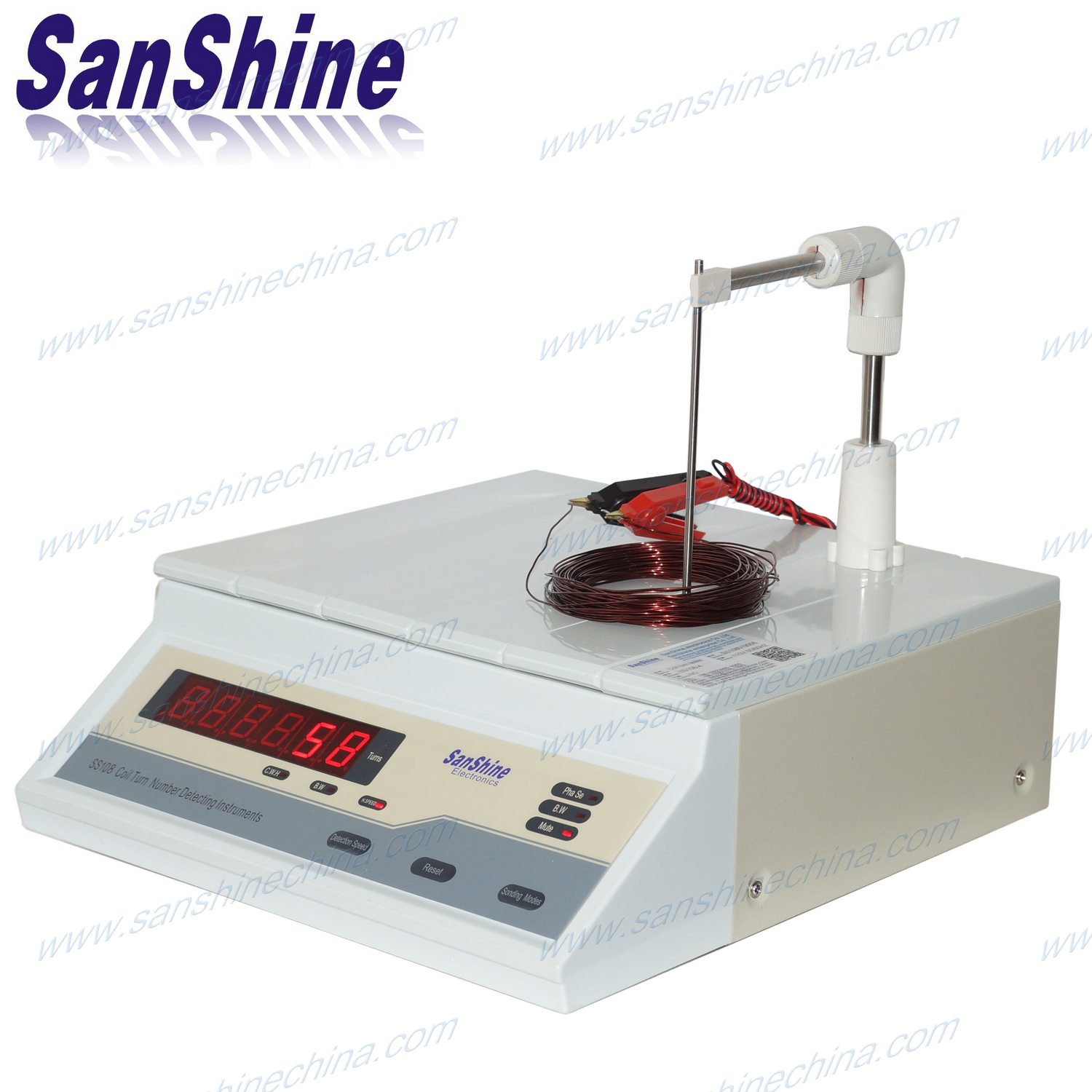

Bobbin winding coil turns tester (SS108 series)
Product 1/2  Bobbin winding coil turns tester  Bobbin winding coil turns tester (SS108A series)
  • Bobbin winding coil turns tester (SS108 series)
  • Bobbin winding coil turns tester (SS108 series)
  • Bobbin winding coil turns tester (SS108 series)
  • Bobbin winding coil turns tester (SS108 series)

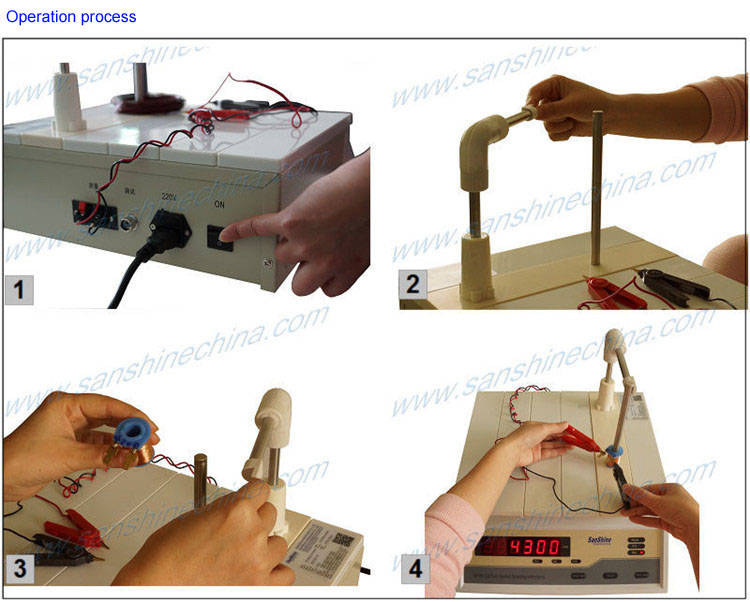

    Video : (SS108 seris) winding coil turns tester

    Description :
    This (SS108** series) winding coil turn testers are used for testing turn of various coils without core,like as: Generator winding,transformer winding,relay,inductor,motor winding,contactor,ignition coil,voice coil, etc..
    Feature :
    1. CPU control and digital display.
    2. Operation easy, don't need switch the range,automatic range testing.
    3. Accuracy: 02%.
    4. 5 digital counts display.
    Specification :

    Model
    SS108-10 SS108-6 SS108-4 SS108-X
    coil inside diameter > 10mm > 6mm > 4mm specially size can be customized.
    coil outside diameter < 120mm
    coil height < 110mm
    testing rod diameter 10mm 6mm 4mm
    coil turns range 0 ~ 60000T
    testing accuracy(tolerance) 0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
    testing speed fast 3 Measurements /s, slow 1.2 Meas. /s
    weight 7KG
    measurement 370*220* 110mm
