large power single three phase transformer generator coil turn testing machine
Product 1/1
  • large power single three phase transformer generator coil turn testing machine
  • large power single three phase transformer generator coil turn testing machine
  • large power single three phase transformer generator coil turn testing machine
  • large power single three phase transformer generator coil turn testing machine

    Product name :  large power single three phase transformer generator coil turn testing machine (SS-BT1500)






    Description :

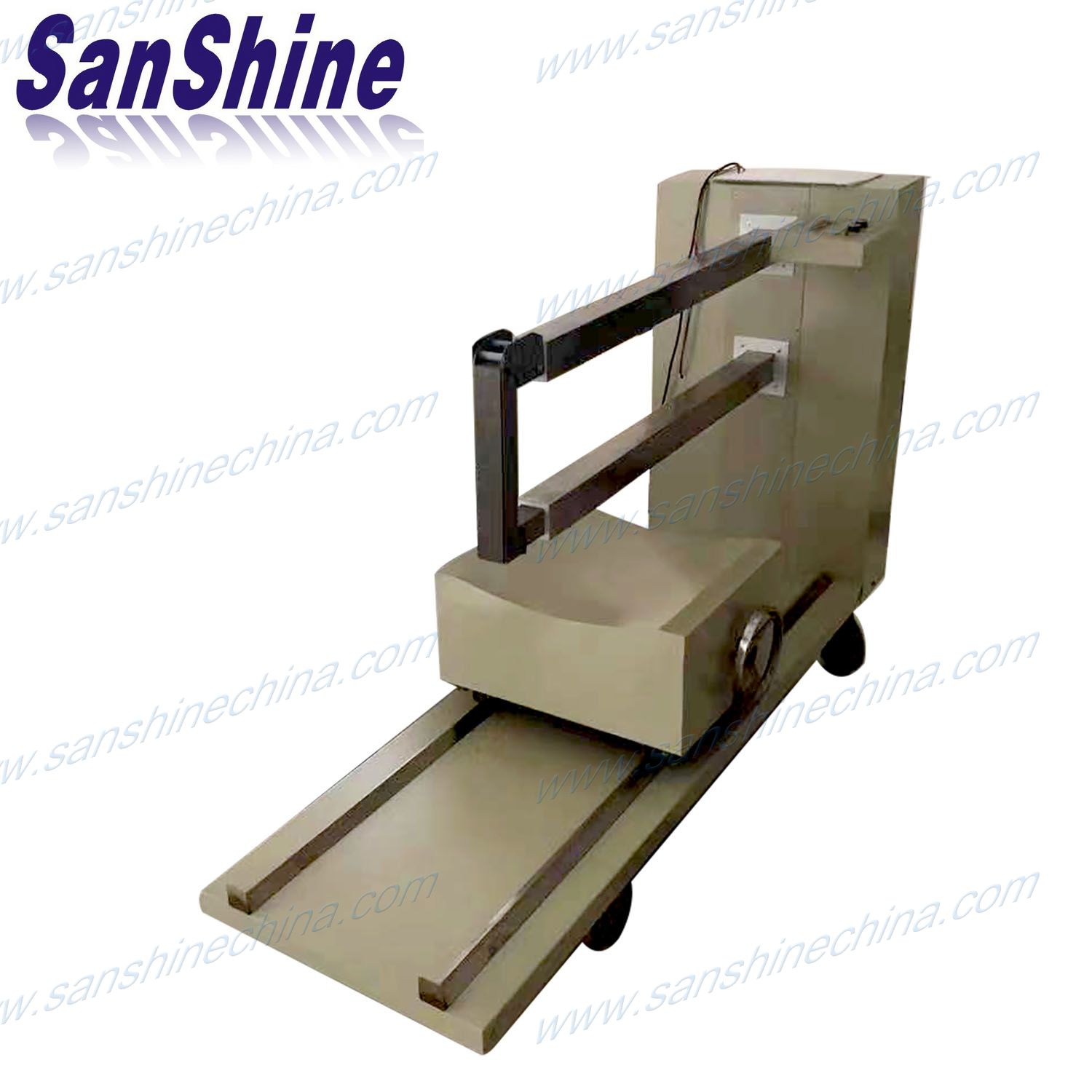

    The big electric transformer generator motor reactor pump coil turn tester (SS-BT1500) is used for testing the turns number of the various huge winding coils. So that can check and make sure the coil turns are correct after winding processing. This big winding coil turns tester( SS-BT1500) is named reactor turn detector also which used for measuring the turns number of the super big winding coils. Such as: large generator winding turns, three phase large power electric transformer winding turns, huge mortor winding turns, huge inductor winding turns, huge reactor coil turns, huge pump motor coil turns, etc..

    Feature :

    1. CPU control and digital display.

    2. Operation easy, measuring automatically, no need switch the measurment range.

    3. Accuracy: 0.1%.

    4. 5 digits counts display.

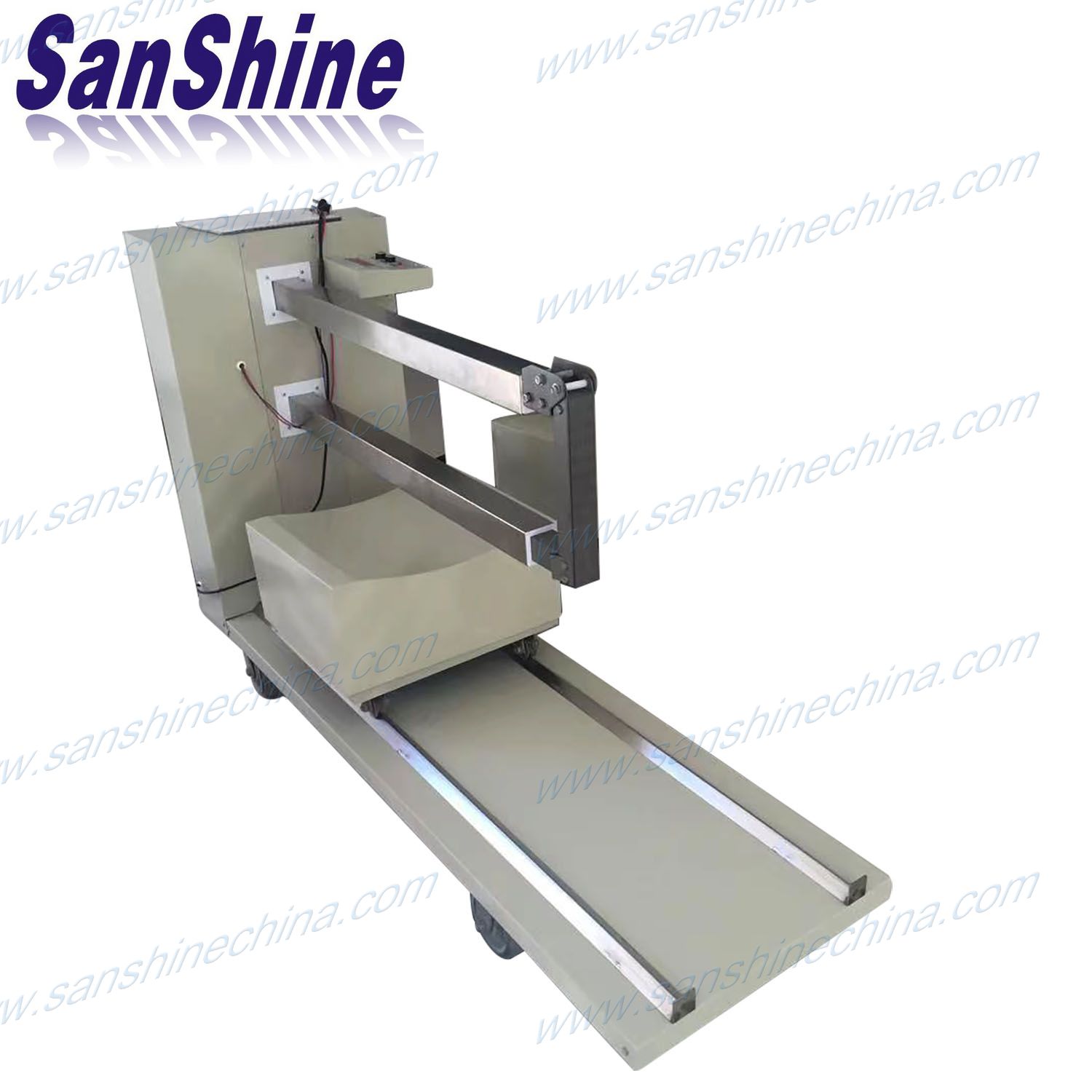

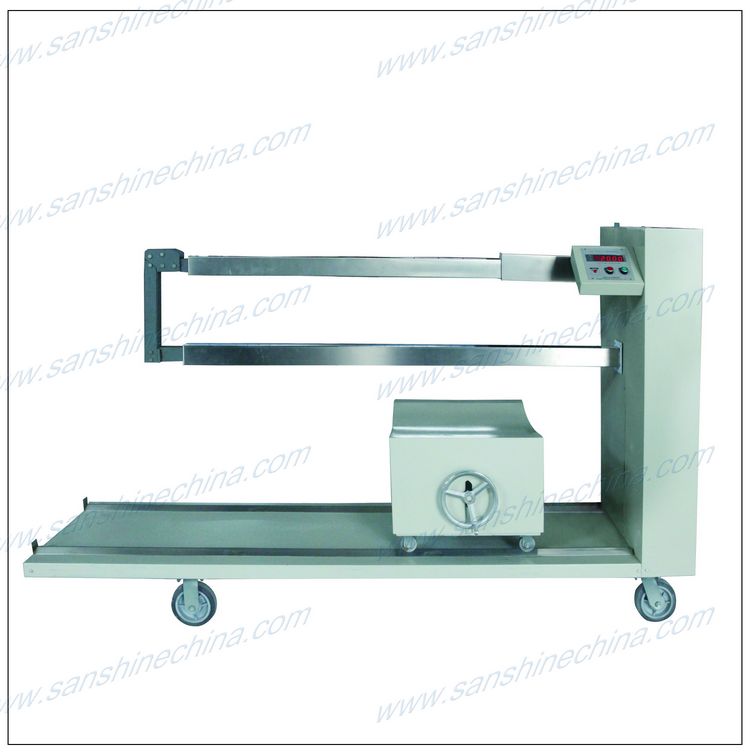

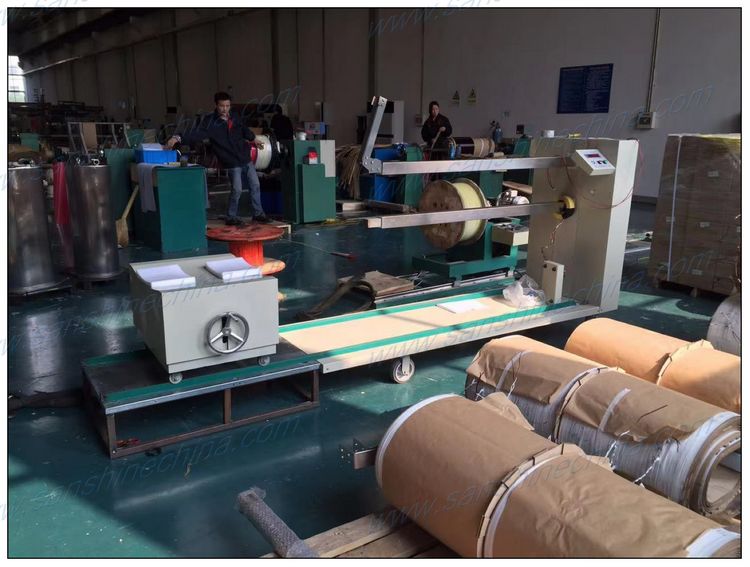

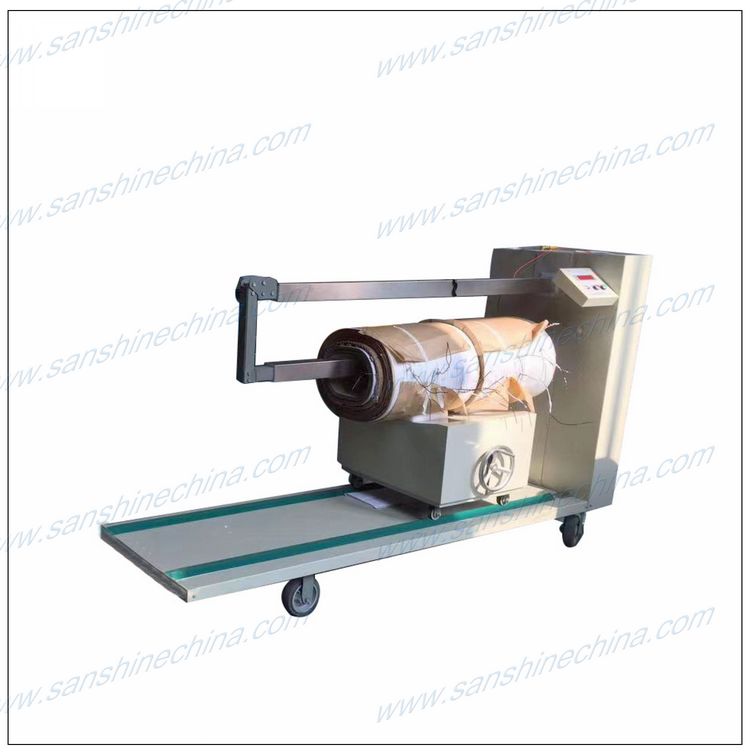

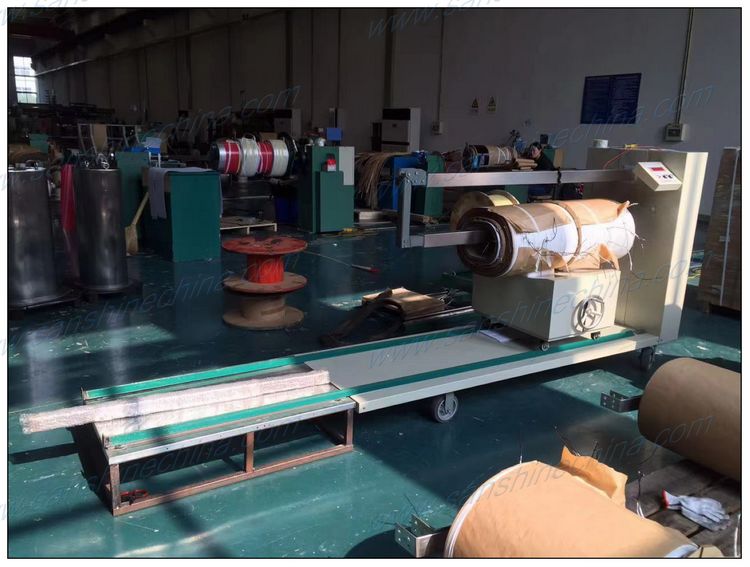

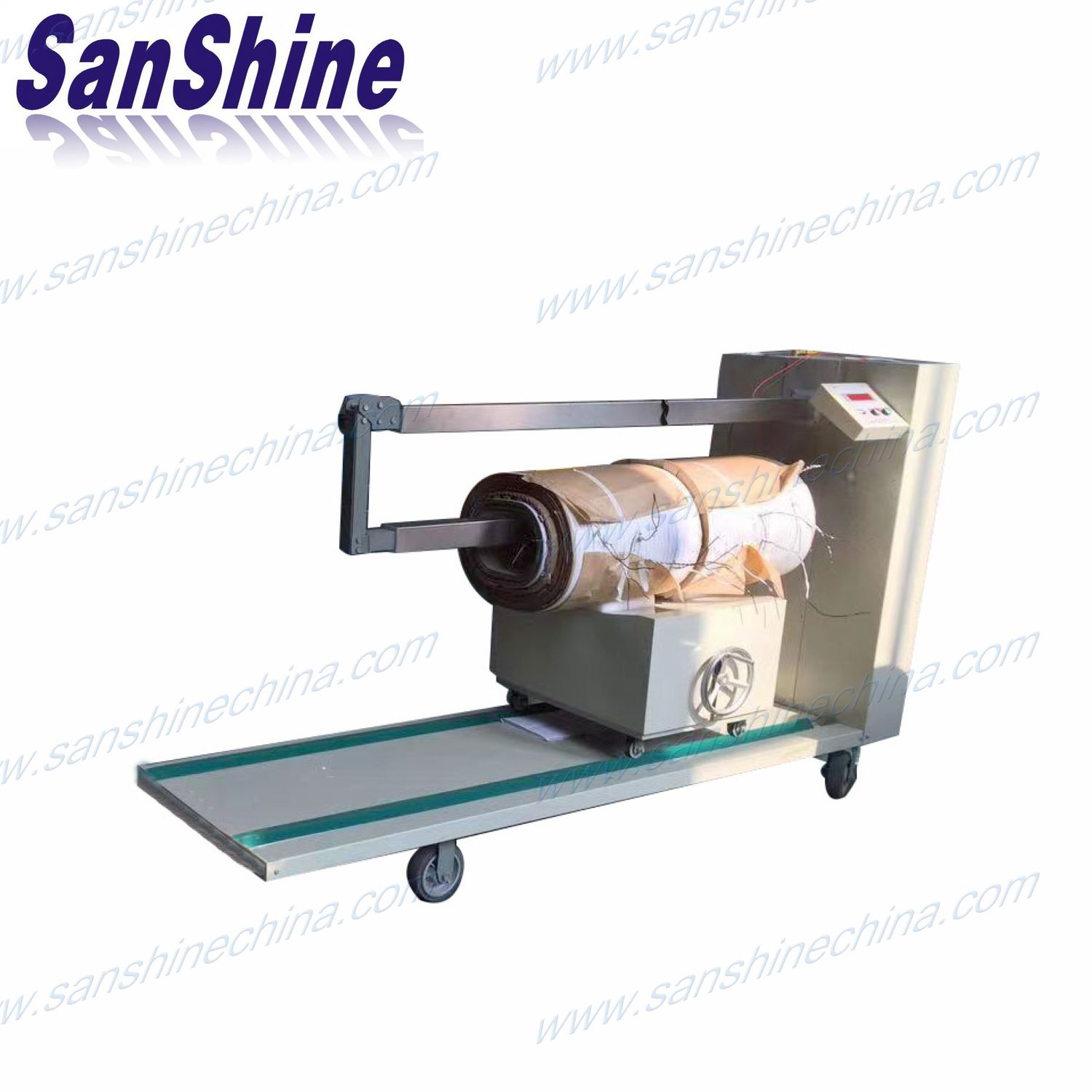

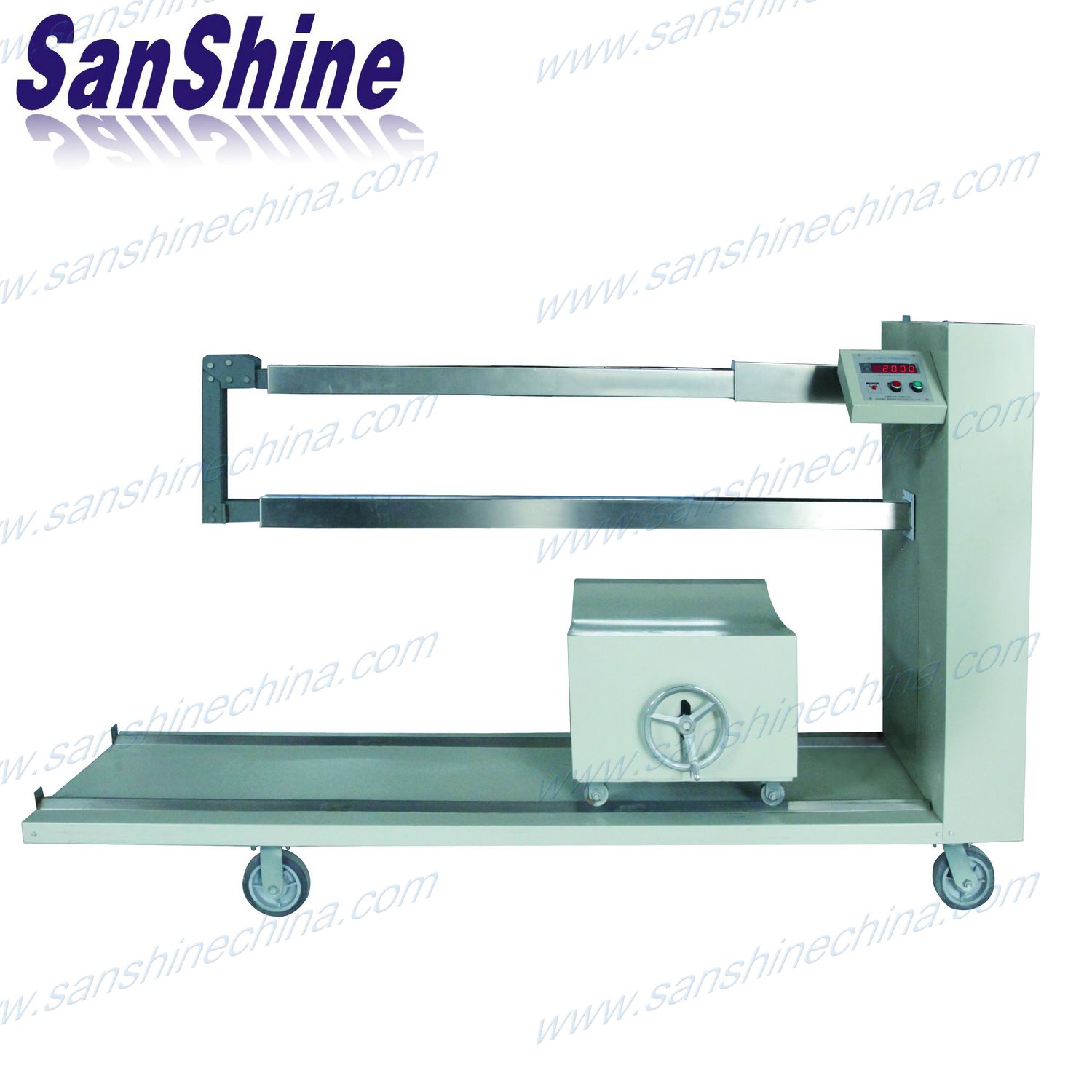

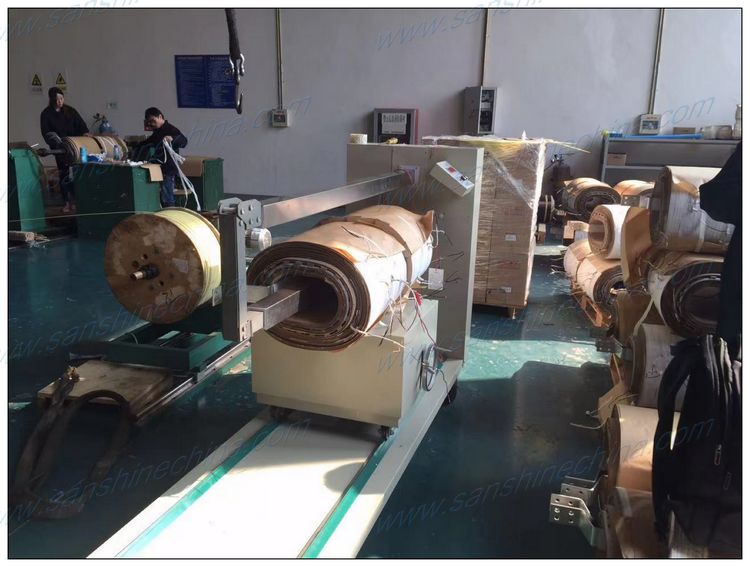

    5. Rail type trolley to load the heavy huge winding coil for testing.

    6. The wire turns shorting detecting function can be customized by request.

    Specification :

    ModelSS-BT1000SS-BT1500SS-BT2000SS-BT2500
    Coil inner diameterφ>100mm
    Coil outside diameterφ<350mmφ<450mm
    Coil height(length)H<800mmH<1300mmH<1800mmH<2300mm
    Testing  sensor bar size80X80mm
    Coil turns range0~16000T
    Testing accuracy(tolerance)0.1%accuracy is 0.2% if the outer diameter of the measured coil exceeds the specified range.
    Testing speed3 Seconds /time
    Tester measurement1700mm x 550mm x 1100mm
    Tester weightabout 120Kgs
