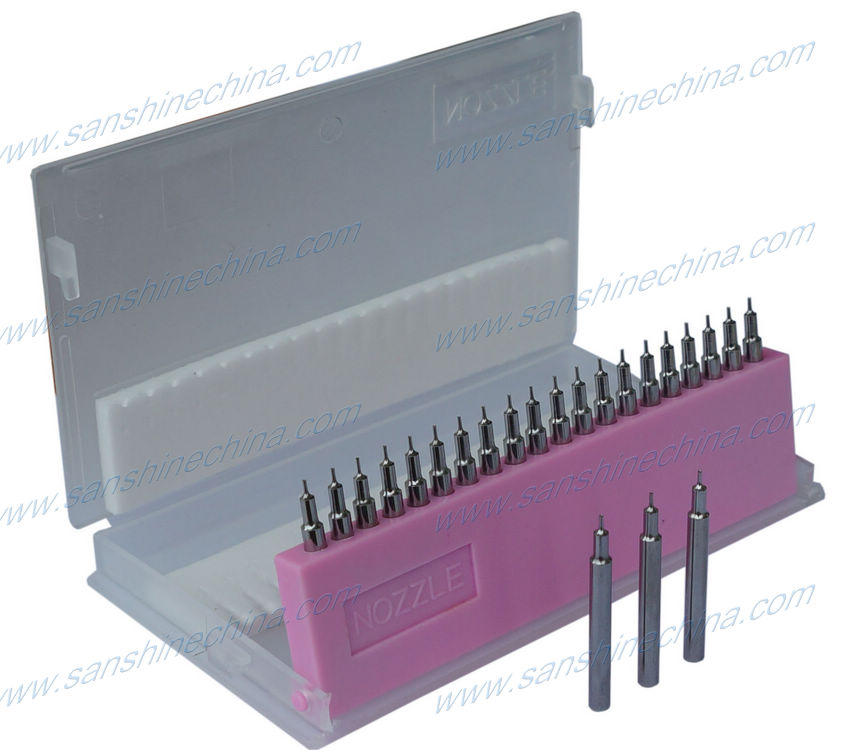

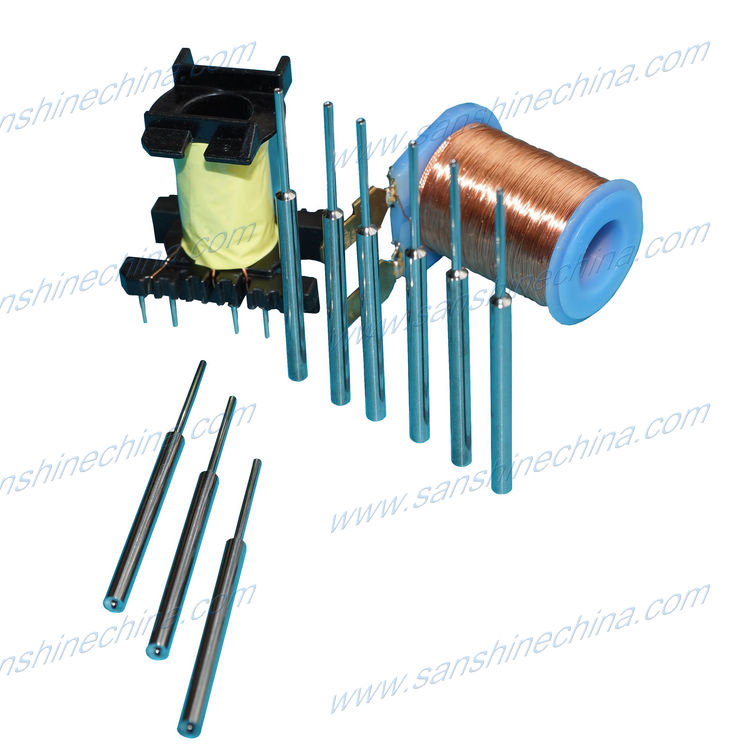

Tungsten carbide coil winding nozzle
Product 2/3  Coil winding nozzle  Tungsten carbide motor coil winding nozzle  Ruby tipped coil winding nozzle
  • Tungsten carbide coil winding nozzle
  • Tungsten carbide coil winding nozzle
  • Tungsten carbide coil winding nozzle

    Tungsten carbide coil winding nozzle working video in user's factory



    Tungsten carbide coil winding nozzle working video in user's factory(need enter password)

    (Server in China)


    Description :

    The tungsten carbide wire guide nozzles(Coil winding nozzles)used in coil winding machines to guide the wire to wind on the bobbin, on the pins and Etc. for the manufacture of coils, motors,transformers,relays,contactor,inductance and sensors in automotive,telecoms,electric and electronic applications. Also we use tungsten carbide to make the tungsten carbide blasting nozzles, tungsten carbide spray nozzles according to dimensions drawing.
    Features :
    1.High Wear Resistance
    This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1,000 (HRC 70).
    2.Scratch-Proofing
    Eliminate wire insulation film damage, low friction resistance, stable wire tension. the wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 – 4 micro inches Ra or better, material permit.
    3.Straightness and Stiffness
    Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating ?. In plain terms, the wire should exit from the nozzle concentric to the locating ? to within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
    4.Precise Exit Radii
    Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.
    Specification :

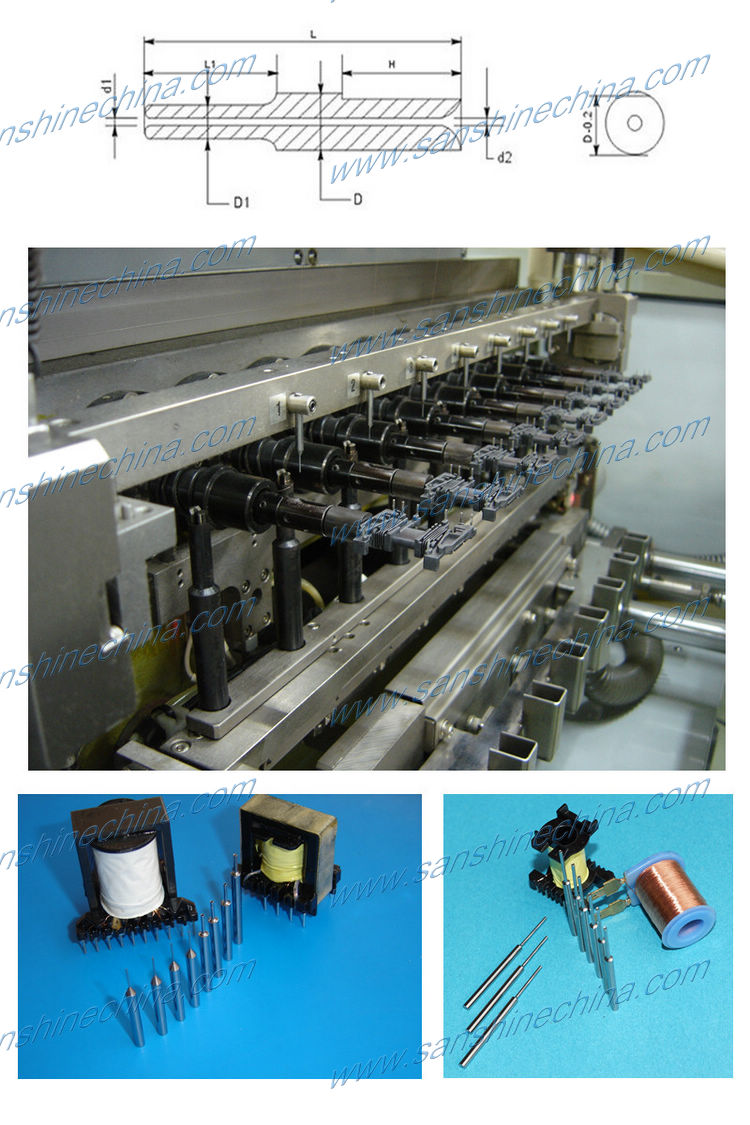

    Be made according to drawing, please refer the drawing picture.
    Measurements :
    Customize available by requested in dimensions drawing, outside diameter is governed by nozzle wall thickness. see the measurements drawing to confirm your nozzles measurements according to your winding machine and coil products or your nozzle samples.
