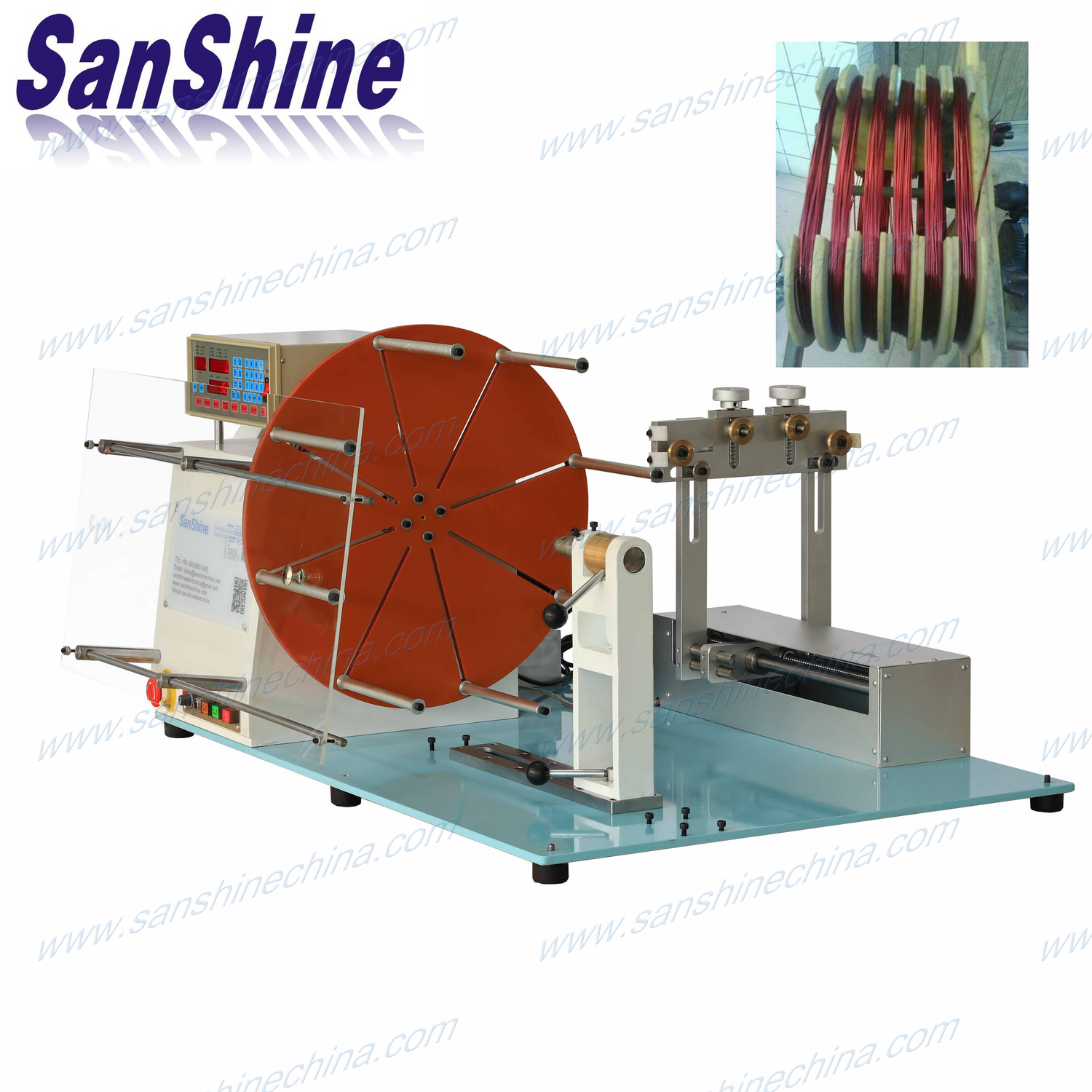

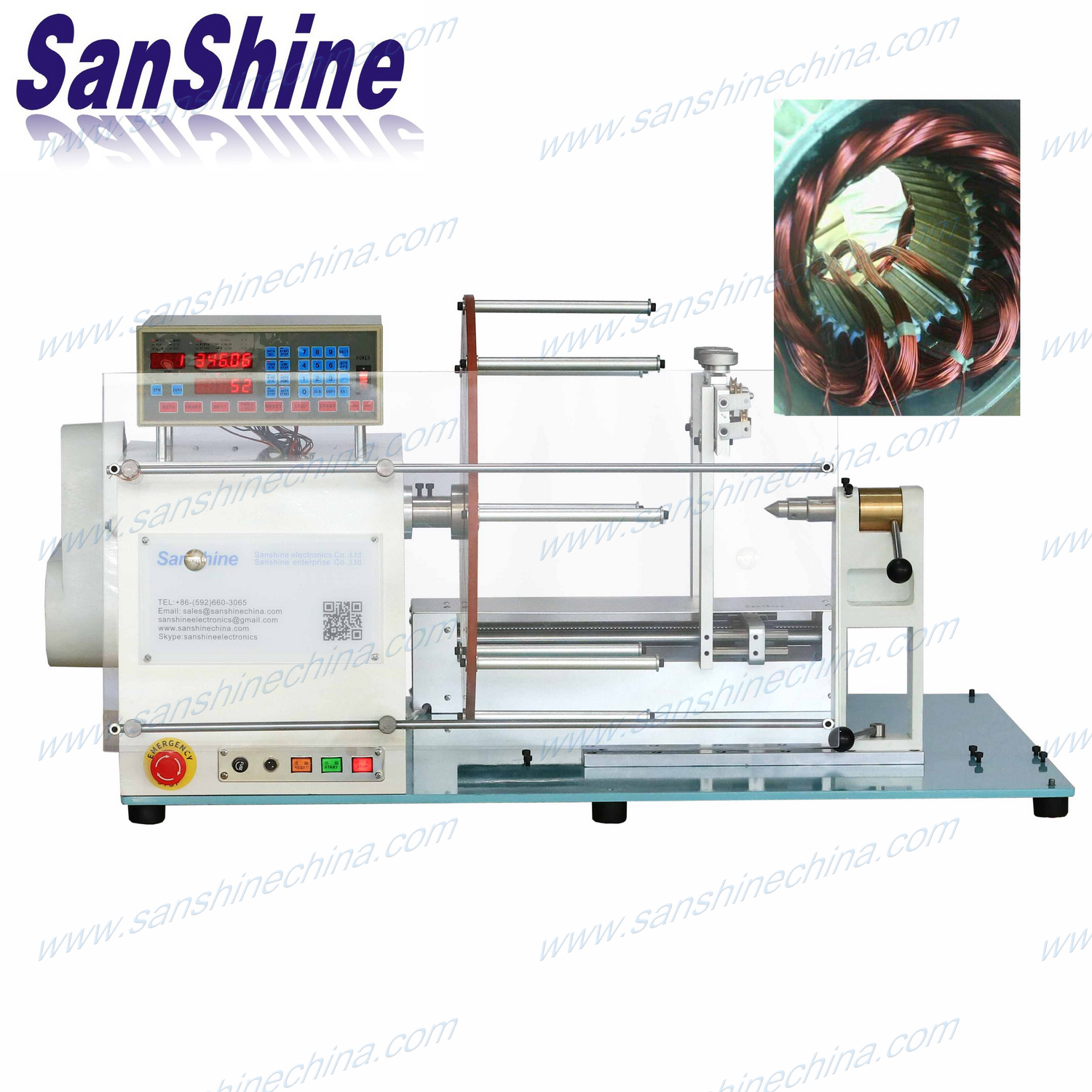

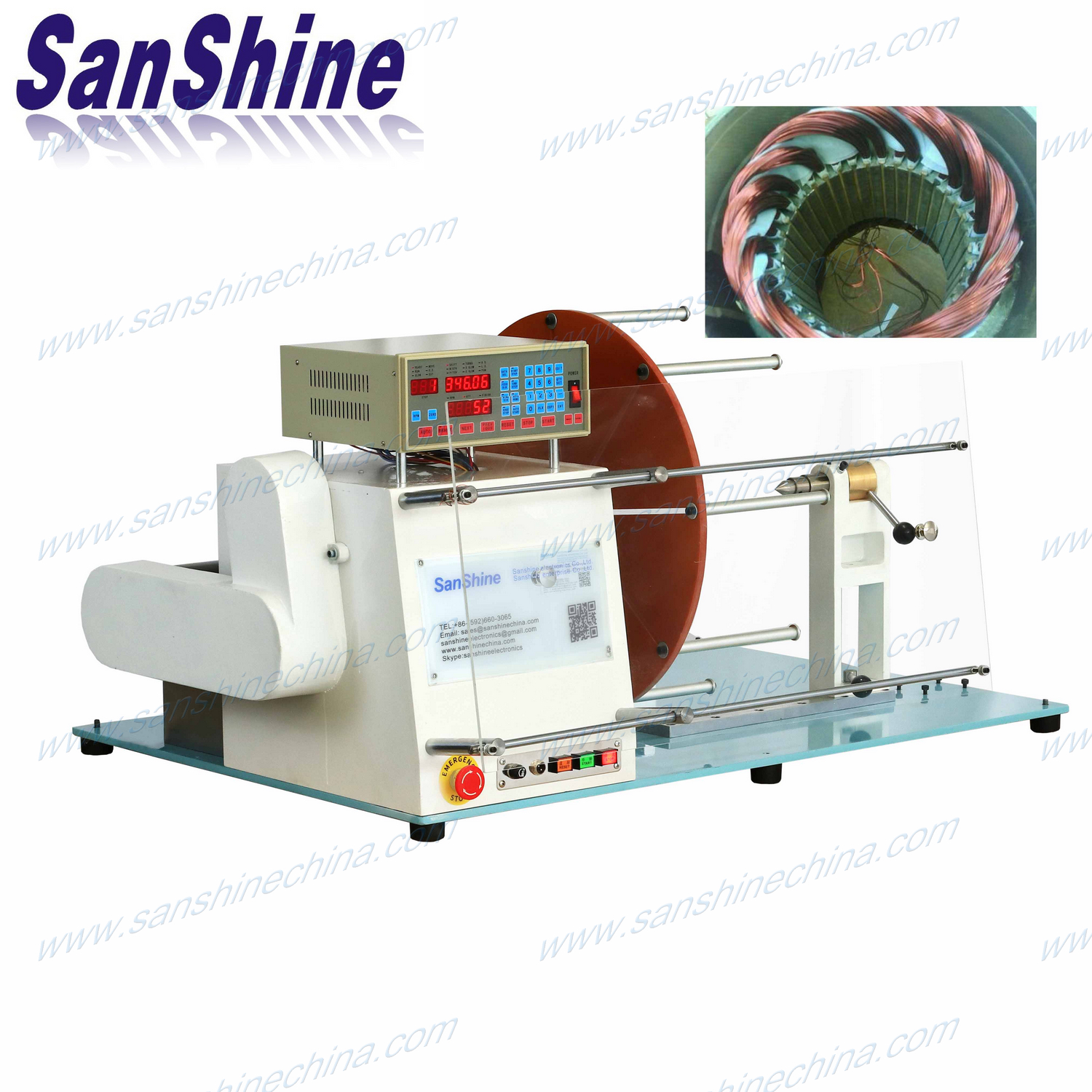

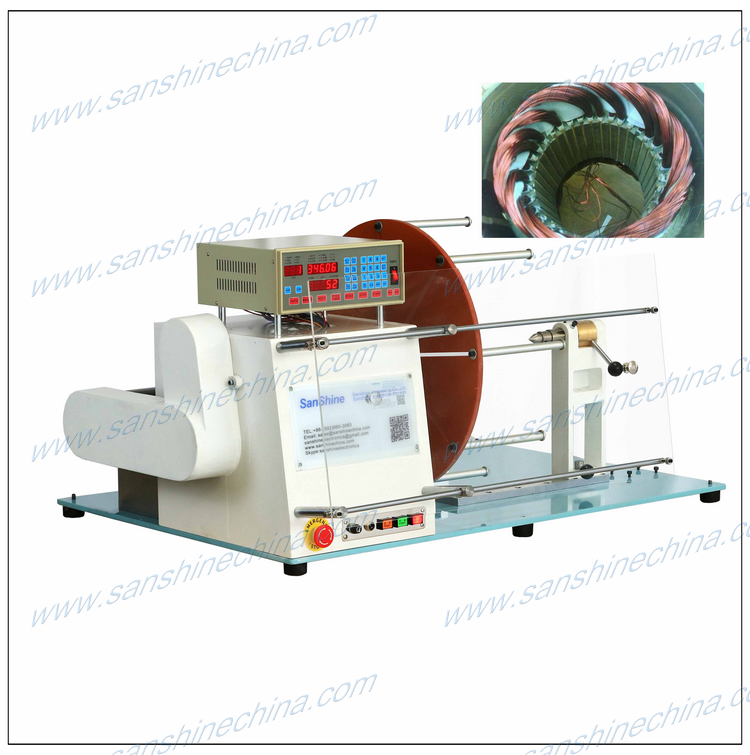

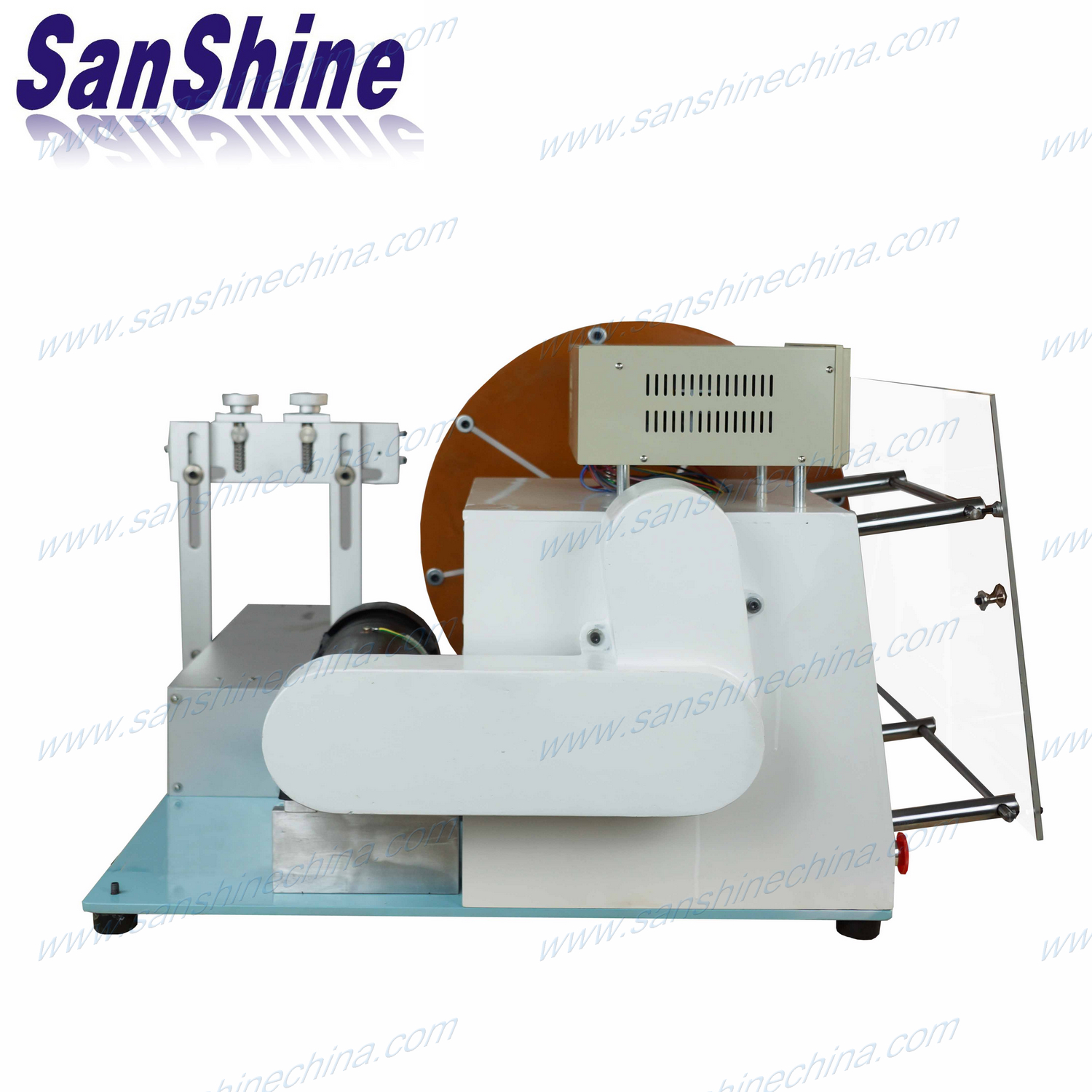

    Product name : Automatic big motor stator generator coil winding machine (SS851BMS)



    coil winding machine" width="" height="" title="submersible pump motor coil winding machine" align="" style="border: 0px; font-family: "sans serif", tahoma, verdana, helvetica; font-size: 12px; white-space: normal;"/>


    Description :

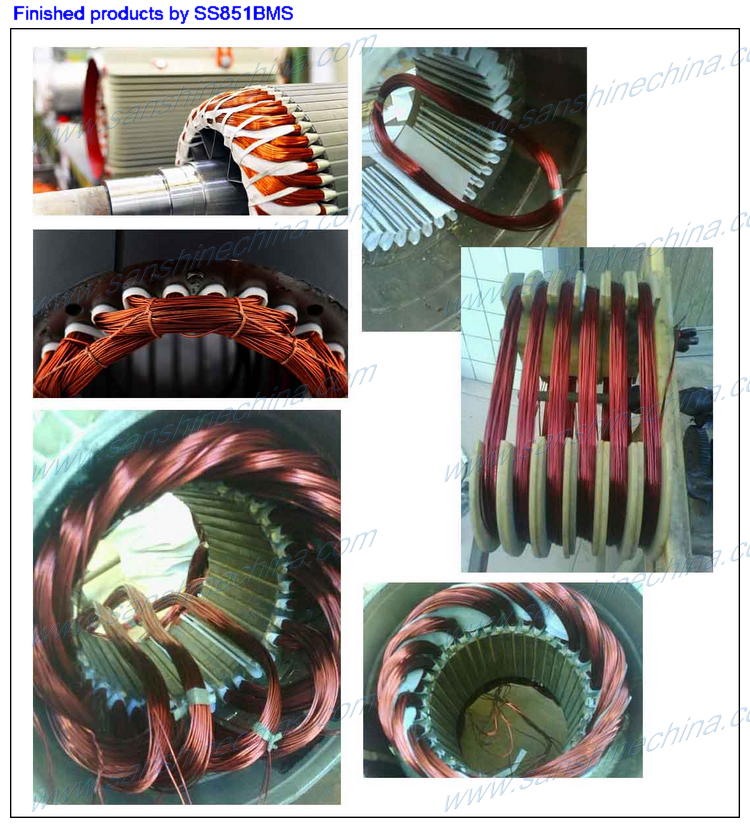

    The automatic big motor stator generator coil winding machine (SS851BMS) is a CNC programmable winding machine with the high torsion DC winding motor. This big motor stator generator coil winding machine (SS851BMS) is the best choice for winding and rewinding the big motor stator coil and the generator coils. The Maximum wire diameter of this winder can reach 3.8mm for the small coil. This big motor stator generator coil winding machine (SS851BMS) can be customized according to coil size by requested.

    Feature :

    1. Microprocessor design, easy for program-setting.

    2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

    3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

    4. Wire passing through ceramic rollers prevent enamel from high temperature.

    5. Multiple spindles winding synchronal for highest efficiency.

    6. Foot-switch connection for better efficiency.

    7. Winding parameters and options can be set.

    Specification :

    ModelSS851BMS
    Spindle Number1
    Wire diameter0.05~3.8mm
    Spread pitch0~9.999mm
    Spread width(traverse)Max. 400mm
    Finished coil diameterMax. 500mm
    Winding motor500W DC Motor
    Spread motor4-Phase Stepper Motor
    Max. speed2500 RPM
    Memory999 Steps
    Power sourceAC220V/110V + 10%, 50/60 Hz
    Dimension(cm)118x94x66
    Net weight110Kgs
