Automatic high torsion thick wire coil winding machine (SS851A)
Product 17/26  Automatic linear coil winding machine  Automatic high torsion electric power transformer coil winding machine (SS810)  Obverse single spindle automatic coil winding machine (SS861A)
  • Automatic high torsion thick wire coil winding machine (SS851A)
  • Automatic high torsion thick wire coil winding machine (SS851A)
  • Automatic high torsion thick wire coil winding machine (SS851A)
  • Automatic high torsion thick wire coil winding machine (SS851A)
  • Automatic high torsion thick wire coil winding machine (SS851A)
  • Automatic high torsion thick wire coil winding machine (SS851A)

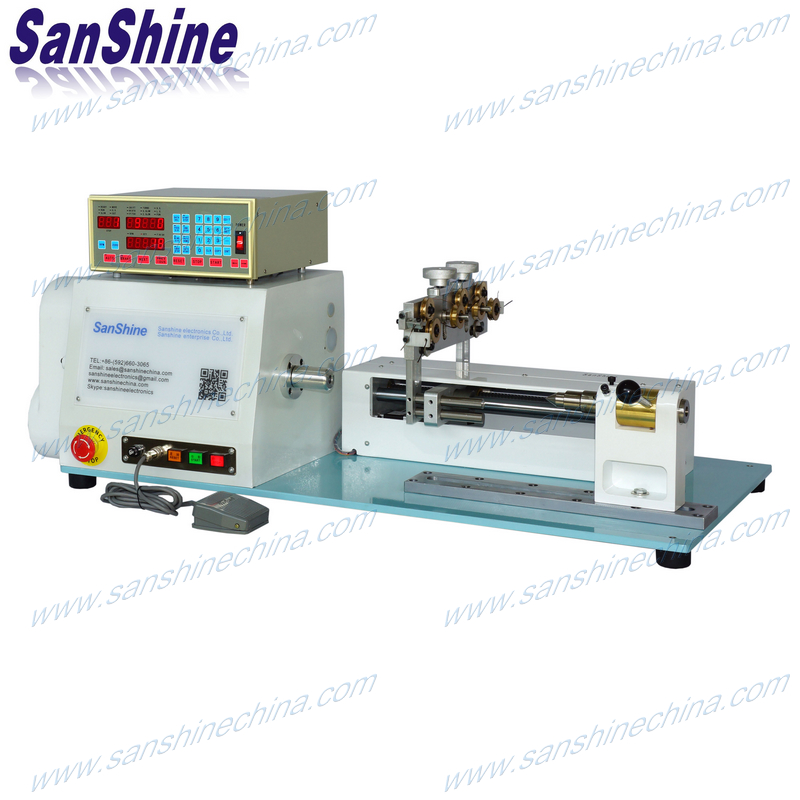

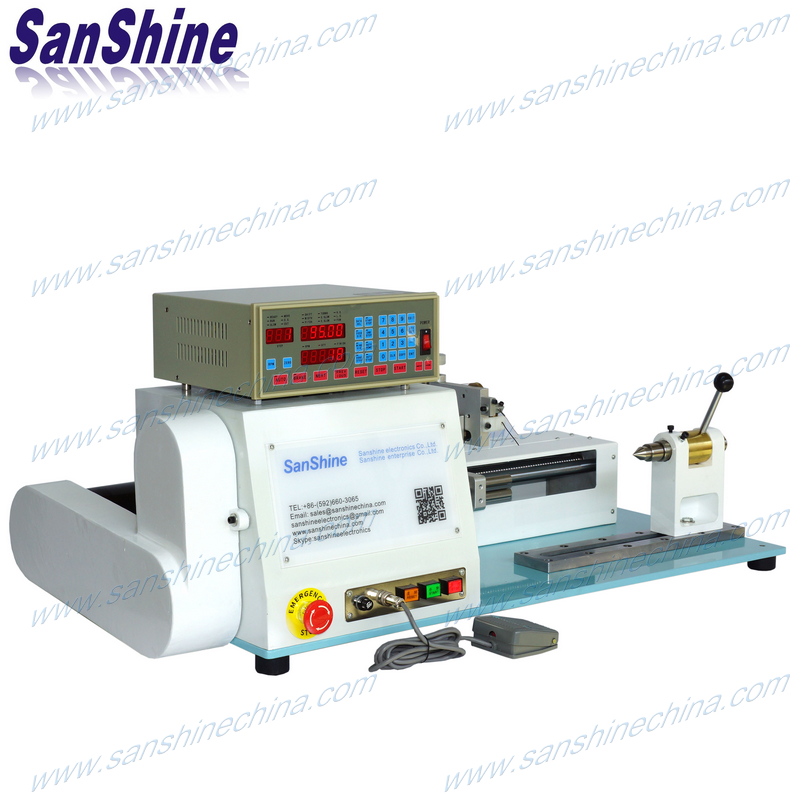

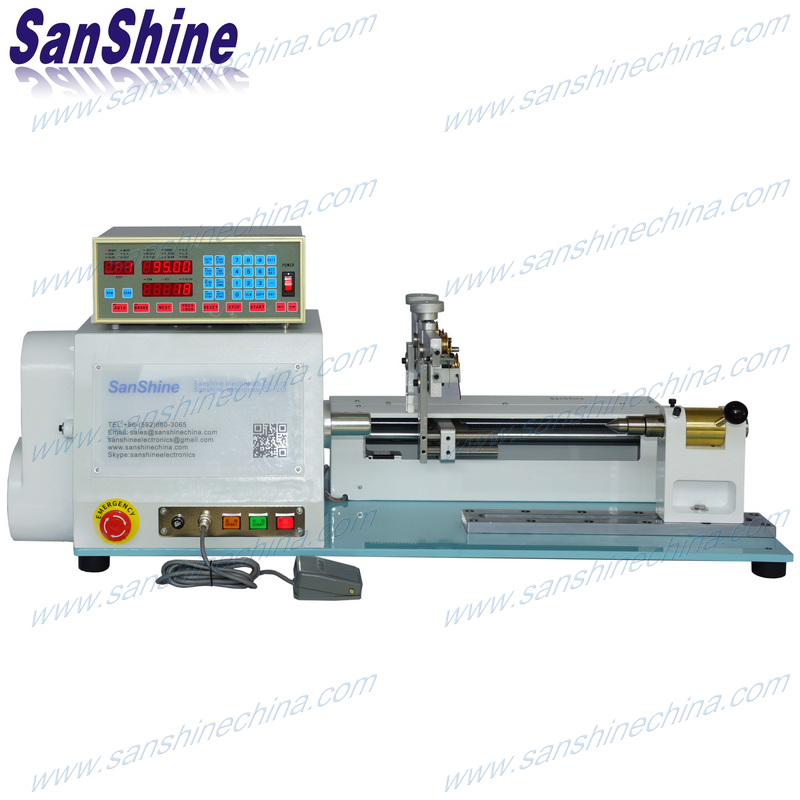

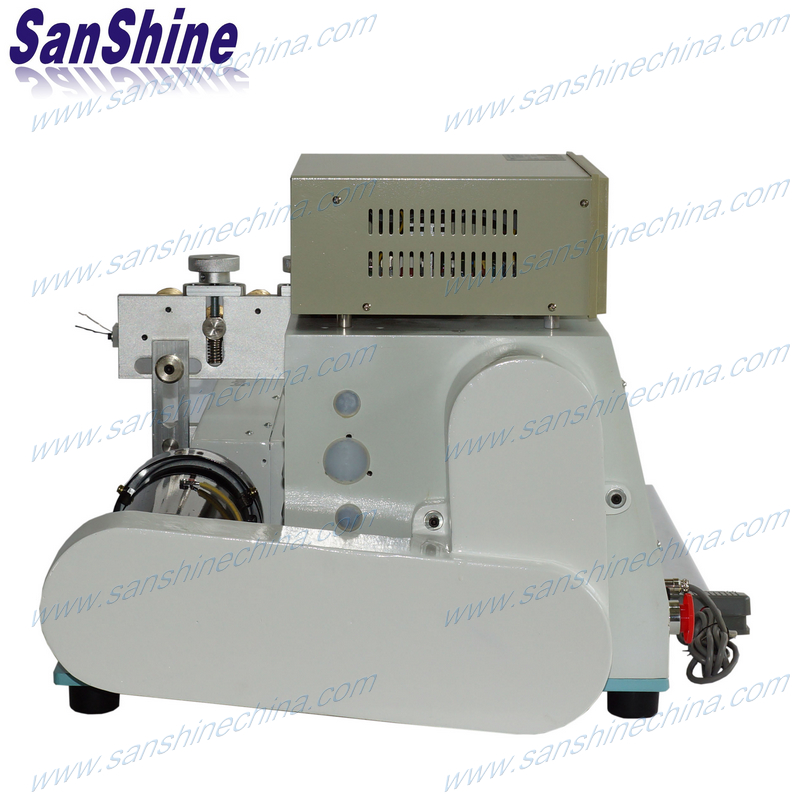

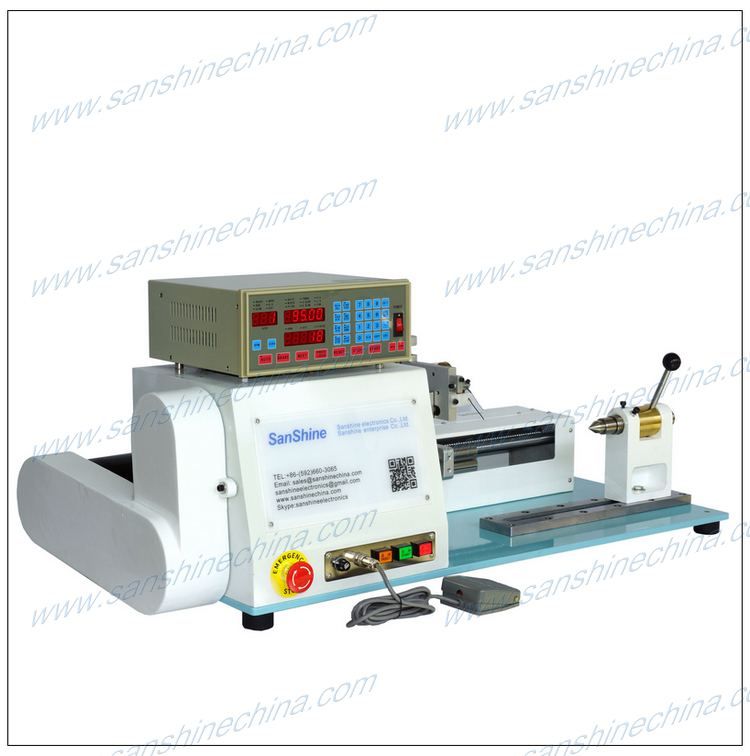

    Product name : Automatic high torsion thick wire coil winding machine (SS851A)



    Description :

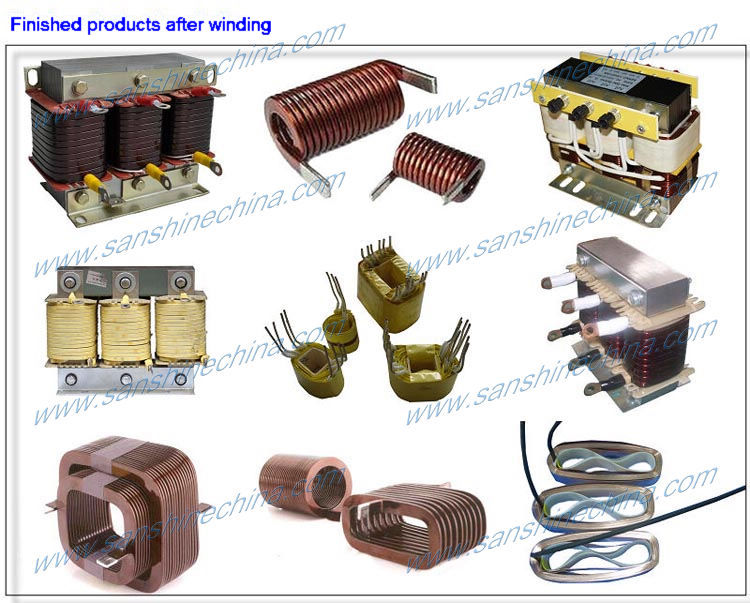

    The SS85X series High-Torsion digital coil winding machine is digital Programmable coil winding machine with 1/2HP DC motor. The Maximum wire size can reach 5.0mm if the finished coil outside diameter less than 55mm. It's the best choice for Secondary winding, reactive coil, electric power transformer and for big coil of thick wire .This series machine can be customized according to coil size by requested. The SS85X series coil winding machines are best choice for winding heavy wire(thick wire and flat wire) transformer,inductor,reactor coil,power transformer,power inductor,etc..

    Feature :

    1. Microprocessor design, easy for program-setting.

    2. Stepper motor driven by constant-current power supply, , high spreading Speed precise winding.

    3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

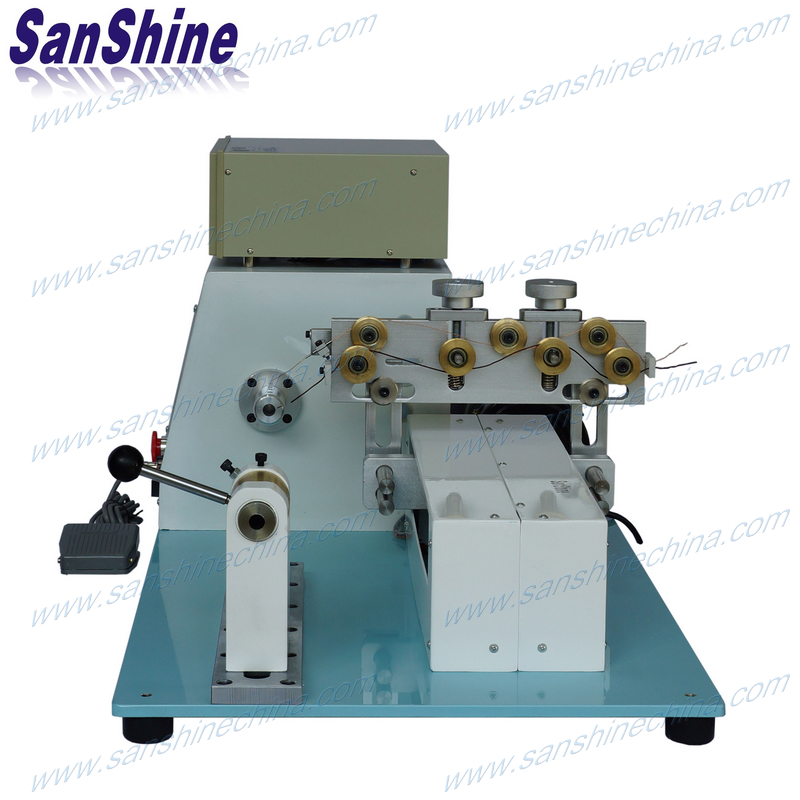

    4. Wire passing through ceramic rollers prevent enamel from high temperature.

    5. Multiple spindles winding synchronal for highest efficiency.

    6. Foot-switch connection for better efficiency.

    7. Winding parameters and options can be set.

    Specification :

    ModelSS-851SS-852SS-851A
    Spindle Number121
    Wire diameter0.05~5.0mm0.05~1.6mm0.05~5.0mm
    Spread pitch0~9.999mm0.001~9.999mm
    Spread width(traverse)230mm230mmStandard 360mm, Customize Max.700mm
    Finished coil diameter200mm110mmMax.200mm
    Winding motor500W DC Motor
    Spread motor4-Phase Stepper Motor
    Max. speed2500 rpm2500 rpm2500 rpm
    Memory999 Steps
    Power sourceAC220V/110V + 10%, 50/60 Hz
    Dimension(cm)70x52x6070x52x60120x52x70
    Net weight42kgs44kgs55kgs
