Bench twin wheel wire stripping machine (SS-SM04)
Product 2/6  Wire stripping machine  Bench rotary insert wire stripping machine (SS-SM01)  Bench twin cone fiberglass wire stripping machine (SS-SM05)
  • Bench twin wheel wire stripping machine (SS-SM04)
  • Bench twin wheel wire stripping machine (SS-SM04)
  • Bench twin wheel wire stripping machine (SS-SM04)


    Product name : Bench twin wheel heavy wire stripping machine (SS-SM04)




    Description：

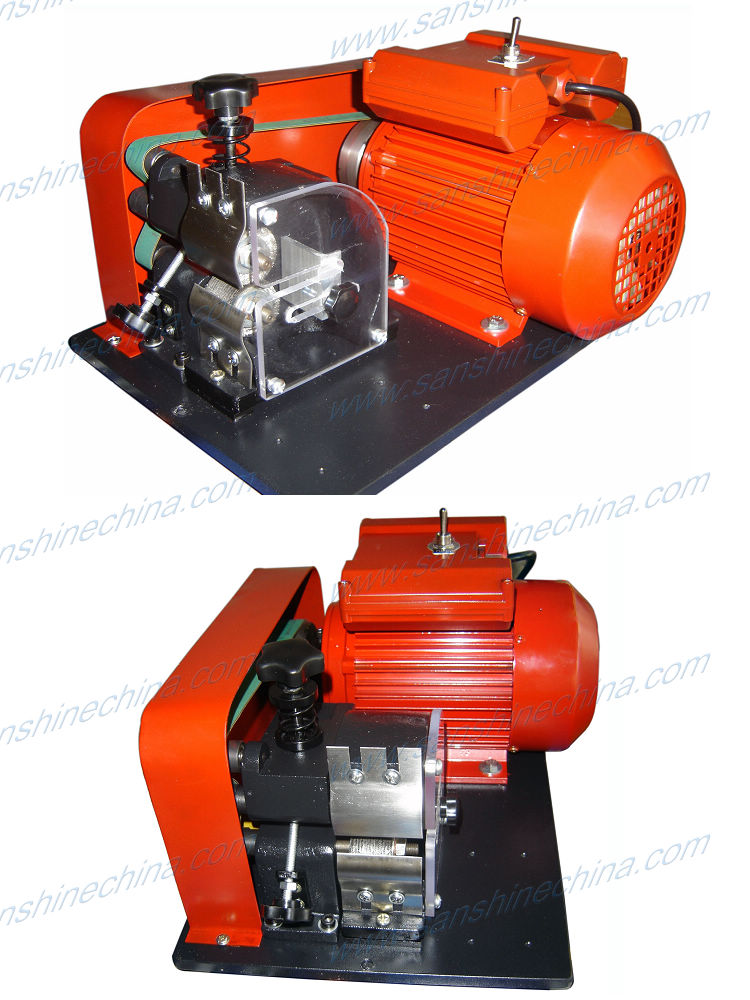

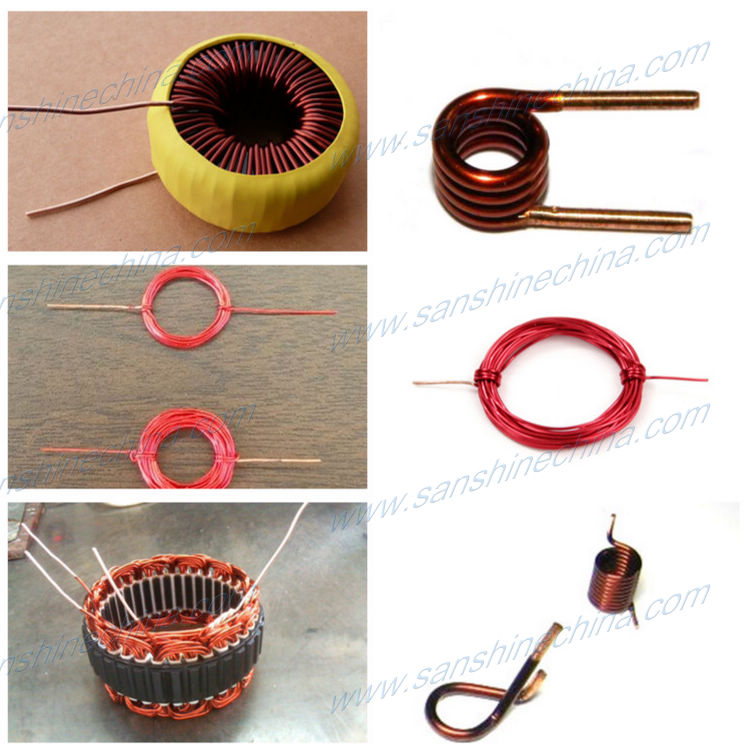

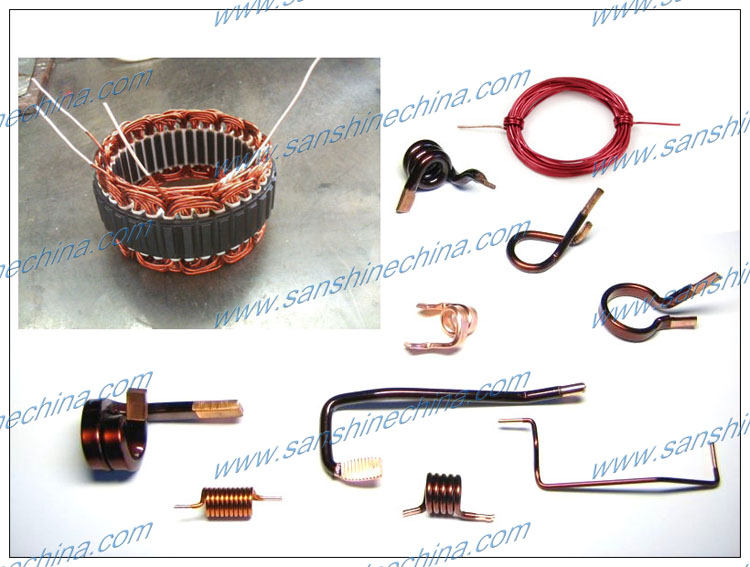

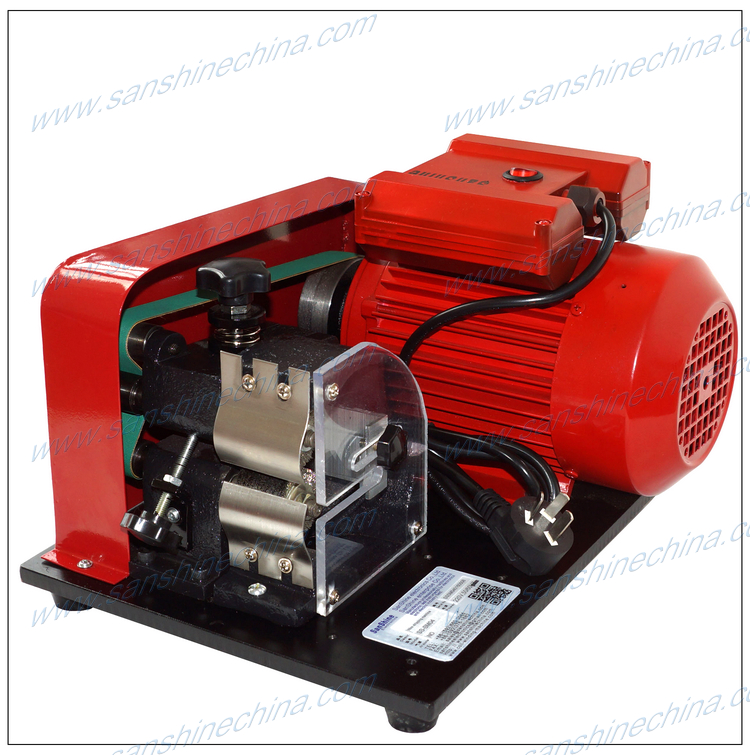

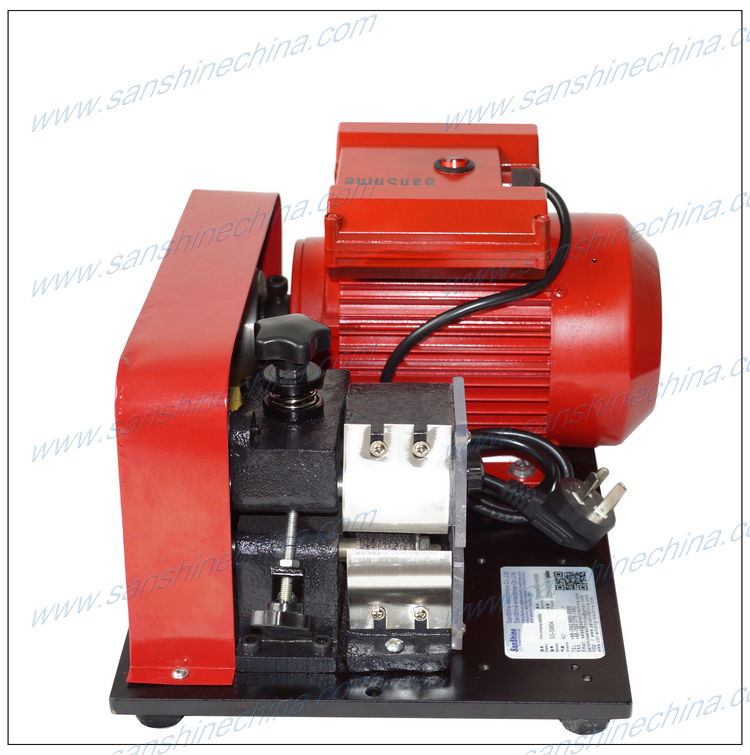

    The (SS-SM04) bench twin wheel wire stripping machine is one table top enameled wire stripping machine, it is constructed from motor, power switch, stripping fiberglass rollers or stripping rollers of fine steel wire, roller base. Is very convenient to use, Which can strip a lot of surface insulated film wires(enamel wire,varnished wire,magnet wire,epoxy wire,polythermaleze wire,etc.)quickly(like as flat wire, twisted wires, roundish wire), can strip many PCS wires at one time, and do not break wire core. It is used for motor manufacture, transformer manufacture, inductor manufacture,coils manufacture,cable manufacture,and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
    Specification :
    Wire diameter range: 0.14~1.3mm(depend on different stripping roller)

    Wire stripping length: Max. 85mm.
    Power source: 220V/50Hz.
    Power: 370W
    Rotation speed: 2800r/min
    Weight: 30Kg.
