    Product name : Bobbin winding Coil turns tester (SS108A series)



    Description :
    This (SS108A series) bobbin winding coil turns testers are used to test various coil of turns. Such as: Generator winding turns, transformer winding turns, mortor winding turns, inductor winding turns, contactor winding turns,relay winding turns, sparking winding turns,ignition winding turns,speaker voice coil,etc..
    Feature :
    1. CPU control and digital display.
    2. Operation easy, don't need switch the range, Auto. Testing.
    3. Accuracy: 02%.
    4. 5 digital counts display.

    Specification :

    Model SS108A-4 SS108A-6 SS108A-10 SS108A-10 SS108A-10 SS108A-10 SS108A-10 SS108A-X

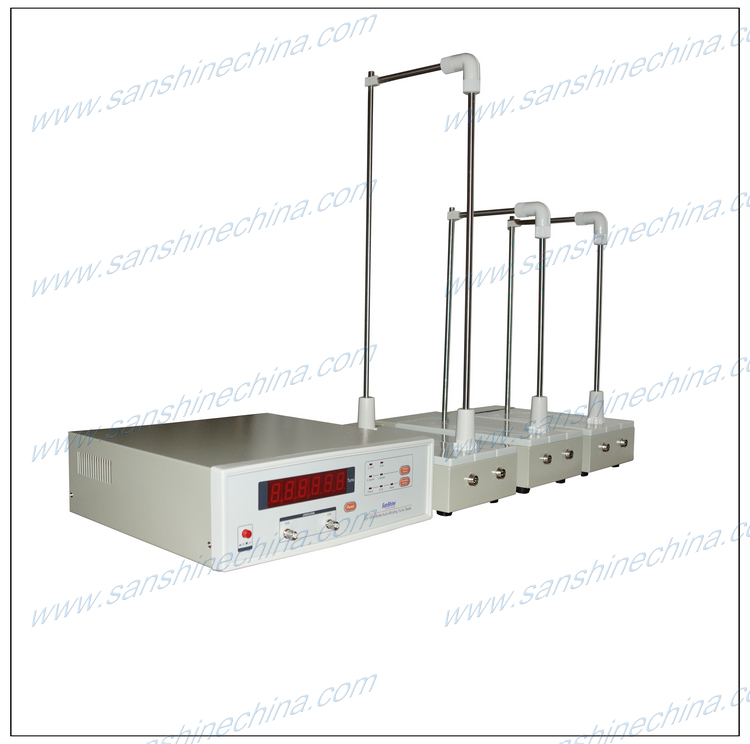

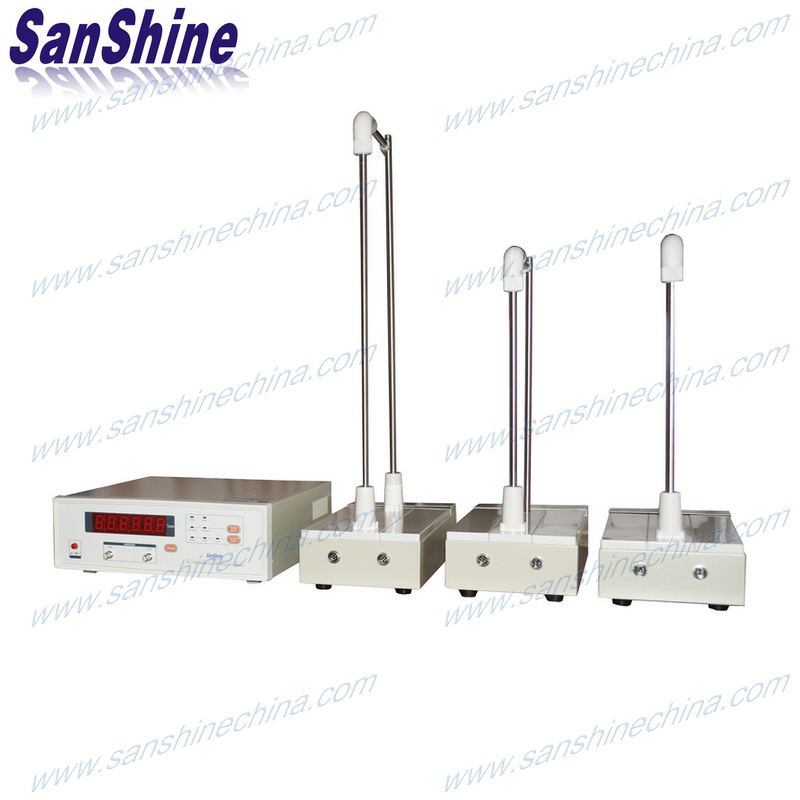

    Testing rod size of testing platform(rod diameter*rod height* rode center distance mm)Φ 4*H150*130Φ 6*H150*130Φ 10*H150*130Φ 10*H250*180Φ 10*H350*180Φ 10*H450*180

    Φ 10*H550

    *180

    speciall testing platform size can be customized.
    Coil inside diameter > 4mm > 6mm >10mm >10mm >10mm > 10m >10mm
    Coil outside diameter< 120mm< 170mm
    Coil height< 110mm< 210mm< 310mm< 410mm< 510mm
    Coil turns range 0 ~ 60000T
    Testing accuracy 0~300T±0T, 300~500T±1T, 500~20000T±0.2%, 20000~60000±0.5%
    Testing speed fast 3 Measurements /s, slow 1.2 Mea. /s
    Weight about 11KG depend on different testing platform
    Tester measurement 370*220* 110mm
