Description :

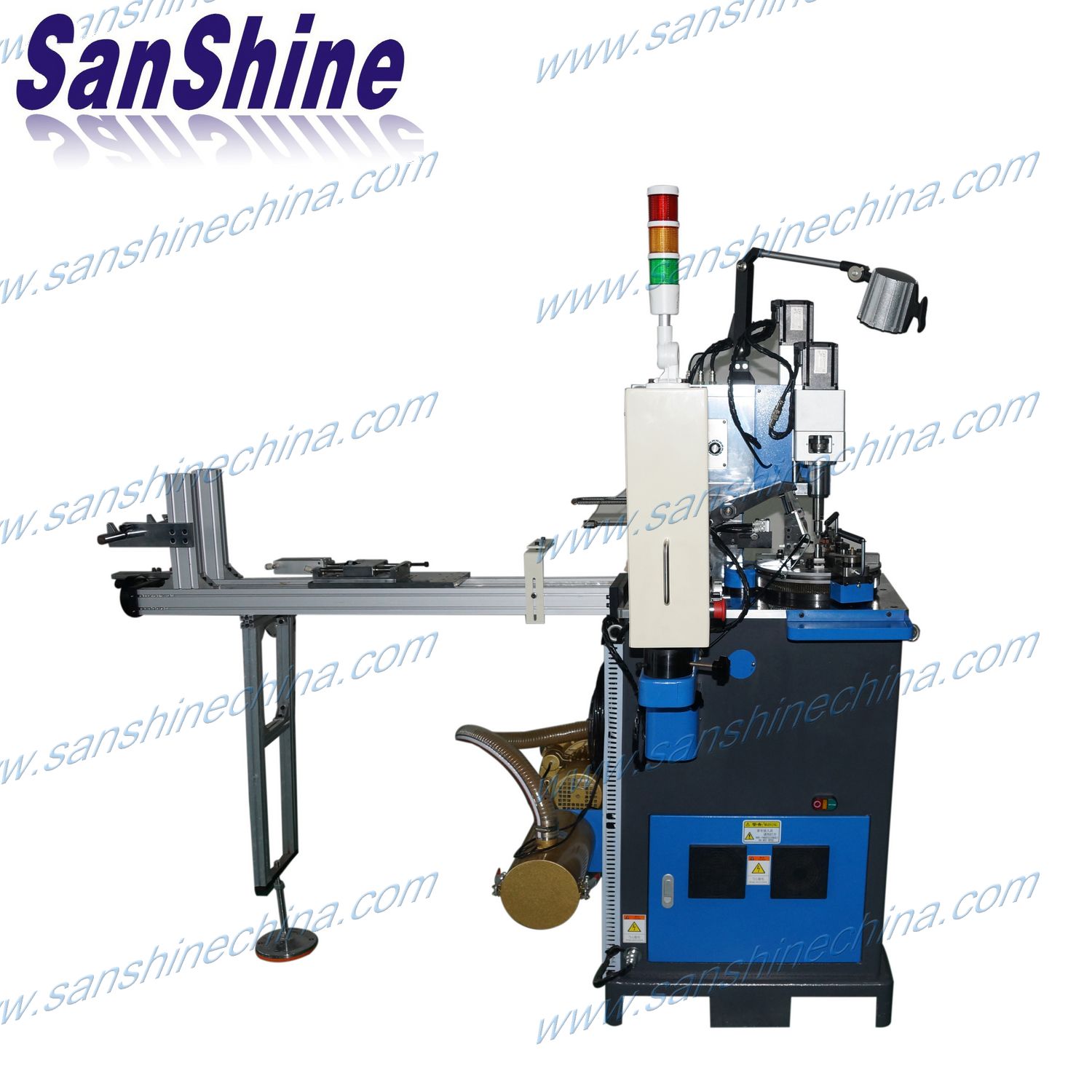

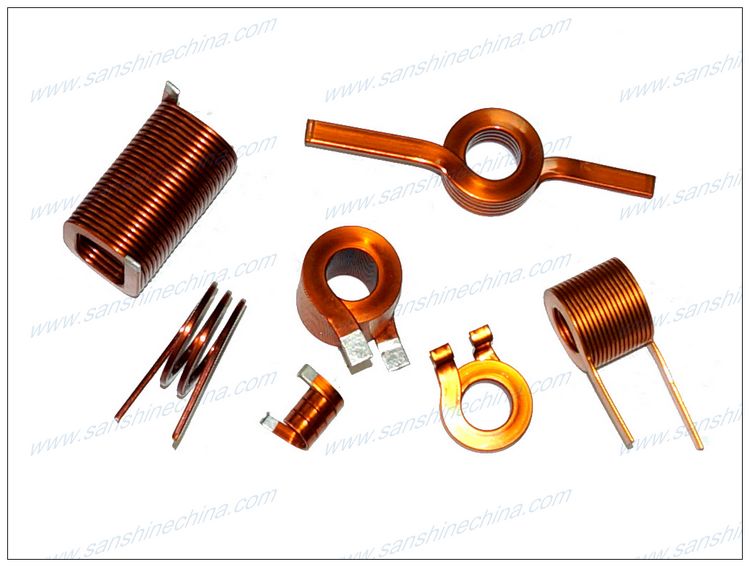

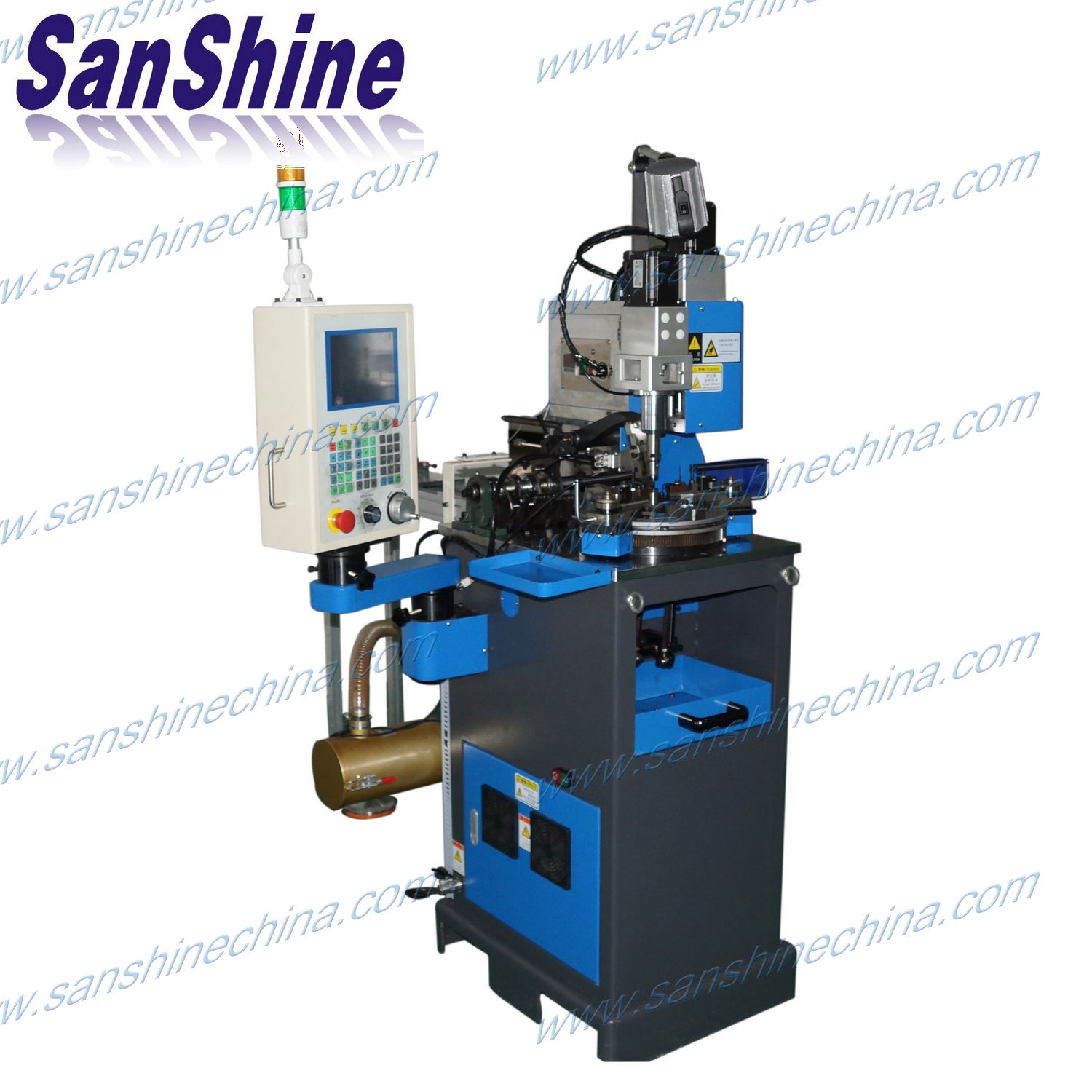

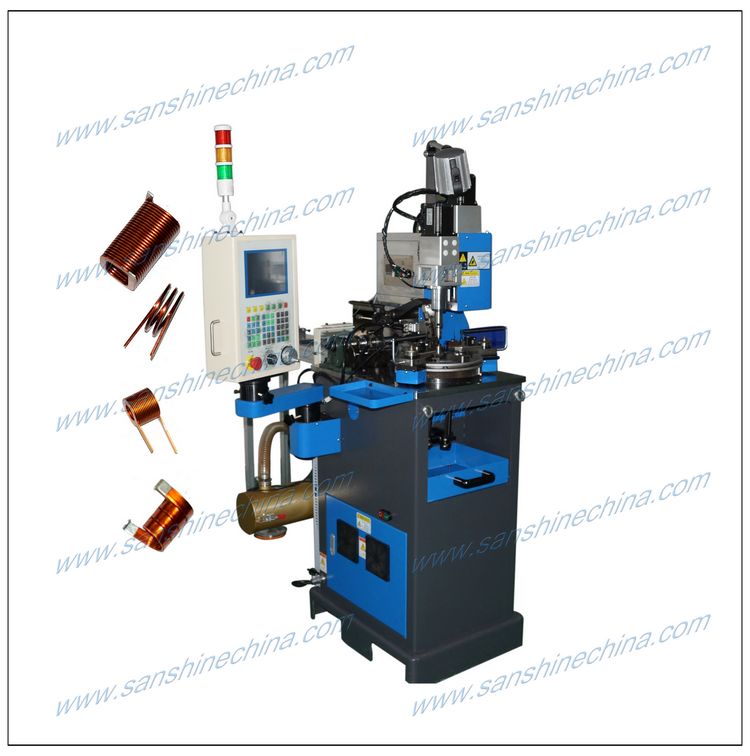

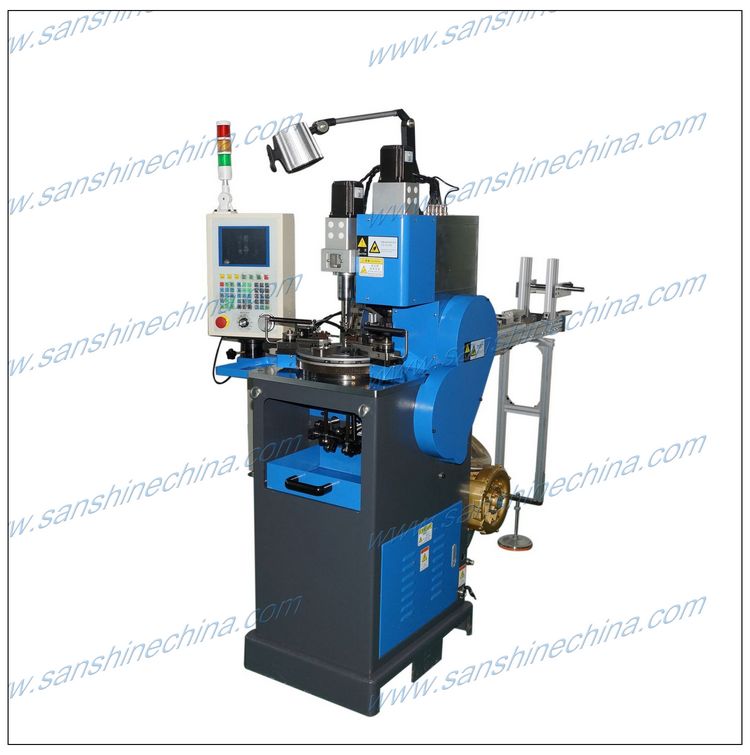

The (SS-RFAC01) is one cam type fully automatic round flat wire air coil winding machine winding robot WITHOUT operator. This winding and stripping robot used for winding the round and flat wire air coils and spring coils without operator. This winding robot can bend and strip the wire terminals (pins) of coil automatically. but some shape of pins can not bend by it. can not strip the flat wire.
Features :
1. Adopting the latest manufacturing technology. servo peeling is more stable, avoided the phenomenon of wire breakage and movement.
2. Optimized mechanical structure designing, adopts Japanese THK brand guiding rail, China Taiwan TBI brand screw bar, Japanese NSK brand bearings, and the gears adopt high-precision grinding gears. The overall mechanical performance and service life of the machine are improved, and repeated positioning tolerance are further reduced.
3. Adopts big LCD display and high-resolution servo motors, the winding angle is more accurate.
4. The winding spindle is developed and produced using the latest technology, and the runout tolerance is further reduced to meet the requirements of various round wire air coils and flat wire air coils.
5. This robot are widely used in electric, new engergy car, electric car, battery chargers, electronics, digital, mobile phones, automobiles, and other industries.
6. 3 to 6 axes can be customized according to customer request.
Specifications :
| Model | SS-RFAC01 |
| Round enamel copper wire diameter range | 0.15mm-2.8mm |
| Flat enamel copper wire diameter range | Thickness : 0.1~1.0mm, Width : 0.6~4.0mm |
| Finished coil inner hole diameter | 1.0 ~ 20mm |
| Lifting axis setting range ( wire spreading ) | 0.01mm-90mm |
| Finished coil length | Max. 45mm |
| Torque handle length | ≤45*50 |
| Camshaft minimum setting value | 0.1° |
| Camshaft maximum setting value | 359.9° |
| The motor power of camshaft (X axis) | 0.9KW |
| Winding spindle setting range ( Y axis ) | 0.1*-359.9° |
| Winding spindle servo motor power ( Y axis ) | 0.75KW |
| Round enamel wire stripping sizes range (flat wire can not be stripped) | Diameter 0.3~2.8mm depend on different size stripping blades, stripping length Max. 50mm ±1 |
| Servo motor power of lifting axis ( Z axis) | 0.75KW |
| Servo motor power of wire stripping system | 0.75KW |
| Machine dimensions (length x width x height) | 1800*1100*1650mm |
| Machine net weight | 500kg |
| Power source input voltage | 220V 50/60Hz or 110V 50/60Hz by request. |
