DC resistance tester (DCSS502BC)
Product 1/1  DC resistance tester
  • DC resistance tester (DCSS502BC)
  • DC resistance tester (DCSS502BC)
  • DC resistance tester (DCSS502BC)
  • DC resistance tester (DCSS502BC)

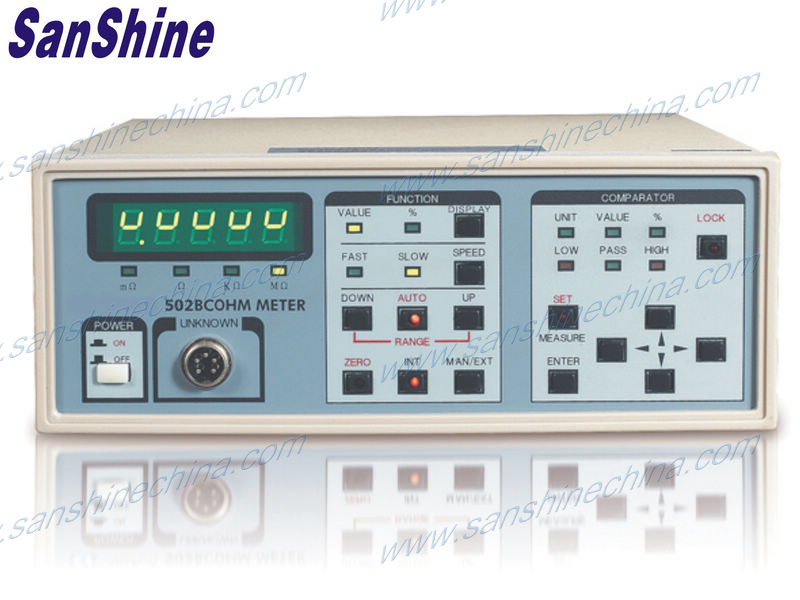

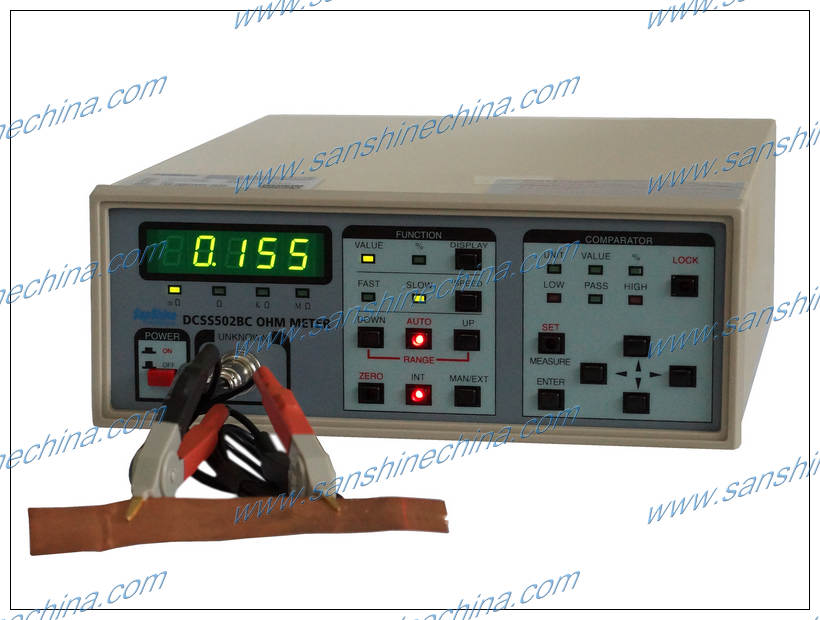

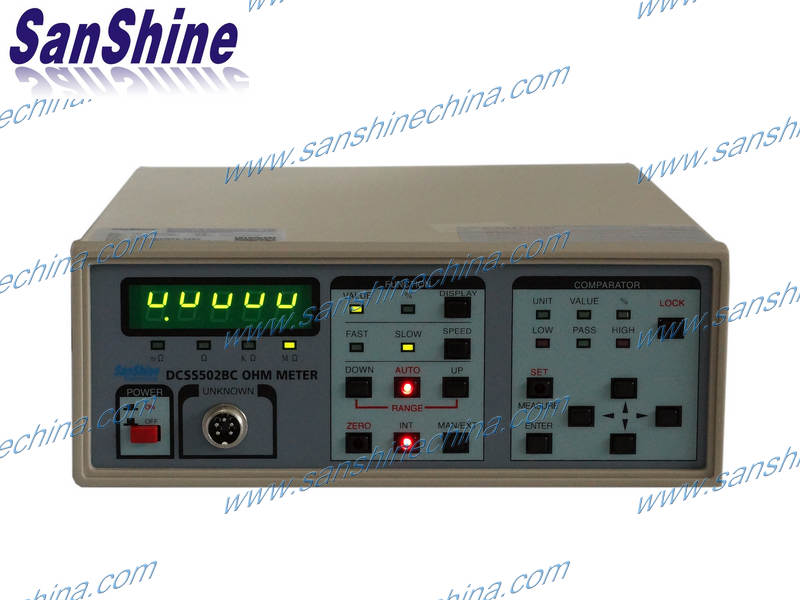

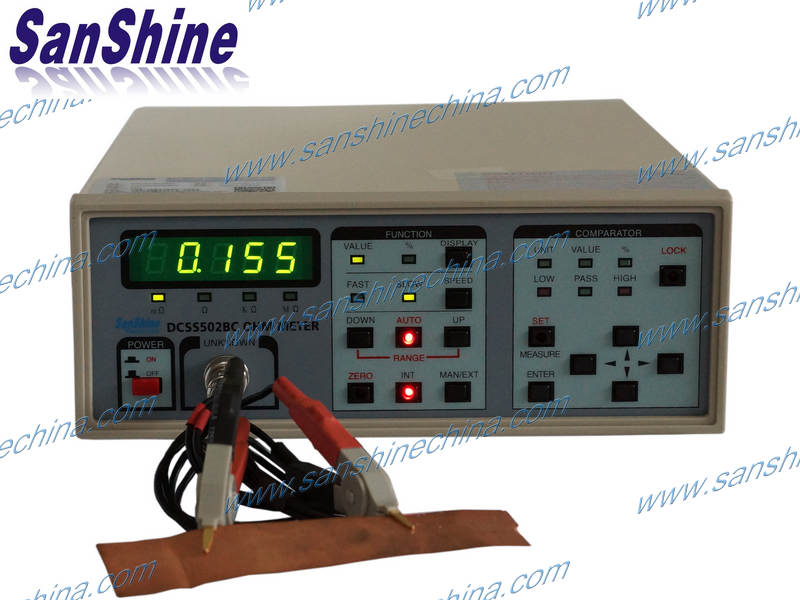

    DC resistance tester (DCSS502BC)

    Description :
    The (DCSS502BC) resistance meter is designed to measure copper resistance of transformers,wires, cables, other conductors and other coil products, etc.. It is widely used of low resistance measurement of switches, heater wires, transformers, relays, motors, electric films and PC circuit boards, wires, cable,etc.. With reliable Good / NG judgment, it is a premier resistance meter for the use in production line or QC department.
    Key features :
    1. Basic Measurement Accuracy: ± 0.05%
    2. Single-function Keys, clear LED Display, easy to operate.
    3. GO/NG judgment .
    Order Items :
    DCSS502BC resistance tester
    Four-terminal Test Clamp (within tester)
    SMD Test Cable (optional)
    Specification :
    Model DCSS502BC
    Measure range
    10uΩ~199.99mΩ ±0.1%±2counts
    200mΩ~1.9999KΩ ±0.05%±1counts
    10uΩ~1.9999MΩ ±0.1%±2counts
    10uΩ~1.9999MΩ ±0.5%±2counts
    Measure Speed
    Fast 11Measurement /S
    Slow 7Meas./S
    Trigger internal, external, manual
    Display 4.5pcs digitals
    Revising function zero
    Automatic judgement pass or fail
    Common specification
    Environment temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH
    Power consuming Max.30W
    Power 90~125V or 190~250V,48HZ~62HZ
    Weight 4Kg
    Meas. (W×H×L ) 270×105× 350mm

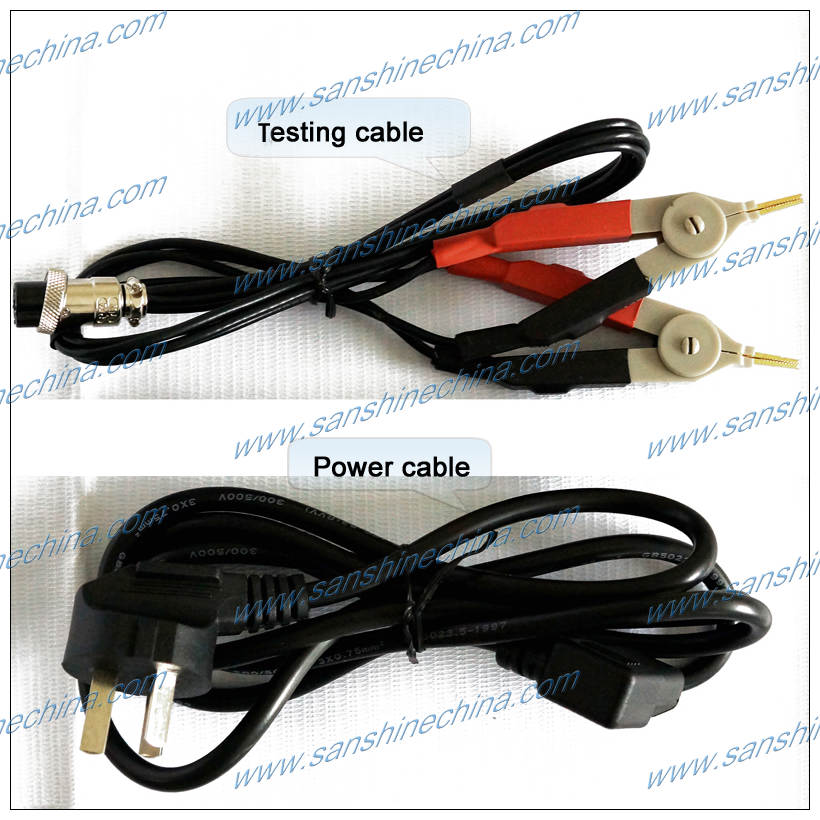

    Testing cable and Power cable of DC resistance tester DCSS502BC:
