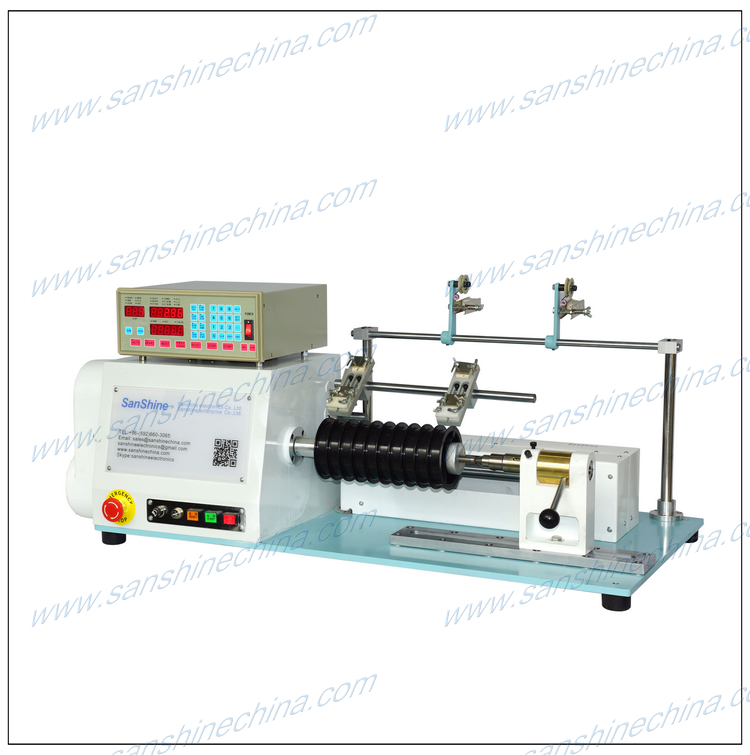

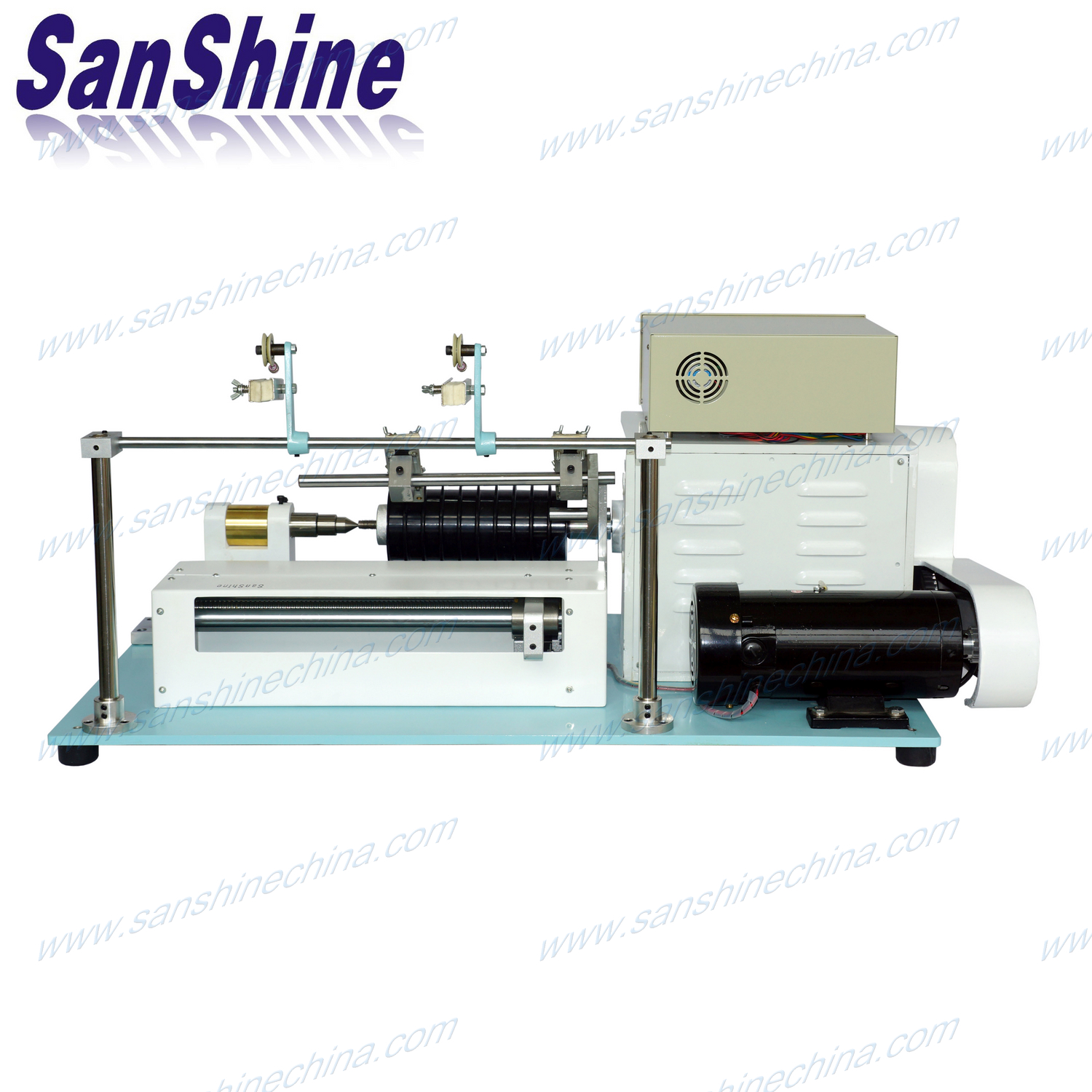

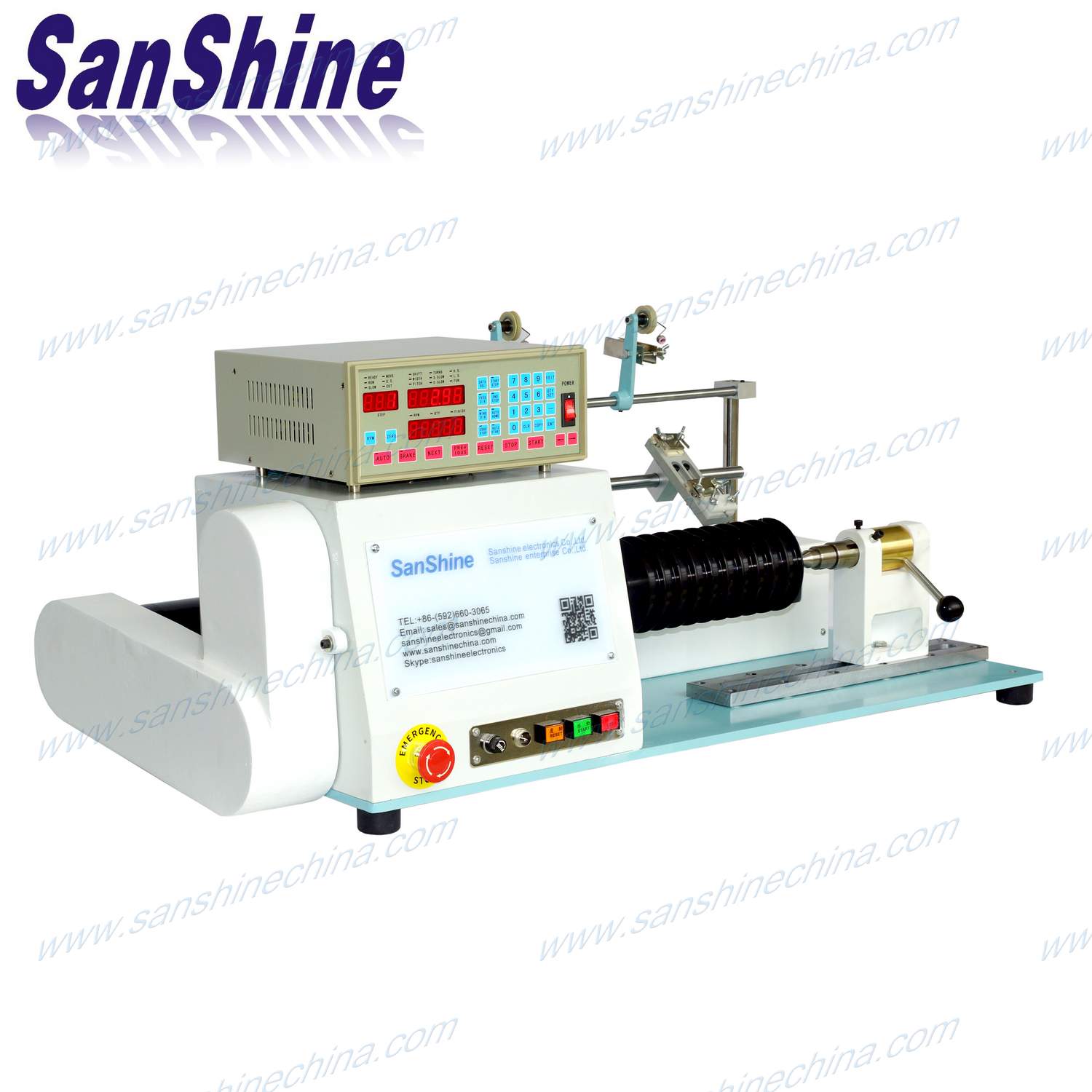

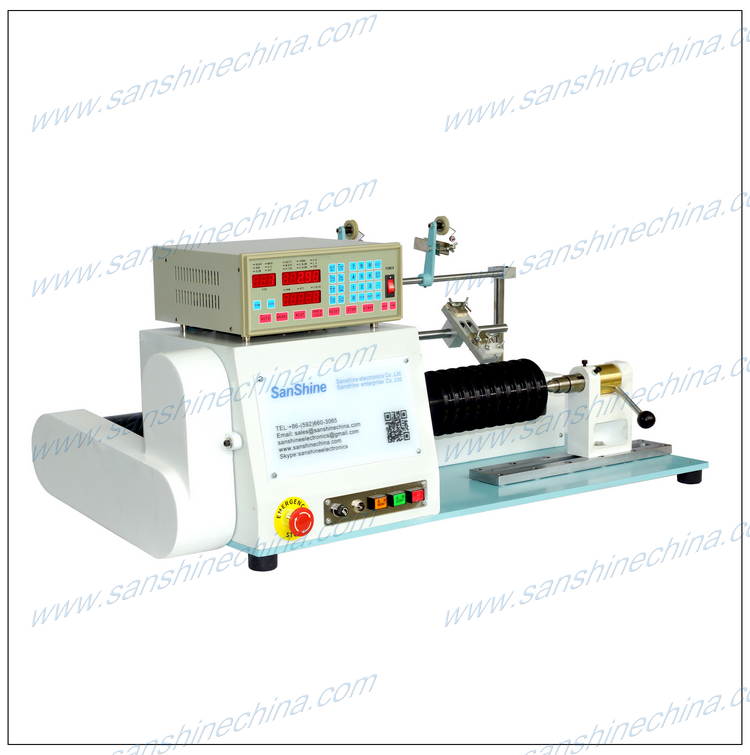

Product name : Programmable precise automatic string winding machine (SS-RW02)
Description :
The (SS-RW02) fish string rewinding machine is one High-Torsion digital coil rewinding machine. It is digital Programmable coil rewinding machine with 1/2HP DC motor. The Maximum wire diameter can reach 3.0mm. It's the best choice for rewinding fiber string, fiber suture, rewinding fish string, rewinding fish wire, rewinding fish thread, rewinding copper wire, rewinding wires, rewinding plastic string, rewinding textile thread, rewinding sewing thread, etc. .This machine can be customized according to coil size by requested.
Feature :
1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Two wire spreading heads with winding nozzle make sure the spreading wire precise and be high efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.
Specification :
| Model | SS-RW02 |
| Spindle Number | 1 |
| Wire diameter | 0.5~3.0mm |
| Spread pitch | 0~9.999mm |
| Spread width(traverse) | 350mm |
| Finished coil diameter | 200mm |
| Winding motor | 500W DC Motor |
| Spread motor | 4-Phase Stepper Motor |
| Max. speed | 1600 / 400rpm |
| Memory | 999 Steps |
| Power source | AC220V/110V + 10%, 50/60 Hz |
| Dimension(cm) | 70x52x60 |
| Net weight | 42kgs |
