Fully automatic slider type automatic toroid coil winding machine
Product 3/5  Fully automatic toroid coil winding machine  Rectangular core flat wire standing layout coil winding machine robot (SS-RF01)  Fully automatic three four phase toroid filter choke winding machine(SS-HK04)

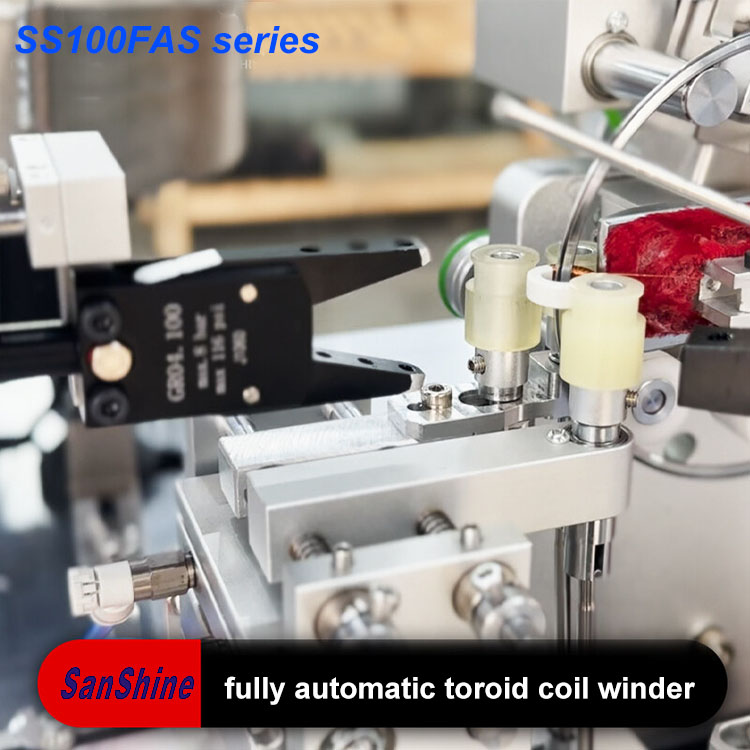

  • Fully automatic slider type automatic toroid coil winding machine
  • Fully automatic slider type automatic toroid coil winding machine
  • Fully automatic slider type automatic toroid coil winding machine



    Description :

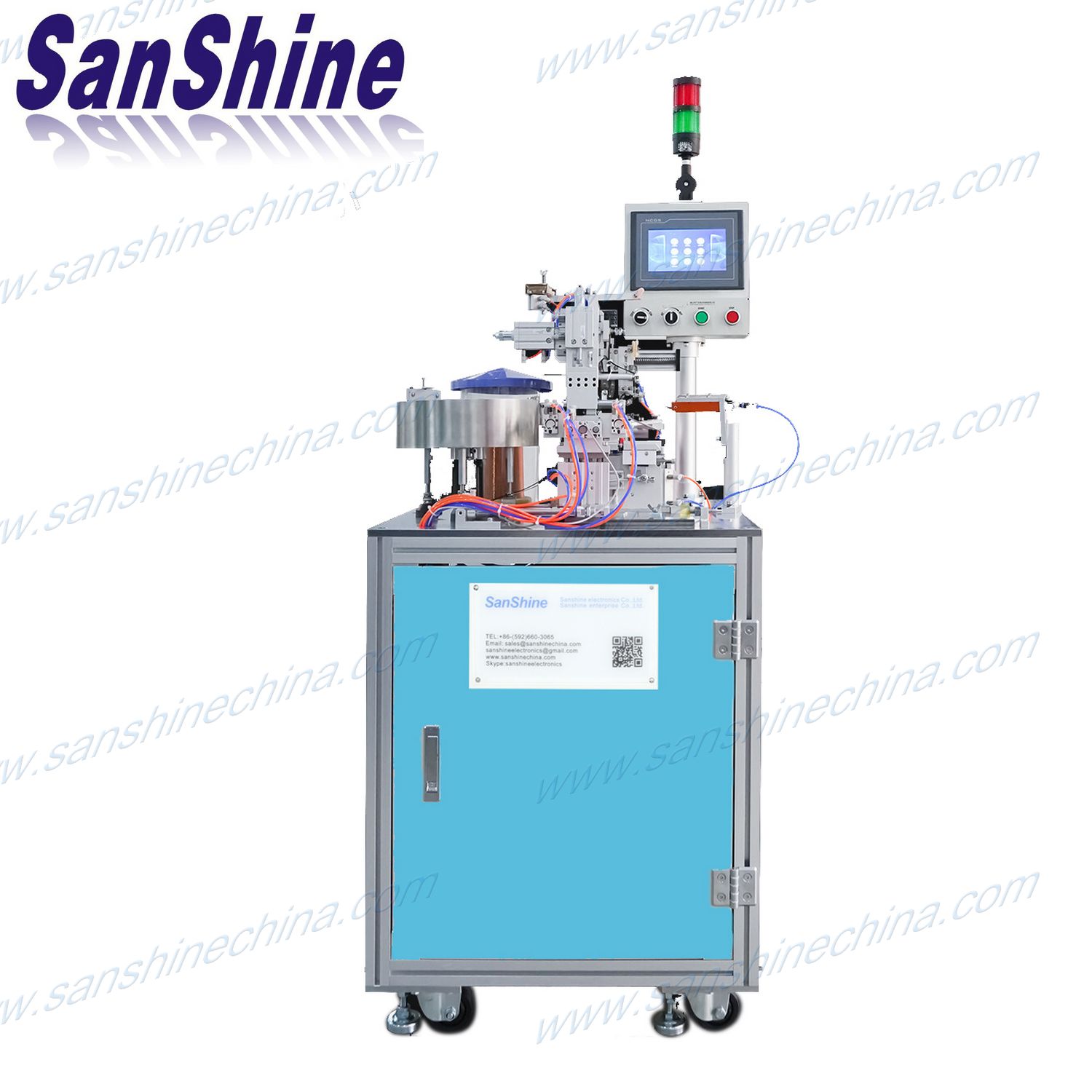

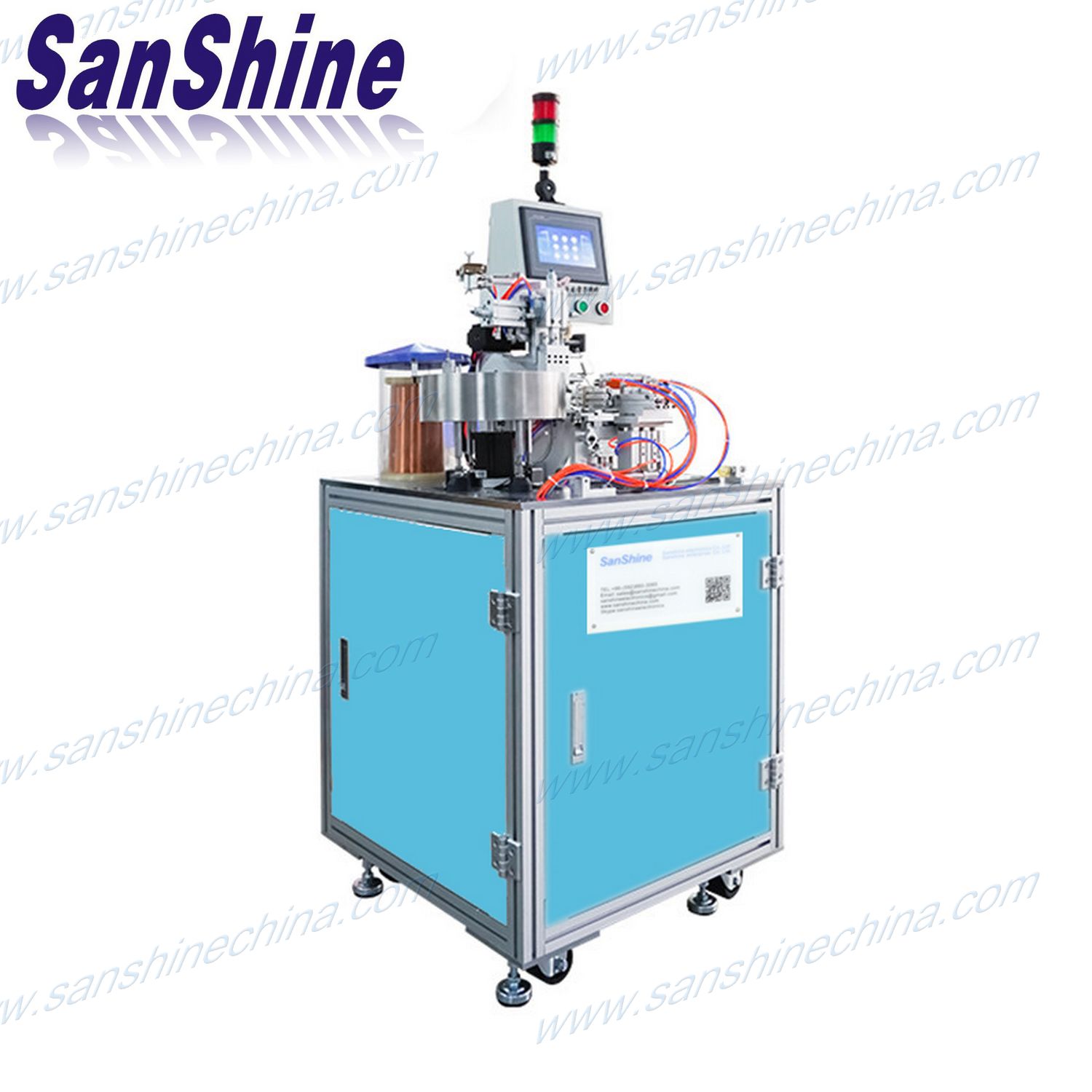

    This fully automatic slider type automatic toroidal winding machine (SS100FAS series, winding shuttle inner diameter 90~170mm) is used for

    winding fine enamelled copper wire toroid coils without operator. This slider type fully automatic ring coil winding robot (SS100FAS series)

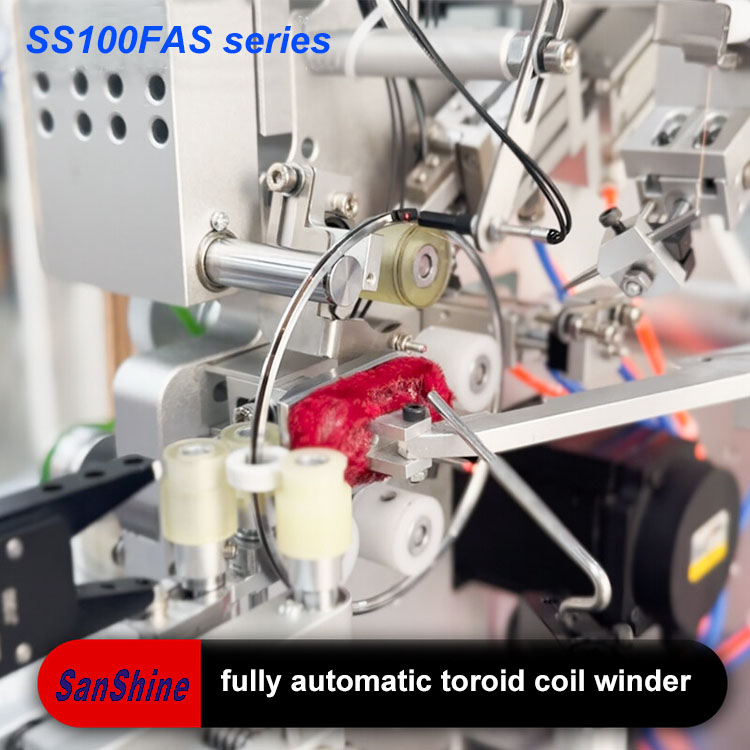

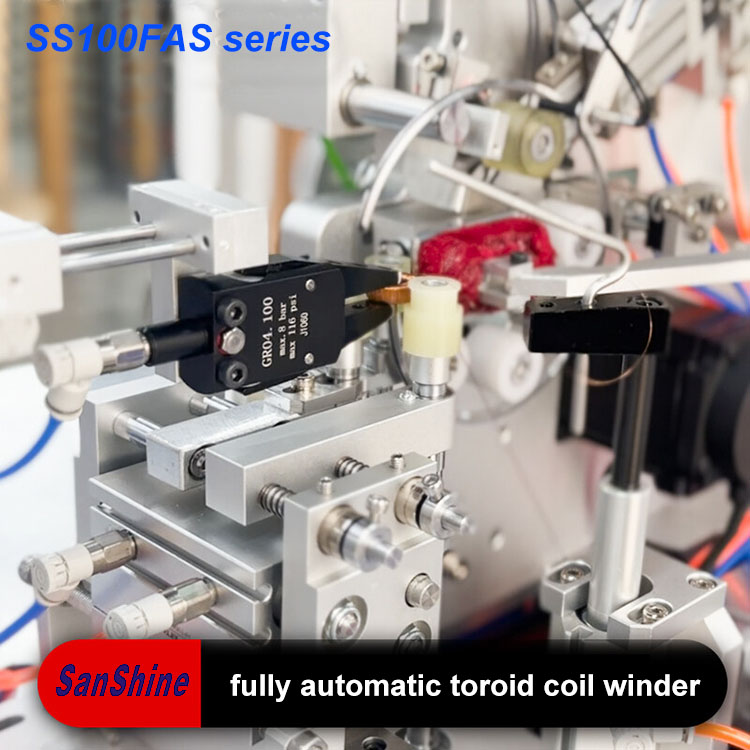

    adopts programmable precise CNC toroid controller with precise servo motors and sensors, Adopts special winding shuttle with slider.

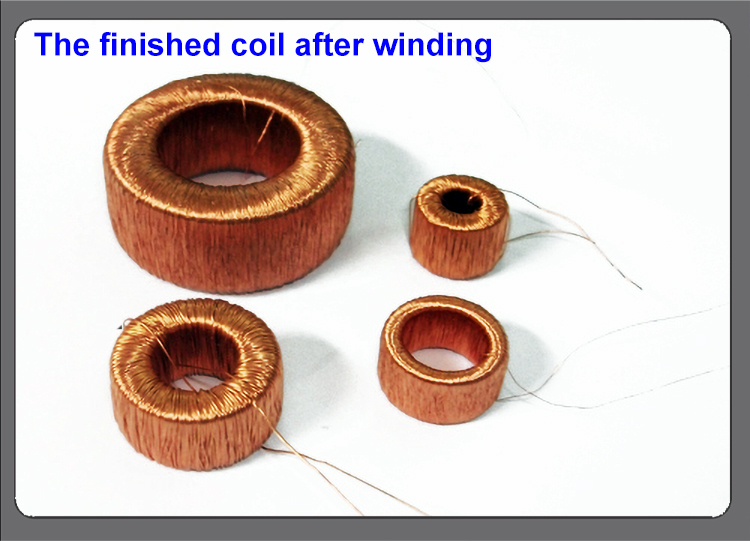

    Shuttle and slider take the fine enamel copper wire and wind on the toroid core in orderly according to user's wire layout requirements.

    This toroid winding robot is an accurately and reliability programmable precise toroidal coil winding machine. The slider type fully

    automatic toroid coil winder (SS100FAS series) is used for winding toroid current transformer, toroid current sensor, watt metter current

    toroidal sensors, toroid inductor, toroid transformer, toroid coil, toroid chock coil, power magnetics, small step motor coil, converter

    inductors, etc. . This fully automatic slider type toroid coil winding production (SS100FAS series) be know as current meter sensor coil

    winding machine and toroid angle motor winding machine also.

    Features :

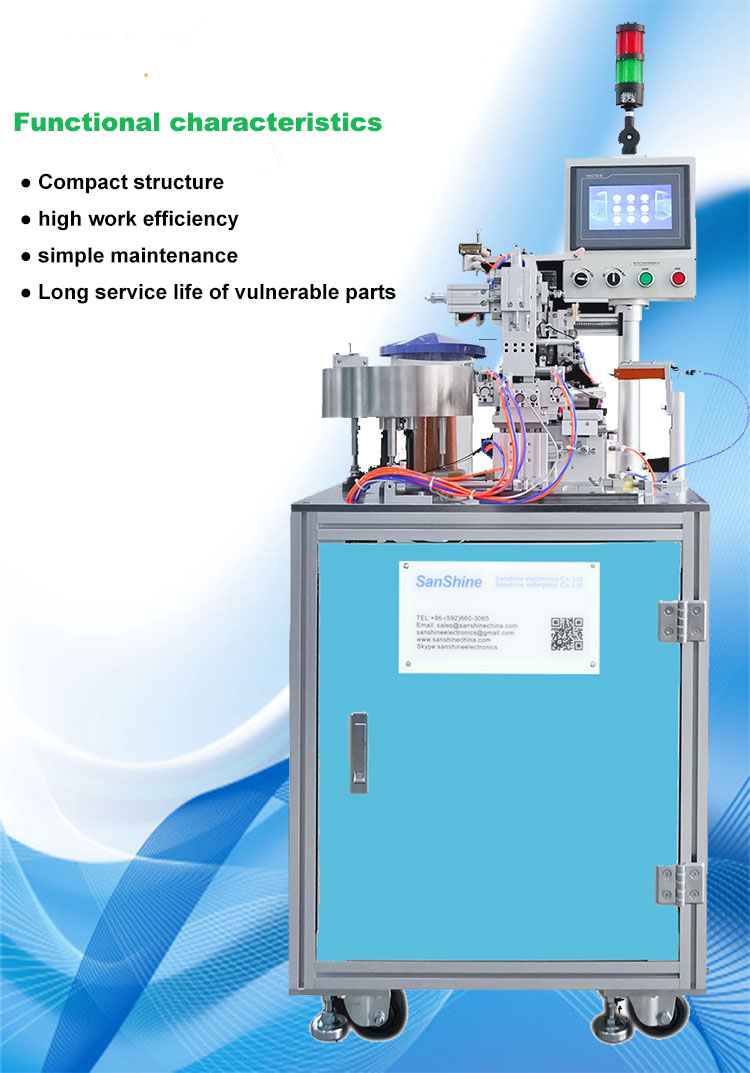

    1. Collocate slider type winding head, interchangeable roller table with different size (width and deepth) shuttle (magazine,) for different demensions

    toroidal coils, wire diameter, turns, so that to reduce the factory production cost. One set fully automatic toroid coil winding machne include one

    piece winding shuttle only, other sizes winding shuttles are optional.

    2. Hi-tech special shuttle for highest efficiency.

    3. Separate speed controls for wire loading and winding.

    4. Accurately count length of loading wire by length sensor.

    5. Accurately count turns of winding by high frequency response photo-electricity sensor.

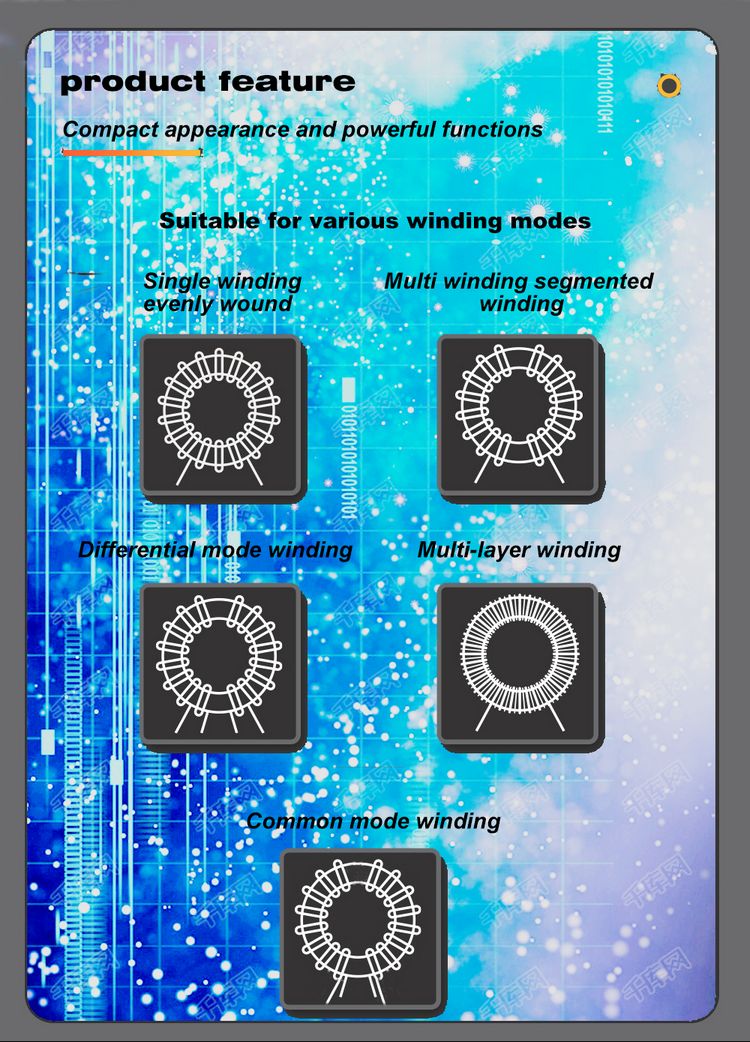

    6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

    7. Accurately wire spacing by precise programmable controller.

    8. Memory capacity accommodates 100 sequences of parameters with off-power memory retention.

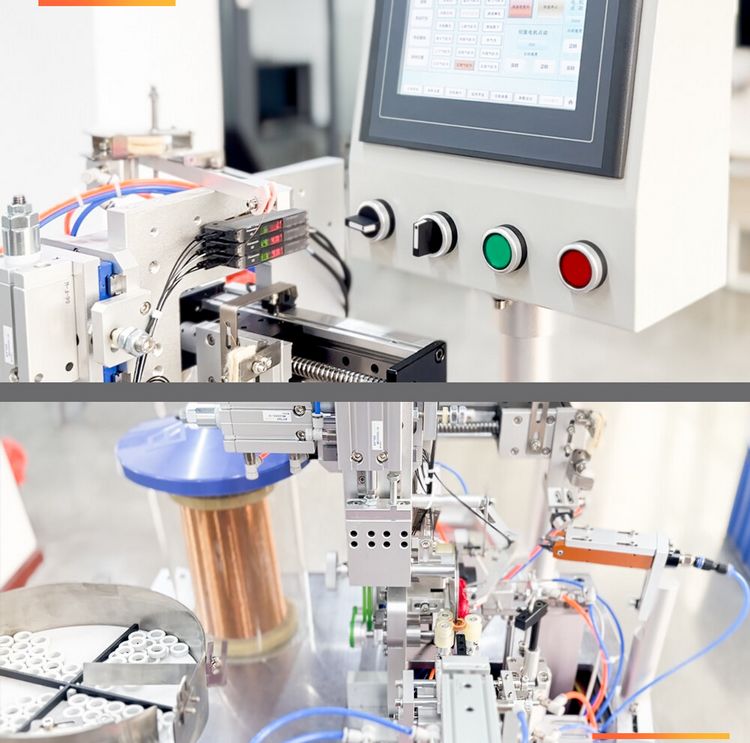

    9. Big size touching screen for programming and operation.

    10. Simple and easy programming way like as operation mobile phone, No need understand the technology of computer programming.

    Specification :

    SS100FAS-01
    Enamel copper   wire diameter0.05~0.2mmMax. winding speed1500RPM
    Max. finished   coil outside diameter30mmWire spacing   controllingwire   winding and layout by proportional linkage servo and steping motor
    Max. finished   coil inner hole diameter6mmElectric power sourceSingle   phase 110V /220V 50/60Hz
    Max. finished   coil height12mmAir pressure source0.7Mpa
    Shuttle inner   diameter90mmMachine sizeabout   L680*W630*Height 1680mm
    Controller   memory programs capacity100 setsMachine net weightabout 140Kgs
    SS100FAS-02
    Enamel copper   wire diameter0.05~0.2mmMax. winding speed1500RPM
    Max. finished   coil outside diameter60mmWire spacing   controllingwire   winding and layout by proportional linkage servo and steping motor
    Max. finished   coil inner hole diameter6mmElectric power sourceSingle   phase 110V /220V 50/60Hz
    Max. finished   coil height15mmAir pressure source0.7Mpa
    Shuttle inner   diameter104mmMachine sizeabout   L680*W630*Height 1680mm
    Controller   memory programs capacity100 setsMachine net weightabout 140Kgs
    SS100FAS-03
    Enamel copper   wire diameter0.05~0.2mmMax. winding speed1500RPM
    Max. finished   coil outside diameter60(110)mmWire spacing   controllingwire   winding and layout by proportional linkage servo and steping motor
    Max. finished   coil inner hole diameter8mmElectric power sourceSingle   phase 110V /220V 50/60Hz
    Max. finished   coil height20mmAir pressure source0.7Mpa
    Shuttle inner   diameter140mmMachine sizeabout   L680*W630*Height 1680mm
    Controller   memory programs capacity100 setsMachine net weightabout 140Kgs
    SS100FAS-04
    Enamel copper   wire diameter0.07~0.23mmMax. winding speed1400RPM
    Max. finished   coil outside diameter60(110)mmWire spacing   controllingwire   winding and layout by proportional linkage servo and steping motor
    Max. finished   coil inner hole diameter9mmElectric power sourceSingle   phase 110V /220V 50/60Hz
    Max. finished   coil height30mmAir pressure source0.7Mpa
    Shuttle inner   diameter170mmMachine sizeabout   L680*W630*Height 1680mm
    Controller   memory programs capacity100 setsMachine net weightabout 140Kgs

    How to select the best suited automatic toroid coil winding machine for your toroid coil?

    Tell us your toroidal coil of data as below please:

    1. toroid core outside diameter before winding?

    2. toroid core inside diameter before winding?

    3. toroid core height before winding?

    4. how many windings on this core?

    5. how many turns of each winding?

    6. how about the copper wire diameter of each winding?

    7. provide pictures of product which is better.
