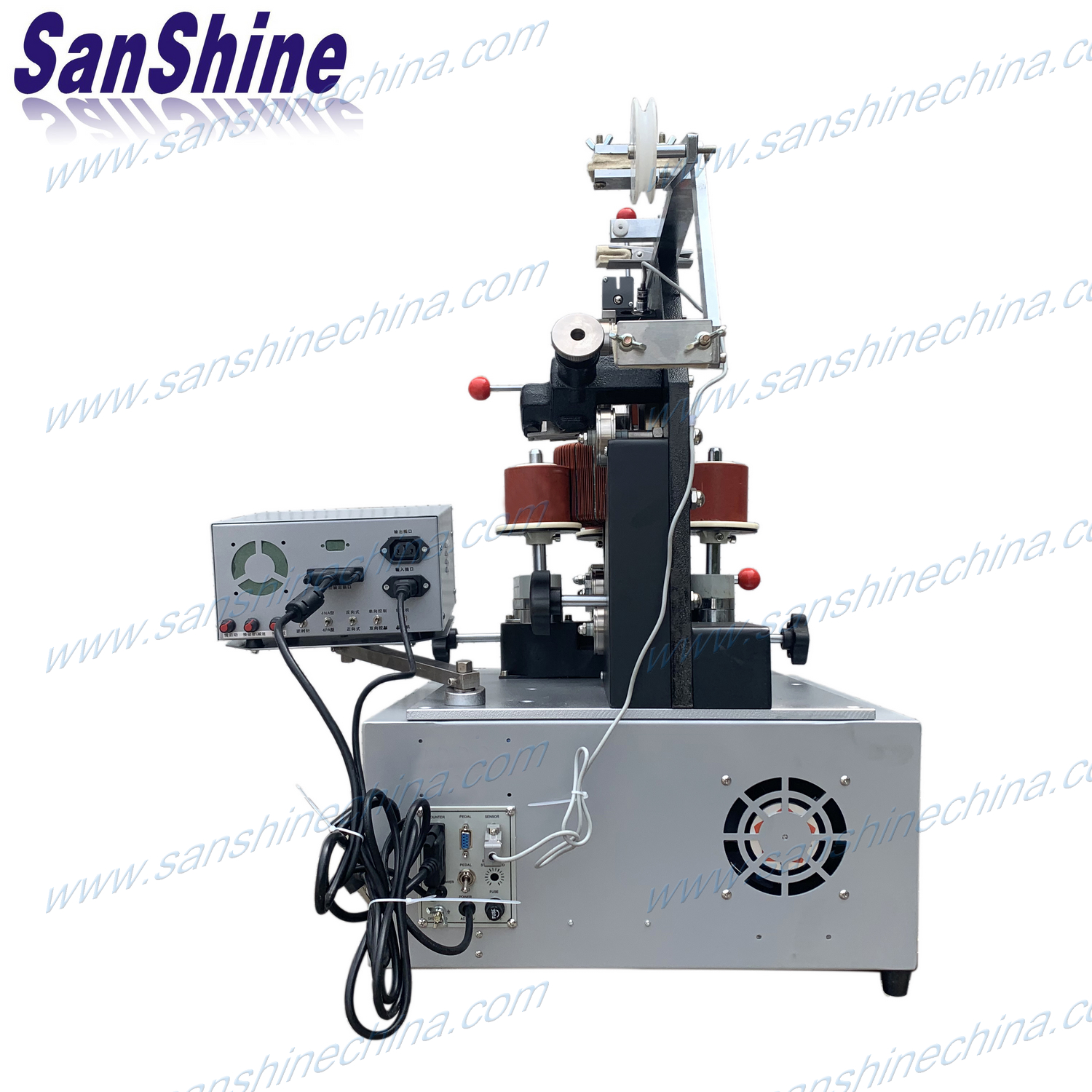

    Product name : Gear type automatic big toroid coil winding machine (SS300 series)




    Description:

    (SS300 Series) gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils,etc.
    Features:
    1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
    2. Hi-tech shuttle for highest efficiency.
    3. Separate speed controls for loading and winding.
    4. Accurately count length of loading by limited-switch.
    5. Accurately count turns of winding by photo-electricity sensor.
    6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
    7. Accurately wire spacing by programmable controller.
    8. Memory capacity accommodates 29 sets programes with off-power memory retention

    Specification of each model :

    ModelSS300-01 (Shuttle OD.  250mm)
    Wire diameter0.7   -2.0mmMax.   winding speed200   Rpm
    Max. final coil O. D.Φ   60 -200mmWire   spacingstepping   motor control
    Min. final coil I. D.Φ   40mmSupply   voltageAC   220V(50Hz)
    Max. final coil height100mmMechanical   dimensions550*500*780mm
    Controller storage capacity programs29(set)Weight94Kg
    ModelSS300-02    (Shuttle OD. 300mm)
    Wire diameter0.7   -2.5mmMax.   winding speed200   Rpm
    Max. final coil O. D.Φ   60 -200mmWire   spacingstepping   motor control
    Min. final coil I. D.Φ   40mmSupply   voltageAC   220V(50Hz)
    Max. final coil height100mmMechanical   dimensions550*500*780mm
    Controller storage capacity programs29(set)Weight94Kg
    ModelSS300-03    (Shuttle OD. 250mm)
    Wire diameter0.6   -1.6mmMax.   winding speed200   Rpm
    Max. final coil O. D.Φ   60 -200mmWire   spacingstepping   motor control
    Min. final coil I. D.Φ   30mmSupply   voltageAC   220V(50Hz)
    Max. final coil height80mmMechanical   dimensions550*500*780mm
    Controller storage capacity programs29(set)Weight94Kg
    ModelSS300-04    (Shuttle OD. 250mm)
    Wire diameter0.5   -1.3mmMax.   winding speed200   Rpm
    Max. final coil O. D.Φ   60 -200mmWire   spacingstepping   motor control
    Min. final coil I. D.Φ   25mmSupply   voltageAC   220V(50Hz)
    Max. final coil height80mmMechanical   dimensions550*500*780mm
    Controller storage capacity programs29(set)Weight94Kg
    ModelSS300-05    (Shuttle OD. 360mm)
    Wire diameter0.7   -3.0mmMax.   winding speed200   Rpm
    Max. final coil O. D.Φ   80 -300mmWire   spacingstepping   motor control
    Min. final coil I. D.Φ   50mmSupply   voltageAC   220V(50Hz)
    Max. final coil height150mmMechanical   dimensions550*500*820mm
    Controller storage capacity programs29(set)Weight98Kg

    How to select the best suited automatic toroid coil winding machine for your toroid coil？

    Tell us your toroidal coil of data as below please:
    1.toroid core outside diameter before winding?
    2.toroid core inside diameter before winding?
    3.toroid core height before winding?
    4.how many windings on this core?
    5.how many turns of each winding?
    6.how about the copper wire diameter of each winding?
    7.provide pictures of product which is better.
