In-line automatic solder tinning machine (SS-VT01)
Product 3/7  Solder pot and solder tinning machine  Multi-functional automatic angle able solder tinning machine (SS-RT01)
  • In-line automatic solder tinning machine (SS-VT01)
  • In-line automatic solder tinning machine (SS-VT01)
  • In-line automatic solder tinning machine (SS-VT01)

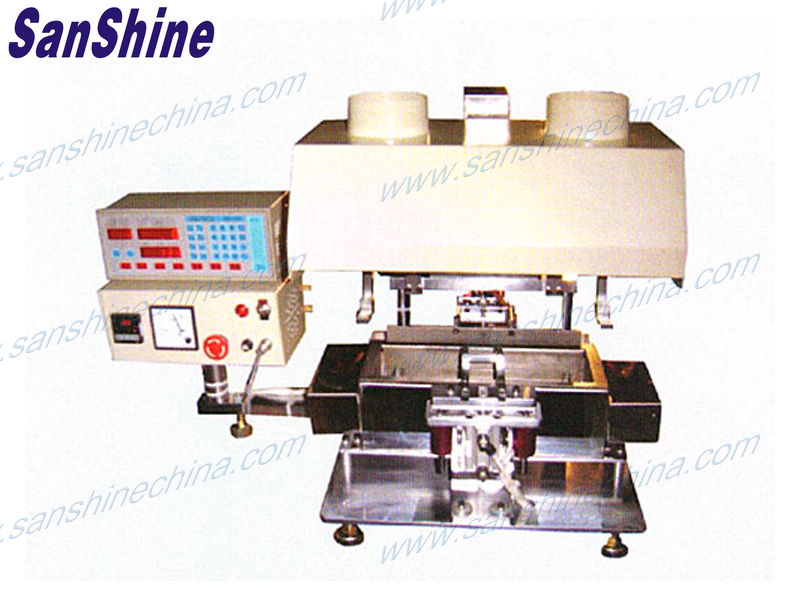

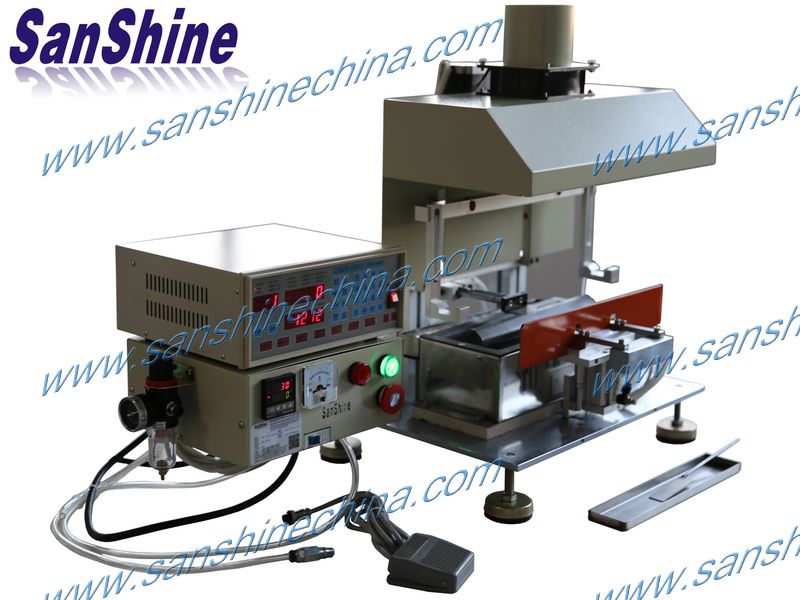

    Product name : In line automatic solder tinning machine (SS-VT01)




    Description :

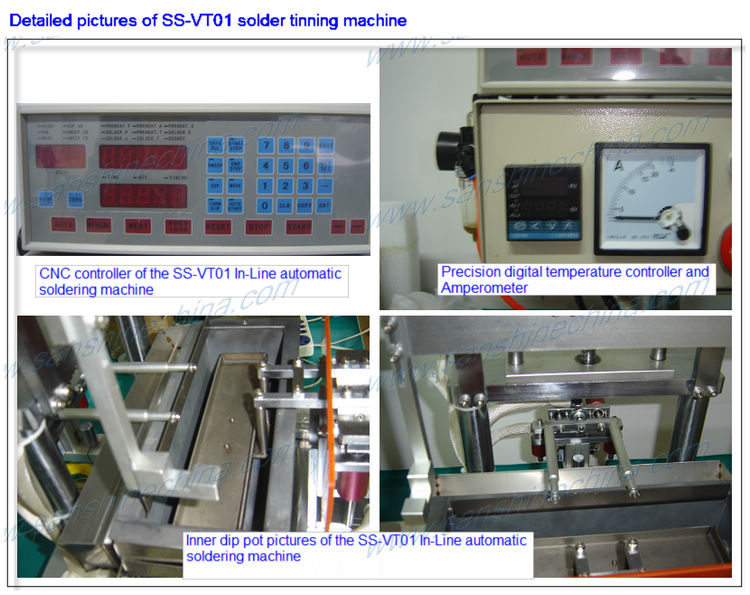

    The (SS-VT01) Automatic solder tinning machine adopts precise digital CNC tinning controller and servo motors. It is best for soldering transformers, inductors, relays, contactors which not need soldering at an angle. The soldering components are vertical with the solder face. ,etc.
    Feature :

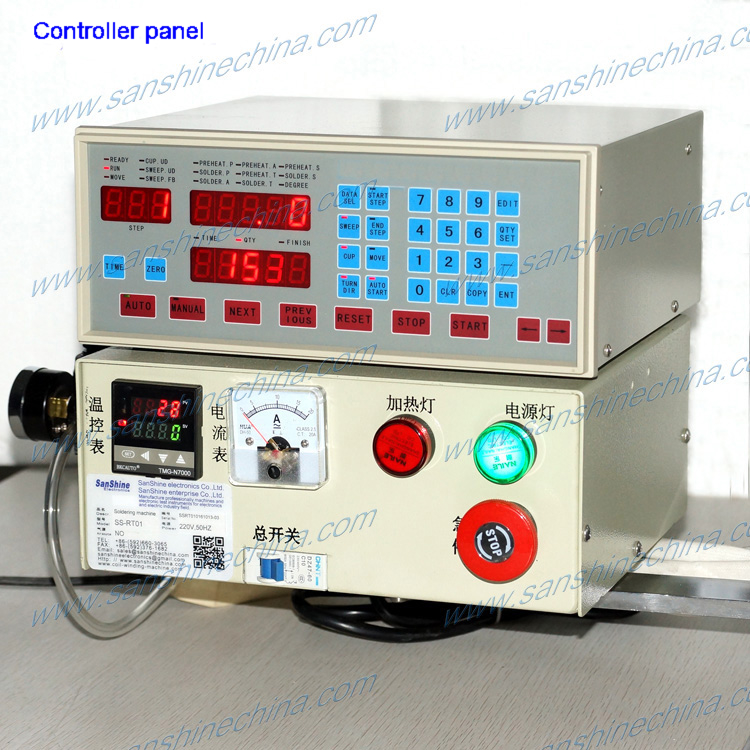

    1. Adopted controlled CNC with 1000 sequences of parameters and stepping motor for multi-purpose soldering.
    2. Adjustable for most pin type transformers inductors relays. can take the tinning pins of products to traverse in the solder then go up.
    3. Automatically clean the solder dross before soldering.
    4. Precise adjustment of preheating deepth and time.
    5. Precise adjustment of soldering deepth and time.
    6. Can set coils pins to preheat for set time and then solder.
    7. Tooling up and down movement controlled by step motor giving accurate results cycle after cycle.
    8. Side inserted heaters enable easy maintenance.
    9. Titanium alloy dip pot for temperatures up to 600± 3º C.
    10. Titanium dip pot suitable for lead free solder.
    11. Dip pot inner size L300*W100mm*D60mm. Up to 20 pieces (EI-19) per cycle.
