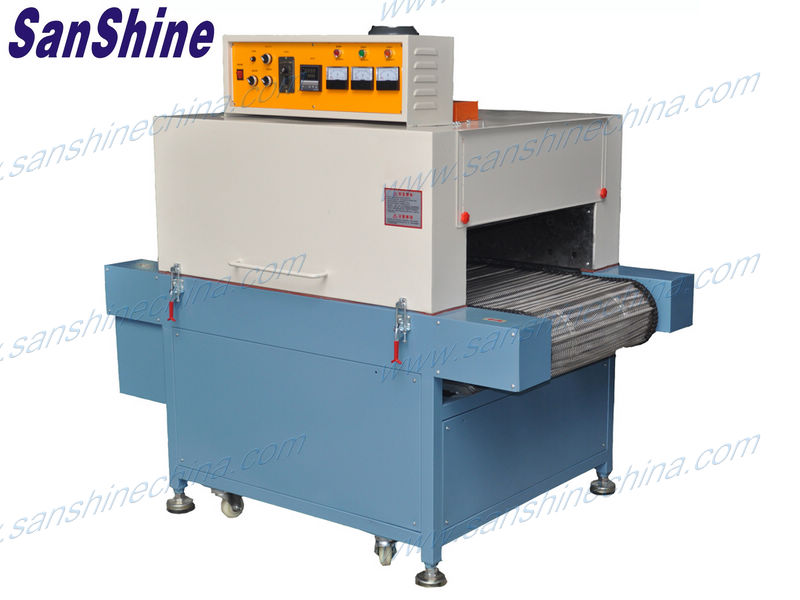

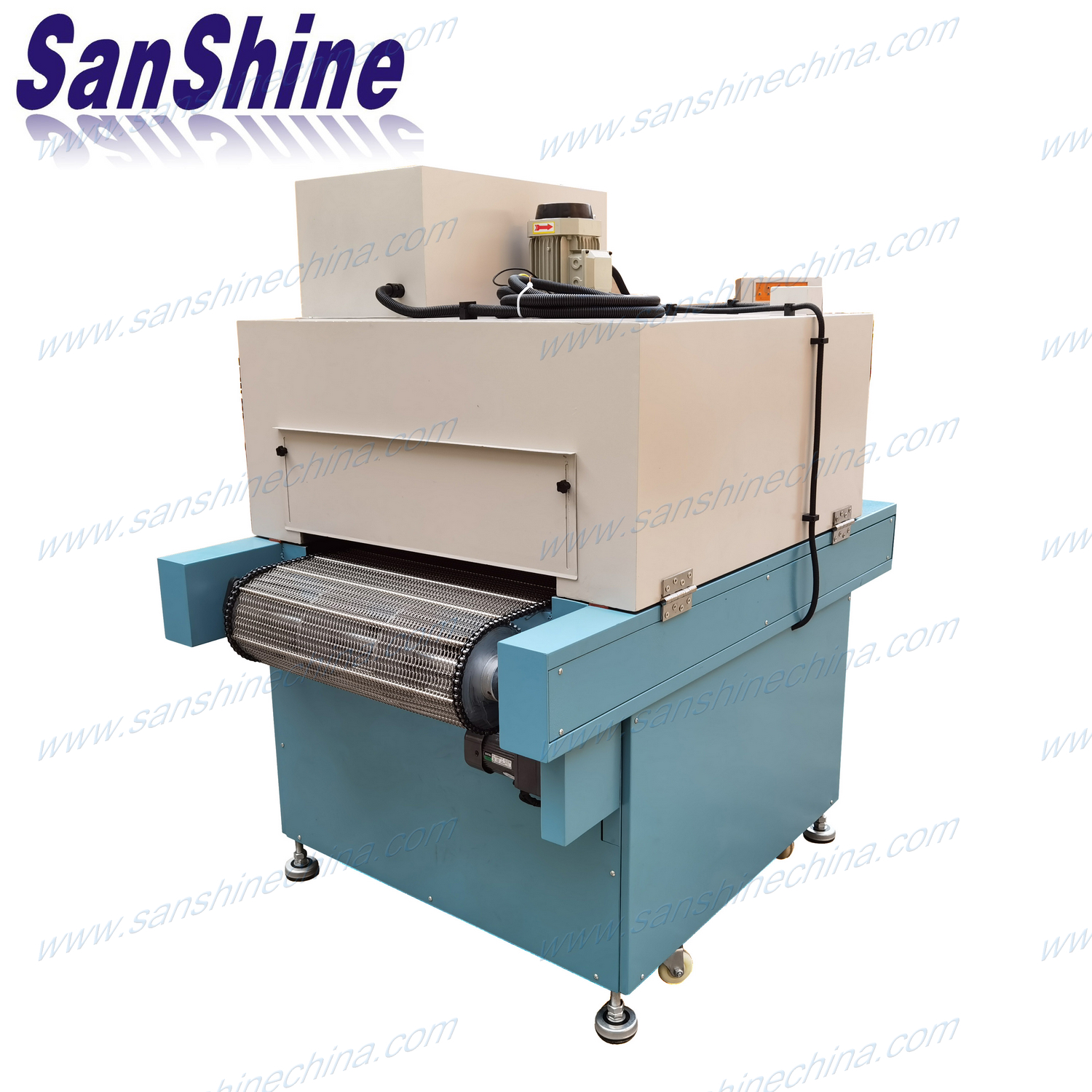

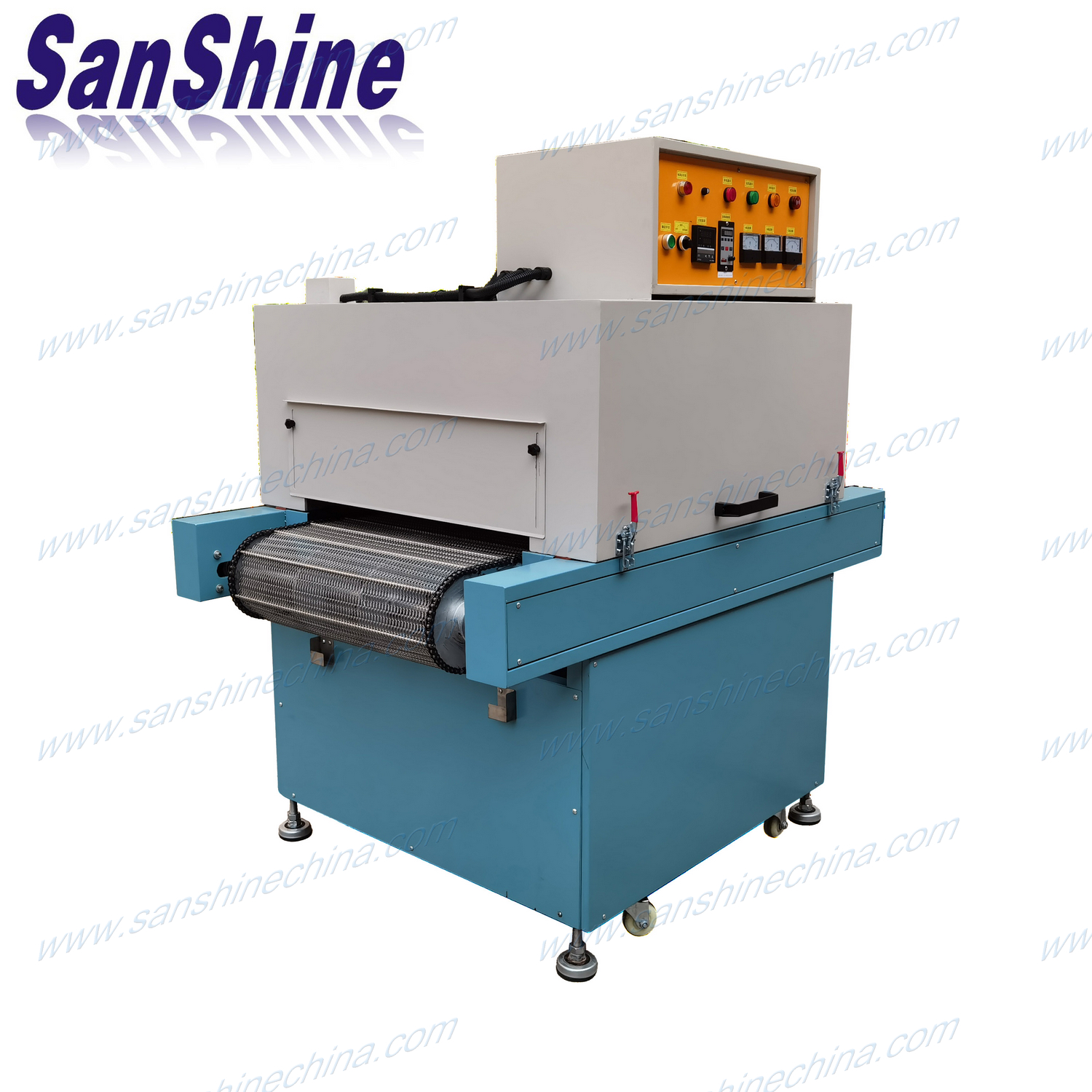

Product name : Industrial electric heating shrinking hot air cycled tunnel oven (SS-HSTO02)
Description:
This (SS-HSTO02) industrial Heat shrink tubing oven adopts the principle of level hot air cycle conveying and the precision programable digital temperature controller. It is designed specifically for shrinking the heat shrink tubing and shrink film, heat shrink packing, heating shrinking insulation sleeve / tube/ harness, etc.(for shrink-wrap process, electronics cables, electrical cables, electronics components, electrical parts, label of bottle, toys, hardware, etc.).
(SS-HSTO02) Heat shrink tubing oven adopts the conveyor speed controller, the conveyor motor is a speed reducing motor.The (SS-HSTO02) is one tunnel type oven. It is perfect for manufacturing settings. Highly accurate electronic digital temperature controller and speed control allows for repeatable consistent results(easy operation.).The working temperature is invariableness by automatically.

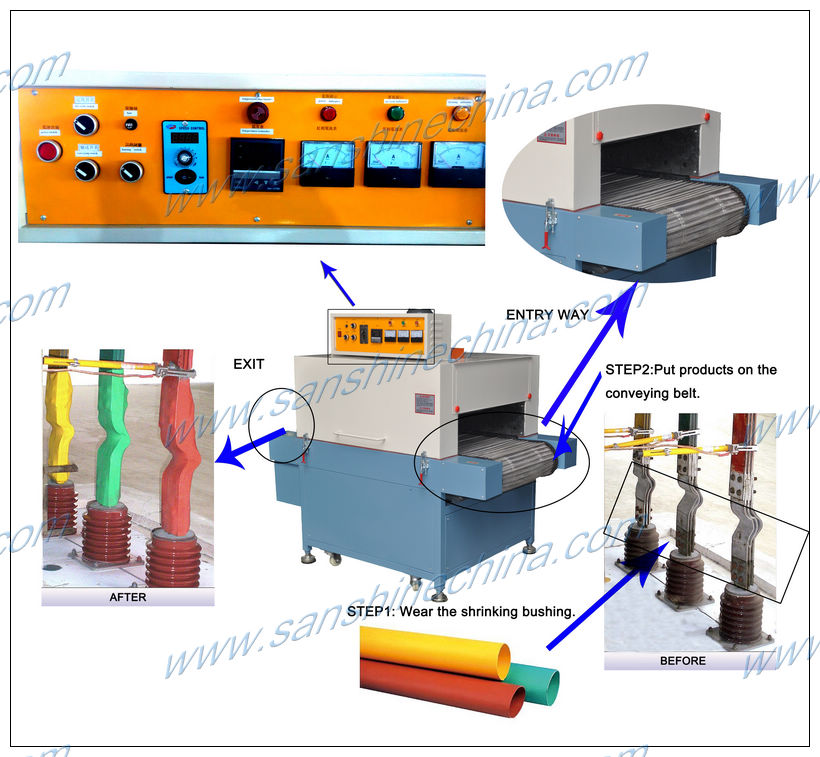

Put the processing products on the conveying belt, then the these products will be processed and out put automatically.
Specification:
1. machine total length: 1500mm.
2. heating zone length(inner working zone): 1000mm ( be customized according to user's requirements also).
3, conveying belt width(inner working zone): 600mm ( be customized according to user's requirements also ).
4, the entryway height of tunnel oven: 200mm ( be customized according to user's requirements also ).
5, the conveying belt length of entryway zone: 250mm ( be customized according to user's requirements also ).
6, the conveying length of exit zone: 250mm ( be customized according to user's requirements also ).
7, the height from ground to the conveying: 750mm.
8, heating way: electrical heating tubes with the hot air cycle.
9, heating power: 6KW.
10, the speed of conveyer: 50 ~ 1000mm/Minute.
11, working temperature: room temperature ~ 200ºC( be customized according to user's requirements also).
12, power source: 3 phase 380V 50Hz.
13, conveying belt of configuration: Φ 1.2x8x10mm stainless net belt and chain belt.
14, conveying time: can be adjustable from 30seconds to 4 minutes.
*****This heat shrink tubing oven can be customized according to user's requirements, welcome to inquire*****
