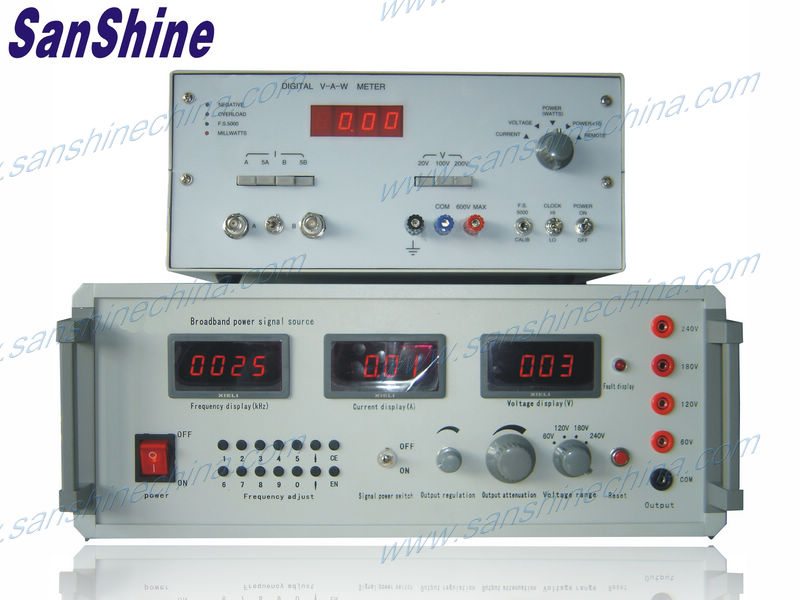

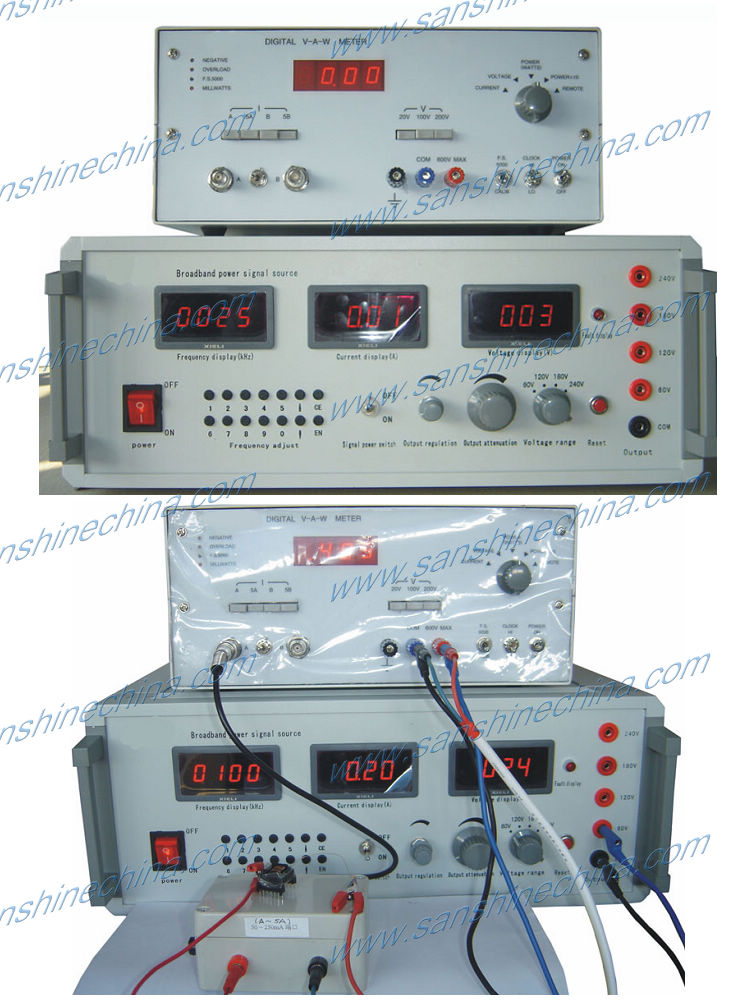

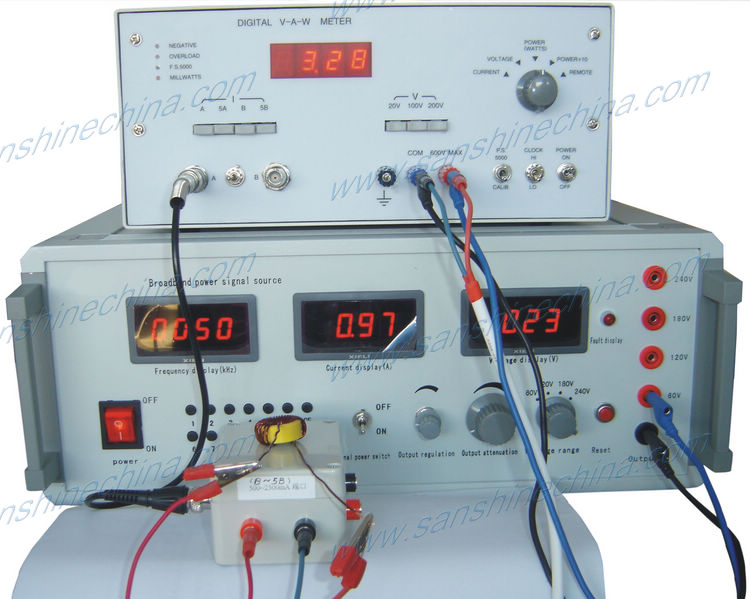

This (SS-SML01) soft magnetic core power loss analyzer includes one set broadband power signal generator and one set W-A-V meter, the broadband power signal generator is specially researched and manufactured for the testing of the soft magnetism materials.With a wide operating frequency, high power output, high quality waveform and convenient operation, the instruments are ideal power signal source for the testing and determination of the soft magnetism materials,high frequency fluorescent lamp and high frequency nonpolar lamp. They are designed to be used for power signal source of corresponding frequency band in factories and laboratories. The W-A-V meter adopts the principle of Voltage with Ampere of product of IEC standard.  The (SS-SML01) tester can measure the core loss(soft magnetic core, amorphouse magnet core etc.) in quickly, easy, exactly. But the cores can not be gap.



Specification :

Broadband power signal source :



power signal source model	output voltage（Vrms）	output frequency range(KHz)	non-liner distortion(full load)	Max. output power(VA)	voltage display range(V)
A	60/120/180/240<±0.5%/h	10 ~ 1000≤±0.5%	10KHz ~ 200KHz<2%  200KHz ~ 500KHz<3%   500KHz ~ 1000KHz<5%	200	60/120/180/240 ±1.0
C	60/120/240/360/500<±0.5%/h	10 ~ 200≤±0.5%		300	60/120/240/360/500 ±1.0
E	60/120/180/240/360/500<±0.5%/h	10 ~ 200≤±0.5%		500	60/120/180/240/360/500 ±1.0
F	60/120/240/360/480/600<±0.5%/h	10 ~ 200≤±0.5%		1000	60/120/240/360/480/600 ±1.0

W-A-V meter :

voltage measure range	voltage measure accuracy	current measure range	power measure range	power measure accuracy	frequency measure range
20V(2.0 ~ 40.0V)	±0.5% (1KHz ~ 300KHz) ;      ±0.5% (300KHz ~ 500KHz)	50mA(5.0 ~ 100mA)	0.1W ~ 500W	±1.0% (1KHz ~ 300KHz) ; ±1.0% (300KHz ~ 500KHz)	1KHz ~ 500KHz
100V(10.0 ~ 200.0V)		250mA(25.0 ~ 250mA)
200V(20.0 ~ 400.0V)		500mA(50.0 ~ 500mA)
		2500mA(250.0 ~ 2500mA)
