Surge tester (SS6815 / SS6815F)
Product 1/1  Surge tester
  • Surge tester (SS6815 / SS6815F)
  • Surge tester (SS6815 / SS6815F)
  • Surge tester (SS6815 / SS6815F)

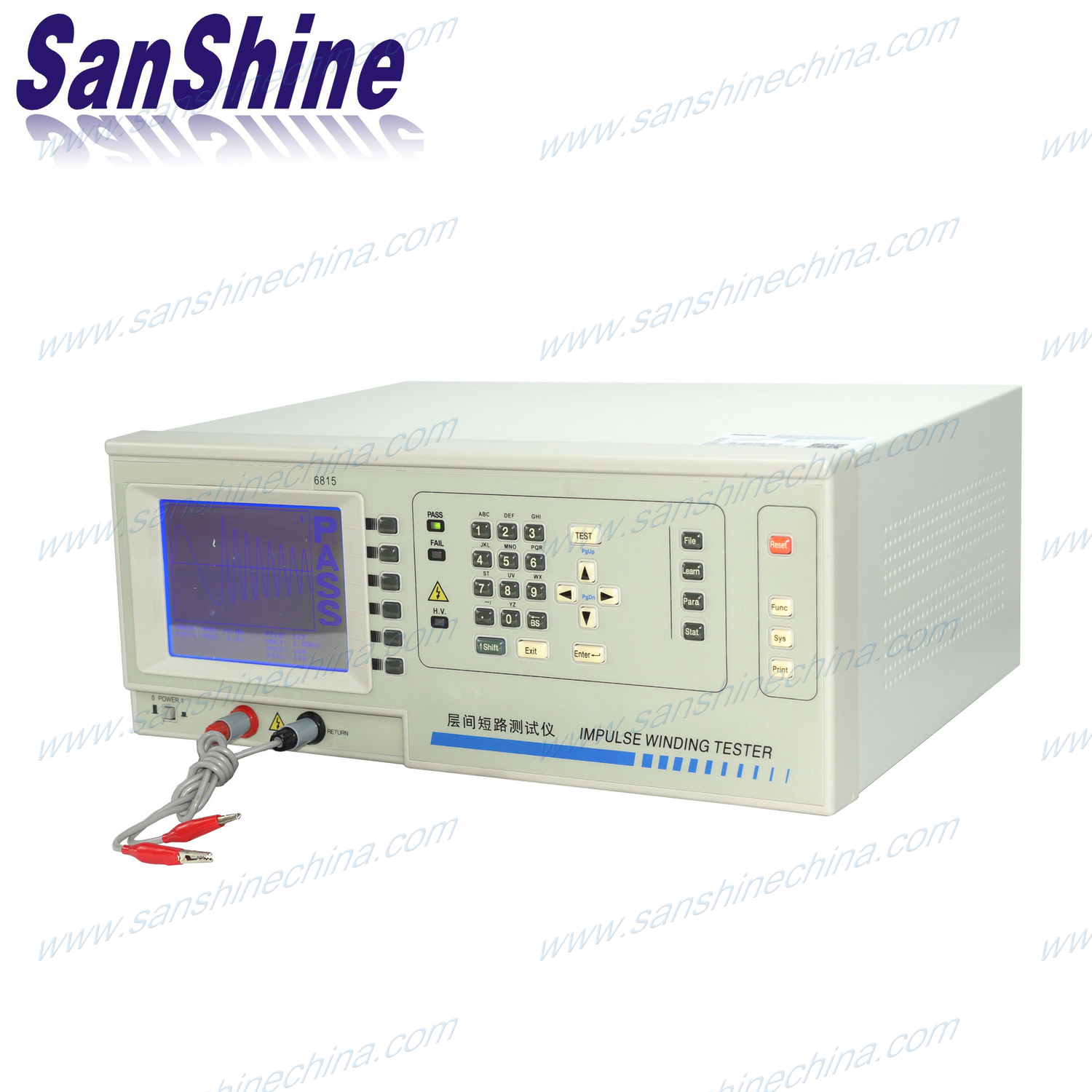

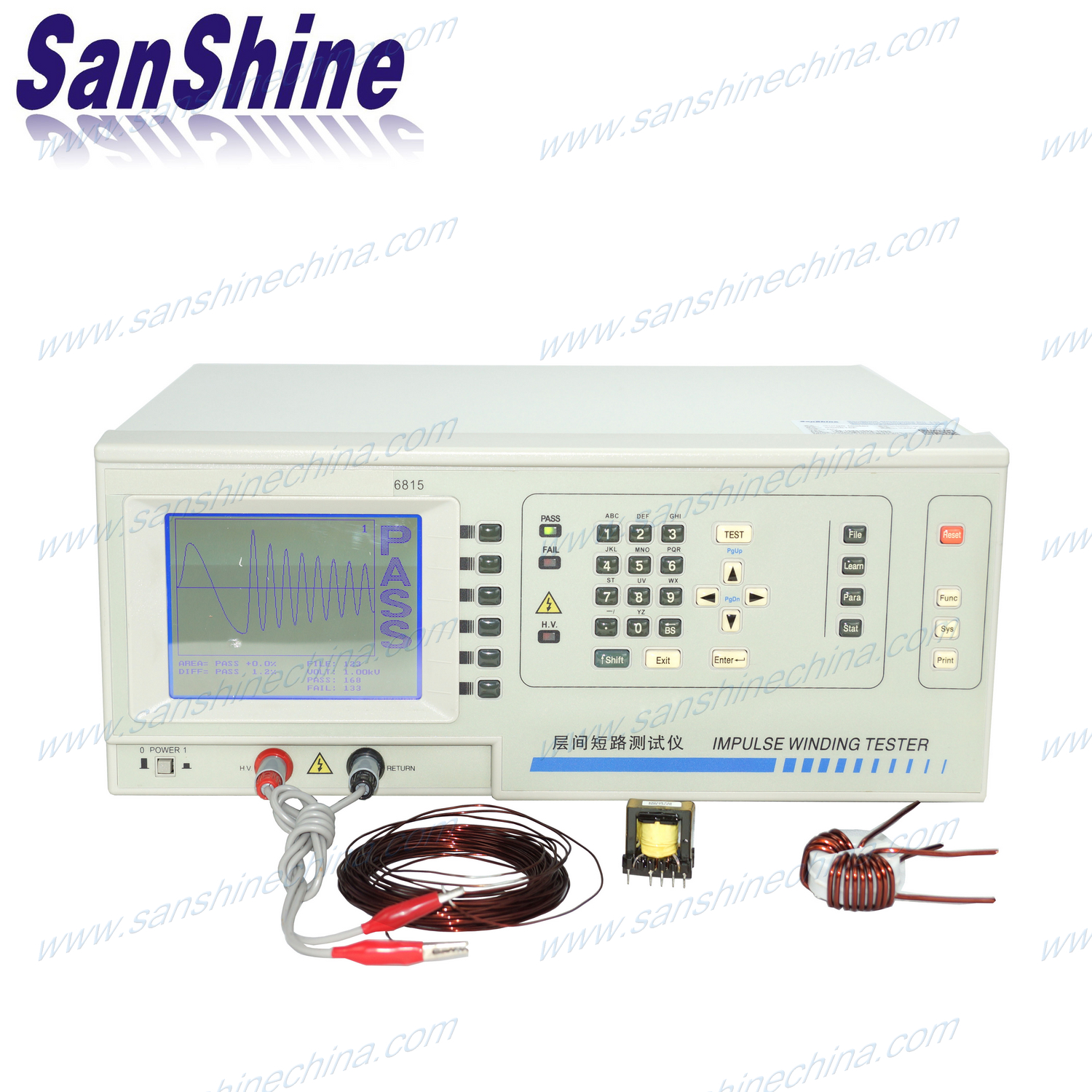

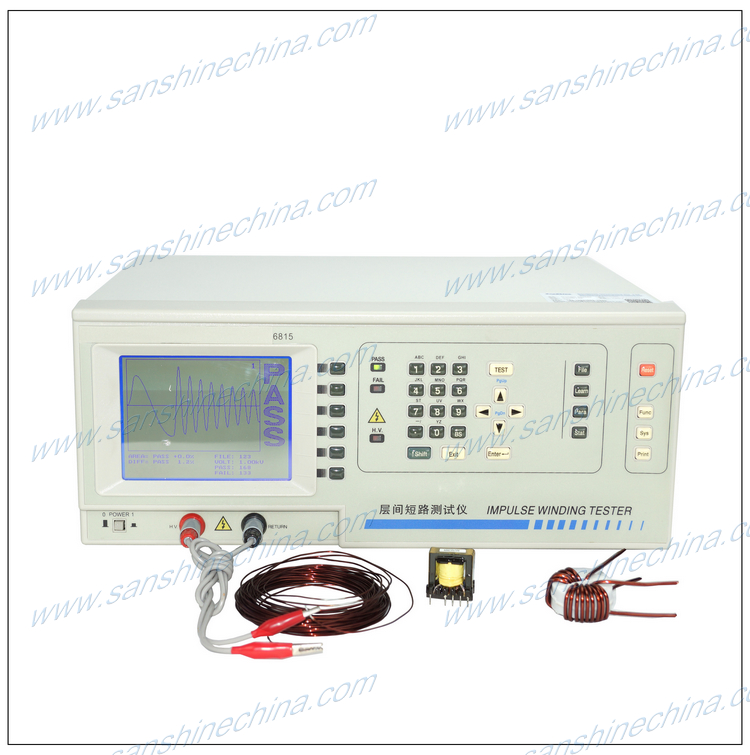

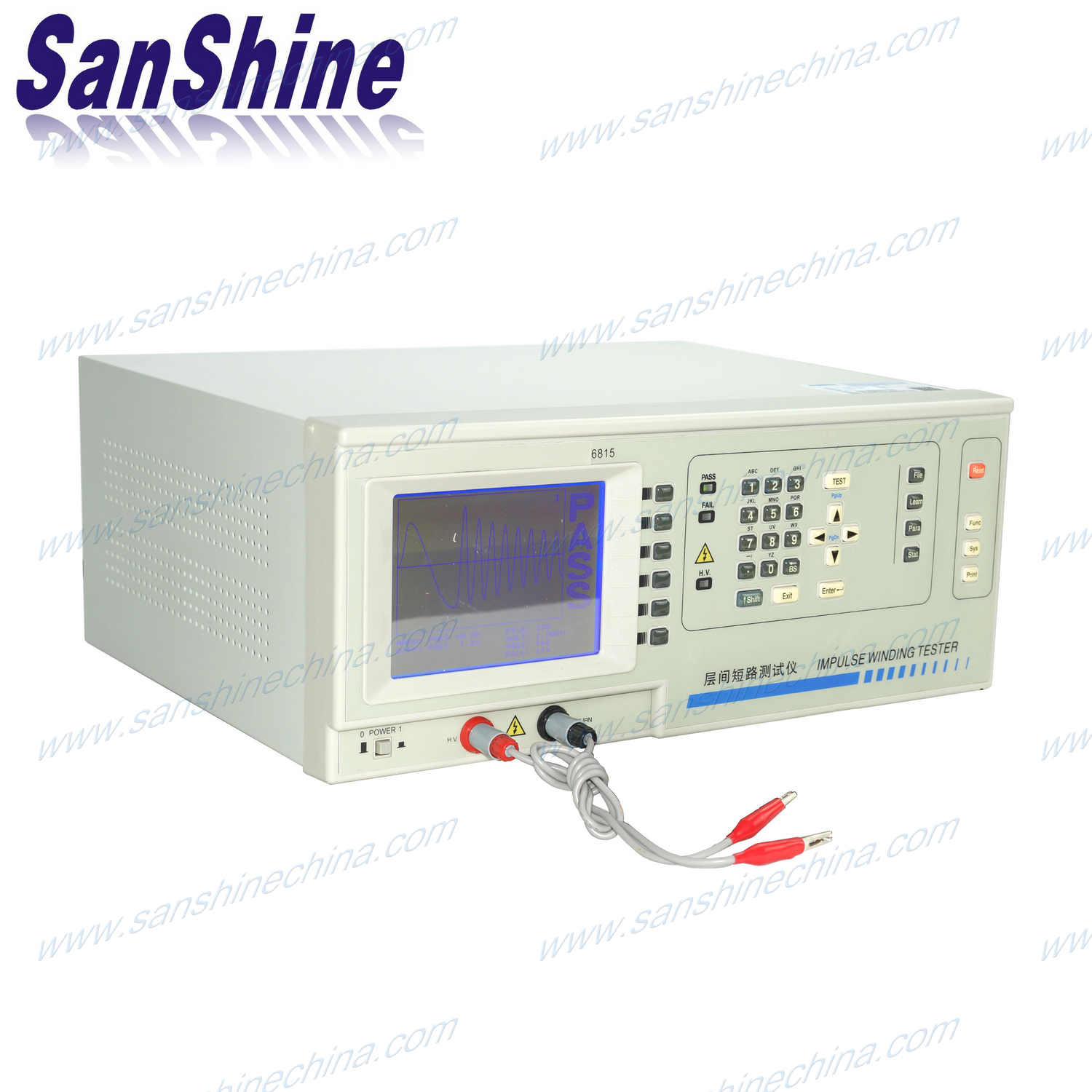

    Product name : Coil winding impulse surge tester (SS6815 / SS6815F)





    Description :

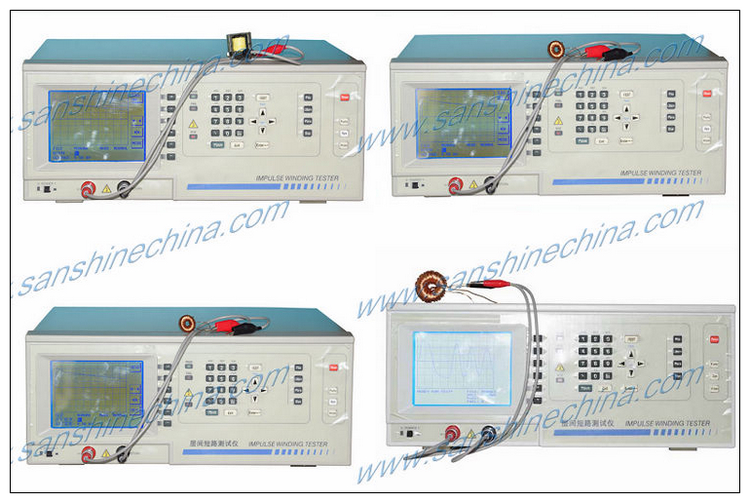

    The (SS6815 / SS6815F) surge tester(impulse winding tester) is used for testing and check the insulation grade of turns between turns, insulation grade of layers between layers, insulation grade of windings between turns. it is used widely for transformer,current sensor,voltage sensor,relay,contactor,inductor,motor,generator,valve coil,voice coil, etc..
    Features :
    1. Ultra High 5000 Test Voltage
    2. Large 320*240 LCD Display
    3. Chinese / English Language Version
    4. Full Programming Sequence Test
    5. Easy to Use
    6. Versatile I/O Ports for Application
    7. Test Statistics and Print Function

    Specification :

    Advanced Functions Ultra High 5000V Testing Voltage
    Auto Learning & Auto Test
    Test Statistics & Full Analysis
    Self Diagnostic
    Key Lock Mode
    Test Functions Area Size Comparison
    Difference Area Comparison
    Flutter Value
    Corona Discharge
    Waveform Comparison
    Impulse Voltage  200~5000V Setting
    ± 2% Accuracy
    Measurement Time 50ms
    Display and Sound 320× 240 Graphic LCD Display
    Pass/Fail LED Indicator
    Internal Speaker
    Connections 2 Test Sockets

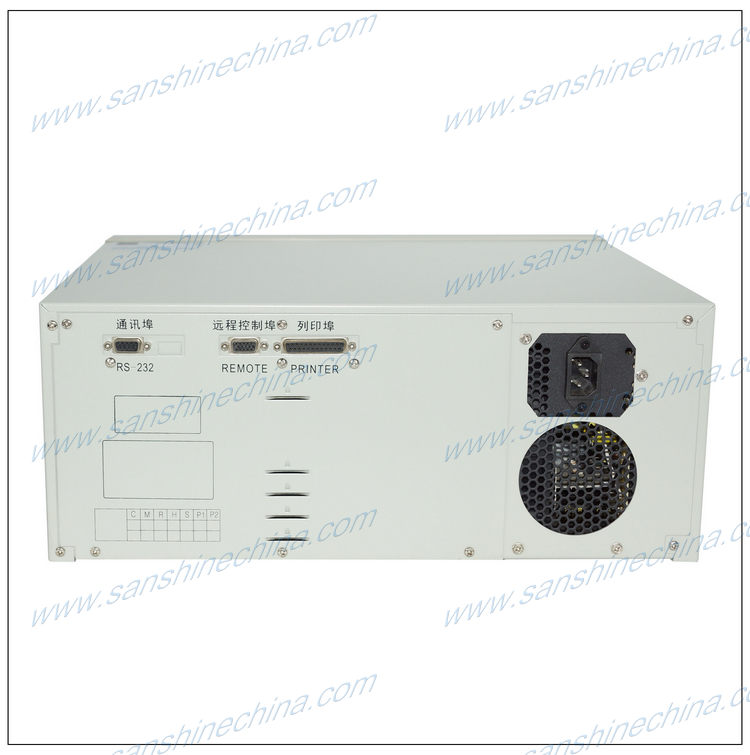

    I/O Interface RS-232 Port
    Printer Port
    Remote Control Port
    Memory Flash Memory
    100 Waveform Files
    Power  115/230V ± 10% 60/50Hz Switchable
    Accessories 2-Terminal Aligator Clips
    Remote Control Cable
    Power Cord
    User' s Guide
    Temperature & Humidity 10º C ~ 40º C
    RH≤ 75%
    Dimension (WxHxD) 425× 190× 350mm
    Weight Approx, 13Kgs(w/o Accessory)
    Ordering Information
    SS6815 200~3000V Impulse  Surge Tester
    SS6815F 200~5000V Impulse Surge Tester
