Product name : large single three phase electric transformer generator motor reactor pump winding turn analyser (SS-BT2500)
Description :
The electric transformer generator motor reactor pump winding turn analyser (SS-BT2500) is used for testing the turns number of the various huge winding coils. So that can check and make sure the coil turns are correct after winding processing. This electric transformer generator motor reactor pump winding turn analyser (SS-BT2500) is named coil turn metercoil turn meter also which used for measuring the turns number of the super big winding coils. Such as: large generator winding turns, three phase large power electric transformer winding turns, huge mortor winding turns, huge inductor winding turns, huge reactor coil turns, huge pump motor coil turns, etc..
Feature :
1. CPU control and digital display.
2. Operation easy, measuring automatically, no need switch the measurment range.
3. Accuracy: 0.1%.
4. 5 digits counts display.

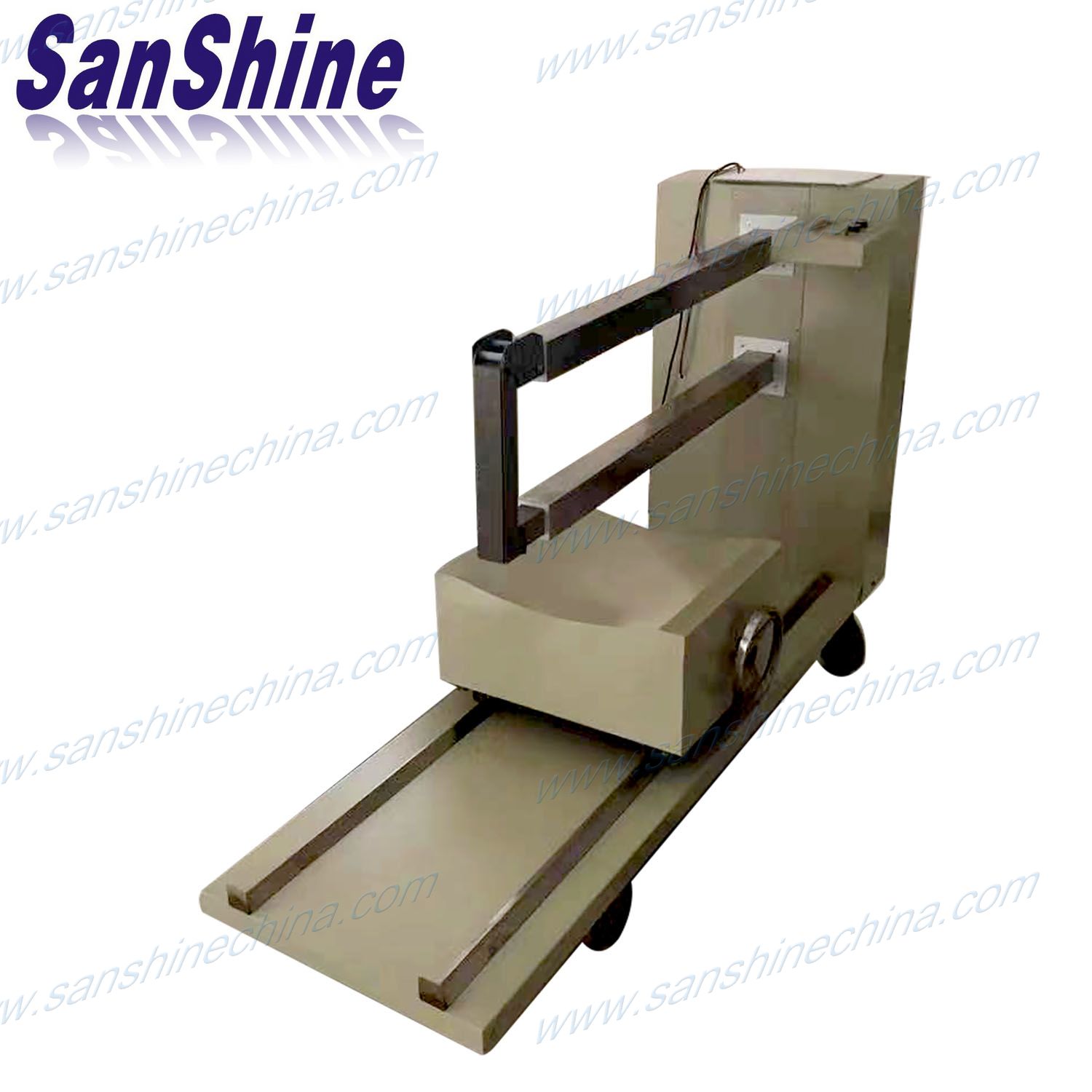

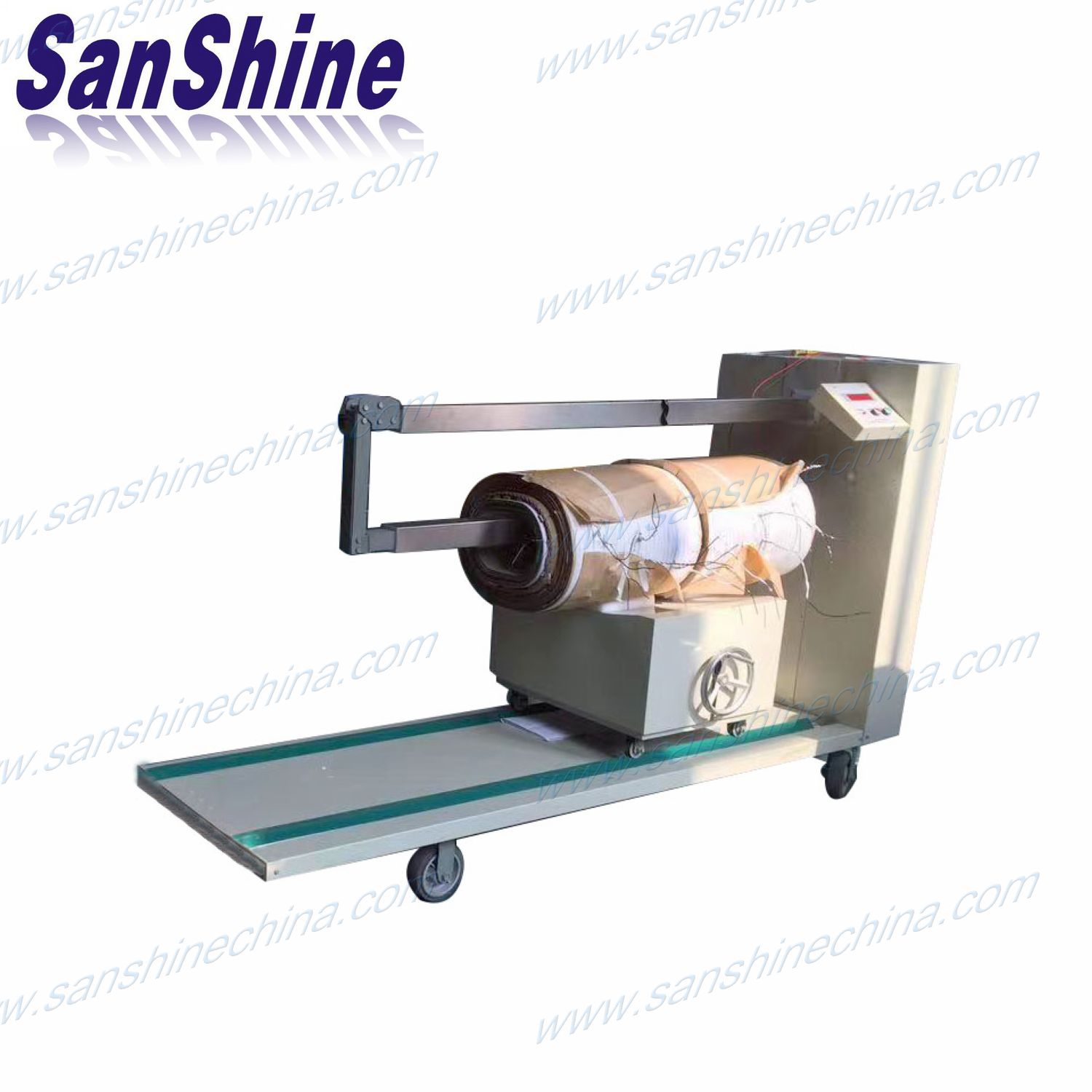

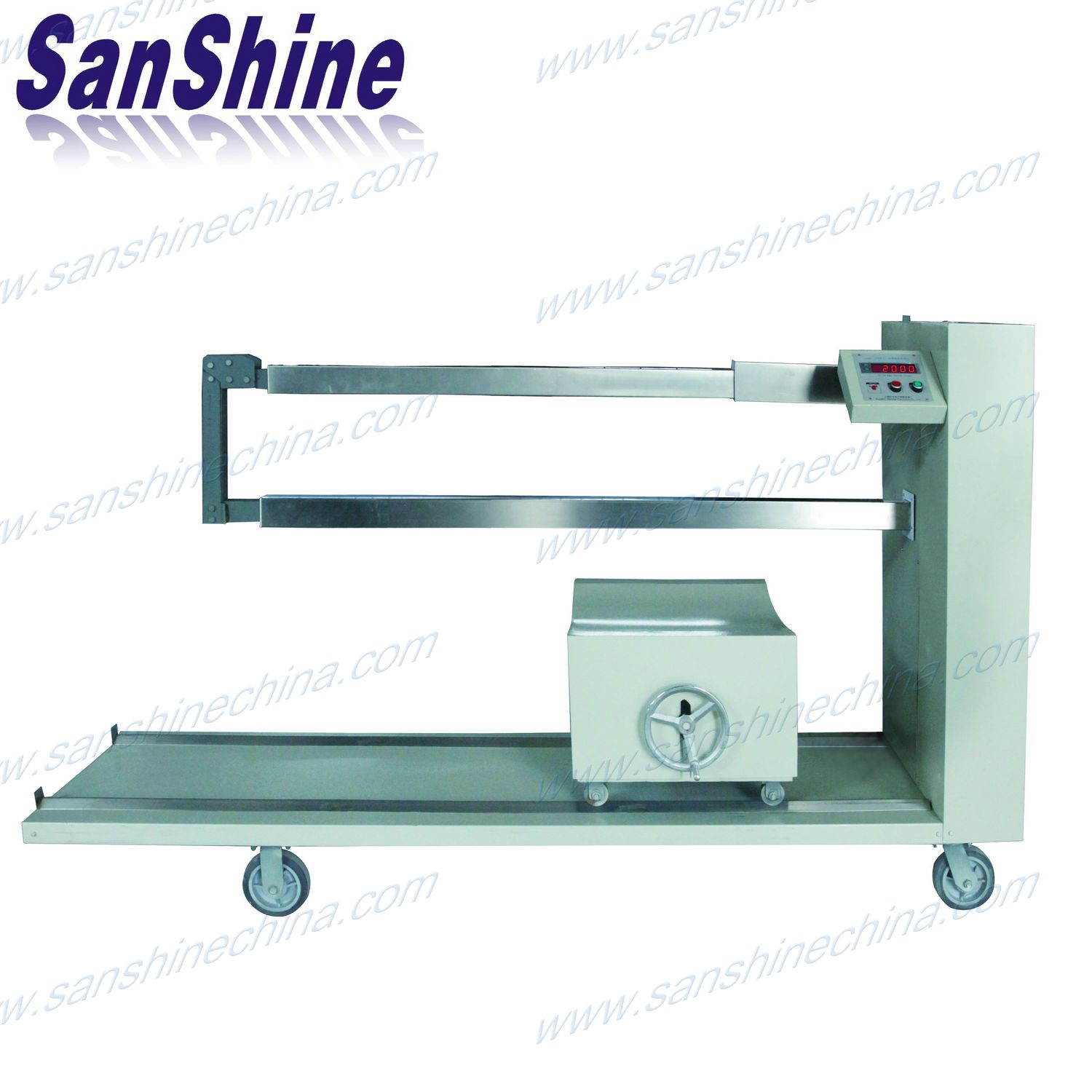

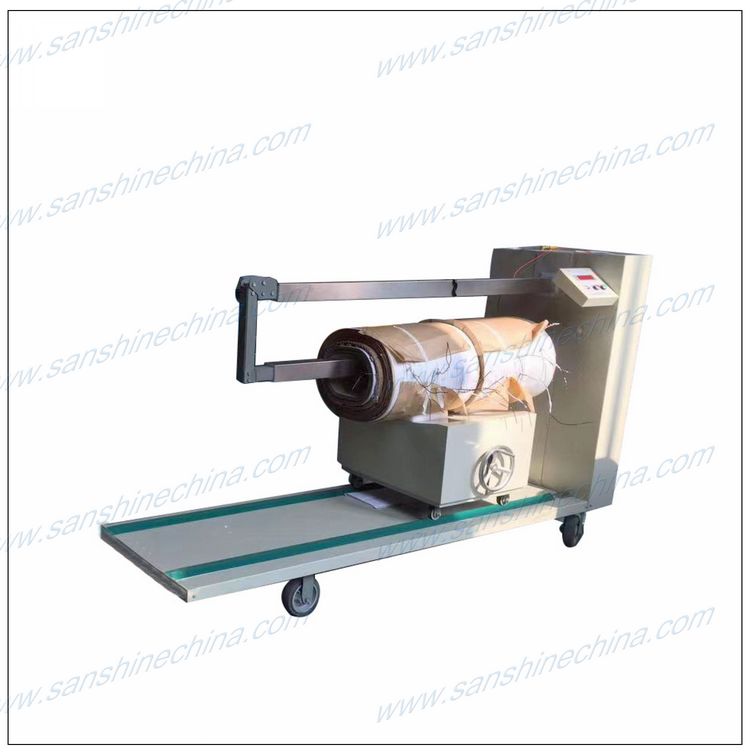

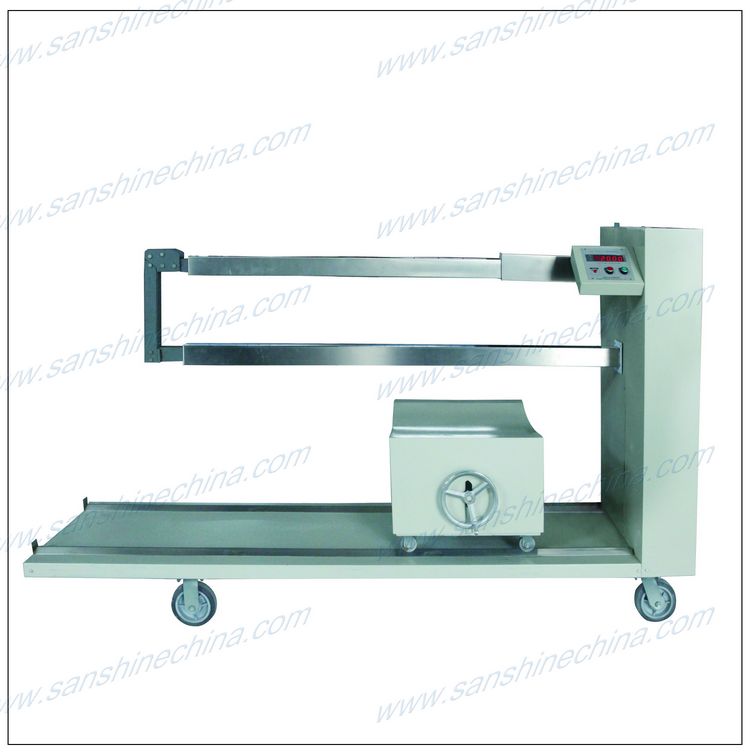

5. Rail type trolley to load the heavy huge winding coil for testing.
6. The wire turns shorting detecting function can be customized by request.
Specification :
| Model | SS-BT1000 | SS-BT1500 | SS-BT2000 | SS-BT2500 |
| Coil inner diameter | φ>100mm | |||
| Coil outside diameter | φ<350mm | φ<450mm | ||
| Coil height(length) | H<800mm | H<1300mm | H<1800mm | H<2300mm |
| Testing sensor bar size | 80X80mm | |||
| Coil turns range | 0~16000T | |||
| Testing accuracy(tolerance) | 0.1%（accuracy is 0.2% if the outer diameter of the measured coil exceeds the specified range.） | |||
| Testing speed | 3 Seconds /time | |||
| Tester measurement | 1700mm x 550mm x 1100mm | |||
| Tester weight | about 120Kgs | |||
