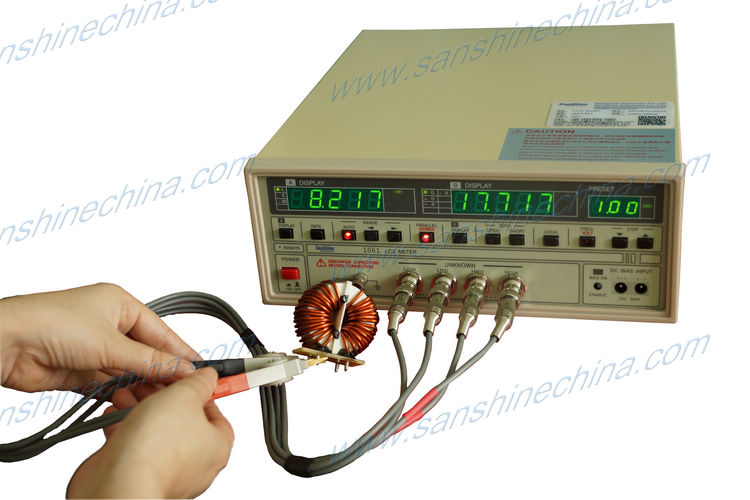

Description :

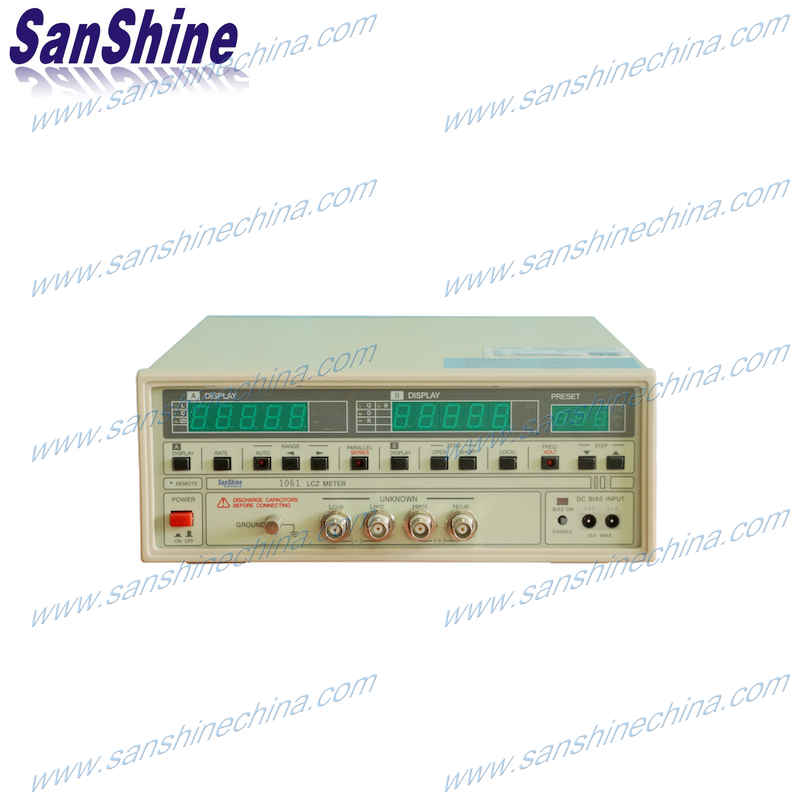

This (SS1061 / SS1062 / SS1063) LCZ Meters are a test system for passive components designed for the use in electronic inspection or production process for quality control. They meet any demanding requirement on production speed and precision, discrimination of qualified products from unqualified ones, as well as internal setup, storing and calling function for up to 10 instrument groups, so they are actually optimum test instruments for component incoming and production inspection. Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, eletric valve, contactor,cable,wire,etc.
Key Features :
Test frequency: 40Hz~200kHz
Basic measurement accuracy: 0.1%
Single-function Keys, LED display, easy to operate
LCR Nominal Value, Upper Limit%, Lower Limit%, Q / D / R / E Limit thumb switches setting(1062 only).
10 internal Instrument setups store / recall capability(1063 only).
L: 0.0001uH ~19999H; C: 0.0001pF~199.99mF; Z: 0.0001Ω~199.99MΩ; Q/D: 0.0000~10000
θ : -180deg ~ +179.99deg; ESR: 0.0001MΩ~19999kΩ,
Testing Voltage: 10mV~1.0V, 10mV/step,

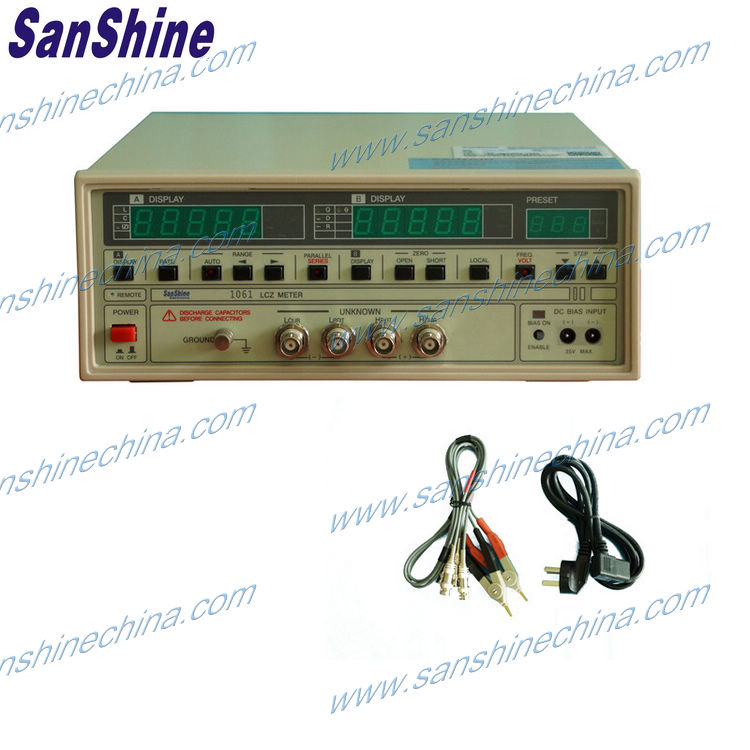

Order Items :
SS1061
SS1062
SS1063

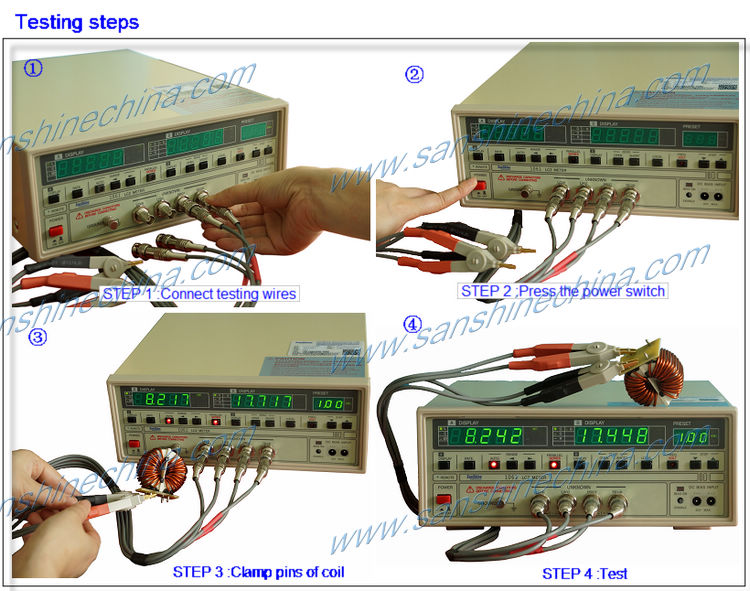

4-terminal test fixture
Test pen
Test box
SMD test wire
Order project :
SS1061
SS1062
SS1063
Four-terminal Test Wire Clamp(within tester)
Test Pen(optional)
Test Box(optional)
SMD Test Cable(optional)
Specification:
| Model | SS1061 | SS1062 | SS1063 |
| Test parameter | |||
| Primary display | L , C, R, Z | ||
| Secondary display | Q , D , ESR , θ | ||
| Measure signal | |||
| Meas. Level(voltage) | 10mV~1.0V, 10mV/step | ||
| Meas. Frequency | 40HZ~ 200KHZ, 30steps | ||
| Frequency accuracy | ± 0.01% | ||
| Out impedance | 100mA± 5% , (1V seting ), Impedance ≤10Ω, 2Ω± 10%, ≥ 10Ω | ||
| Measure Range | |||
| Primary parameter | L(0.0001uH ~ 19999H), C(0.0001pF~199.99mF) , Z(0.0001Ω ~199.99MΩ ) | ||
| Secondary parameter | Q, D(0.0000~ 10000), θ (-180.00° ~ +179.99° ), ESR(0.0001mΩ ~ 19999KΩ) | ||
| Base accuracy | 0.10% | ||
| Measure speed ( 1KHZ ) | |||
| Fast | 8 Meas. /S | ||
| Slow | 2.5 Meas. /S | ||
| Trigger | internal | internal, external, manual | |
| Display | |||
| L, C, Z, R | 5pcs digitals | ||
| Q, D, R, θ | 5pcs digitals | ||
| Frequency, level | 3pcs digitals | ||
| External DC base | DC: 0~35V | ||
| Revising function | open, short | ||
| Equivalent circuit model | in series , parallel | ||
| Automatic judgement | pass or fail | ||
| Memory | 10Groups seting | ||
| Common specification | |||
| Environment | temperature : 10 º C ~ 40 º C, humidity : 10%~90%RH | ||
| Power consuming | Max. 55W | ||
| Power | 90~125V or 190~250V, 48HZ~62HZ | ||
| Weight | ≈ 5.5Kg | ≈ 6.5Kg | |
| Meas.( W× H× L ) | 270× 105× 350mm | 405× 130× 365mm | |
