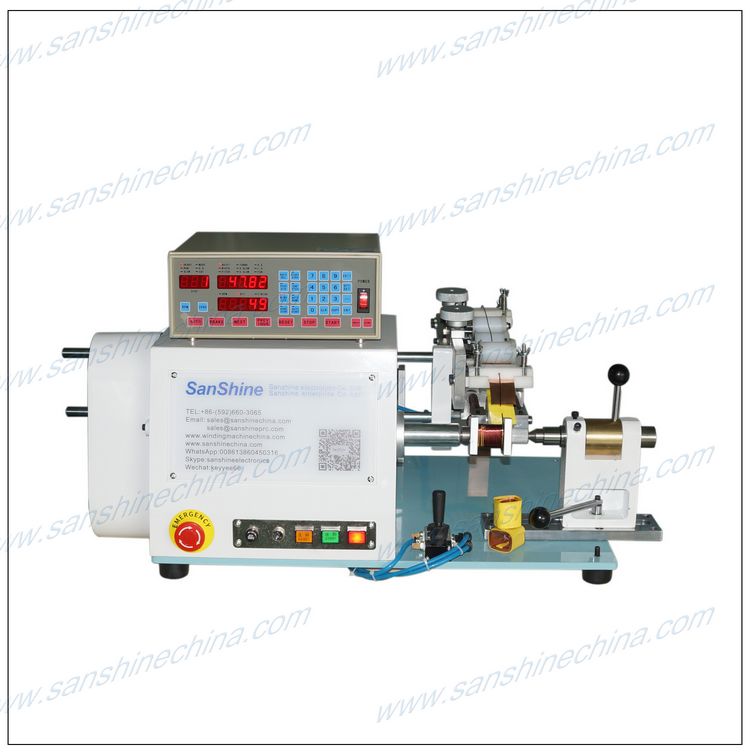

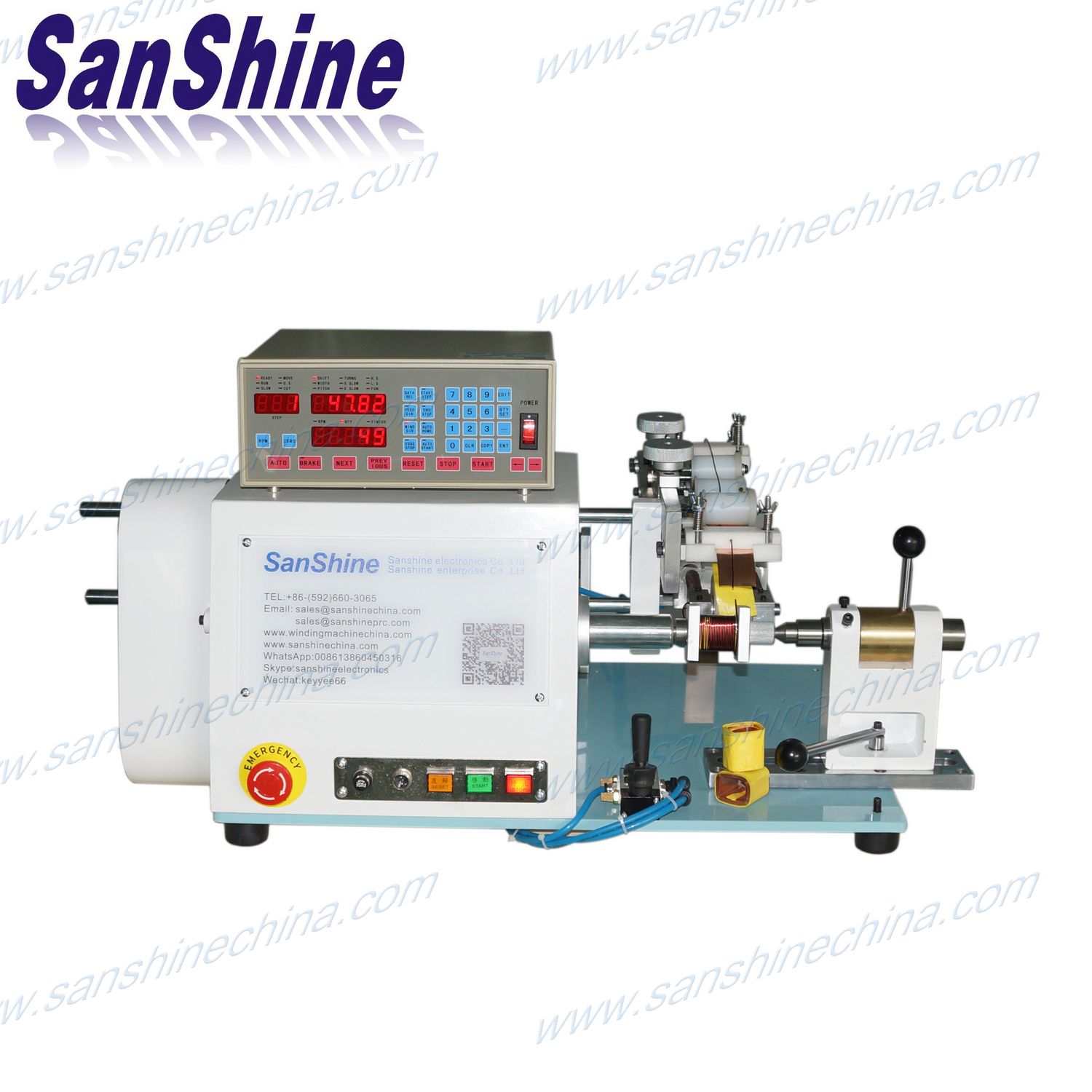

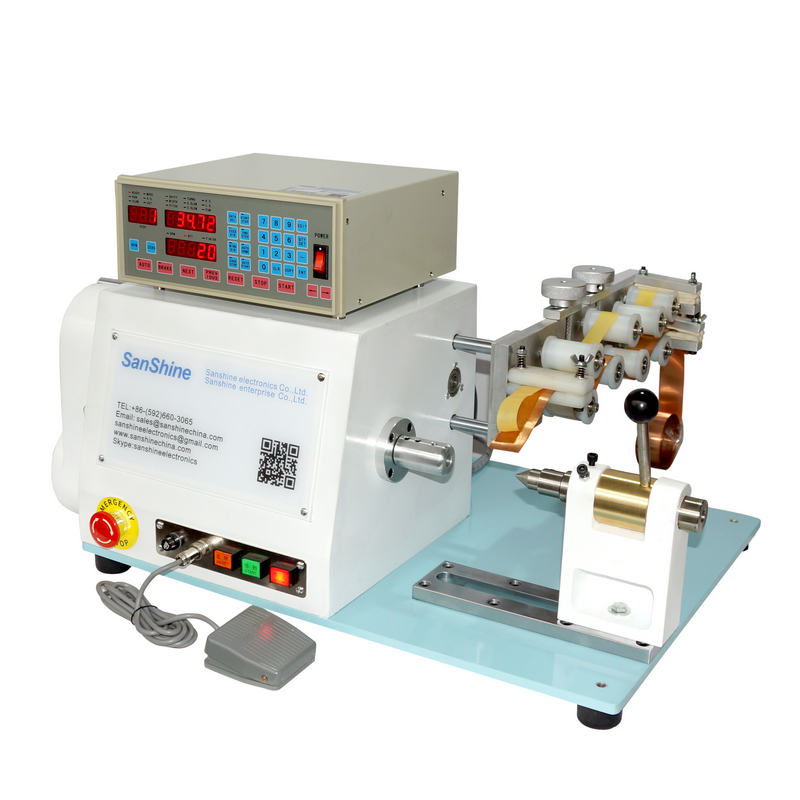

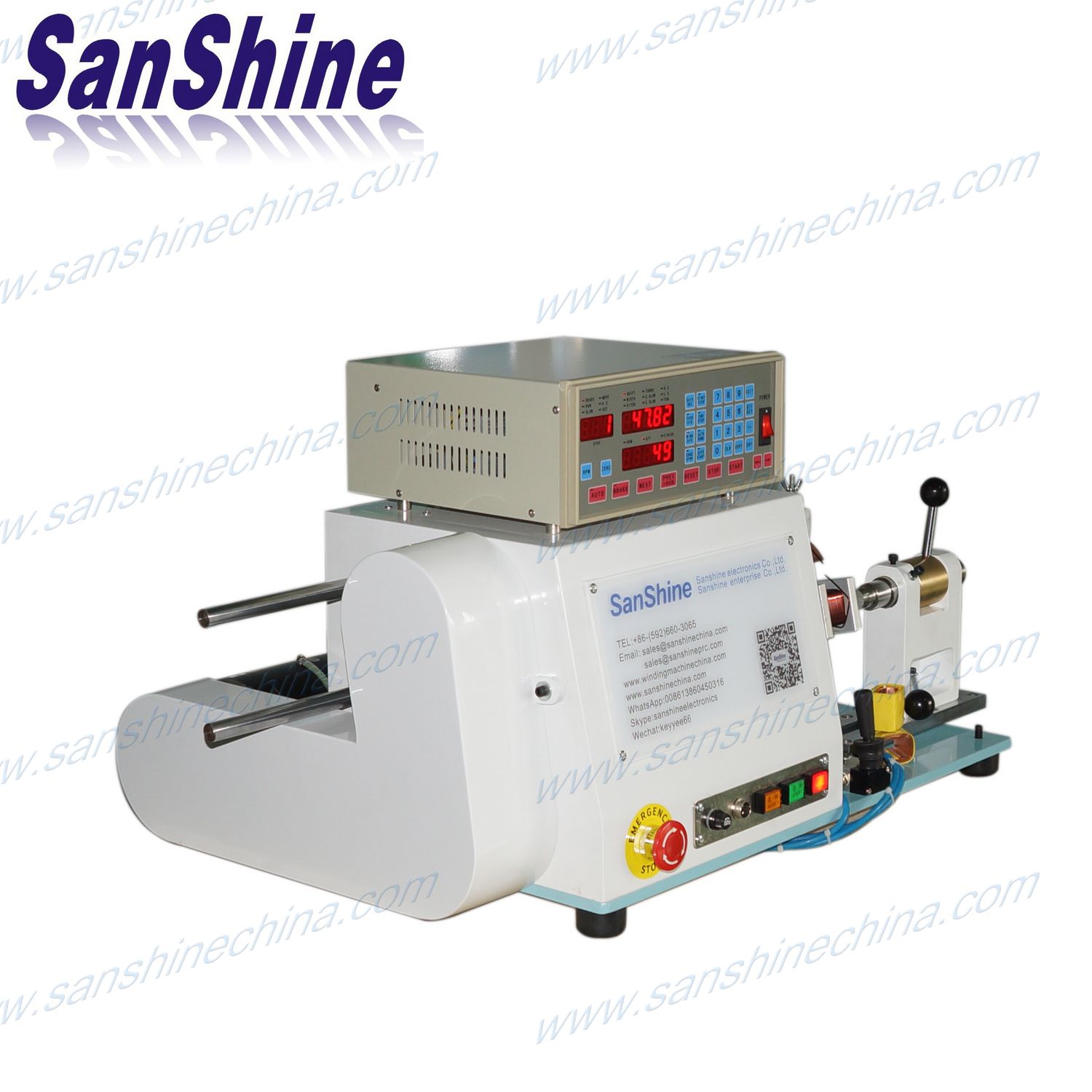

    Product name : Programmable automatic copper foil coil winding machine (SS851F)

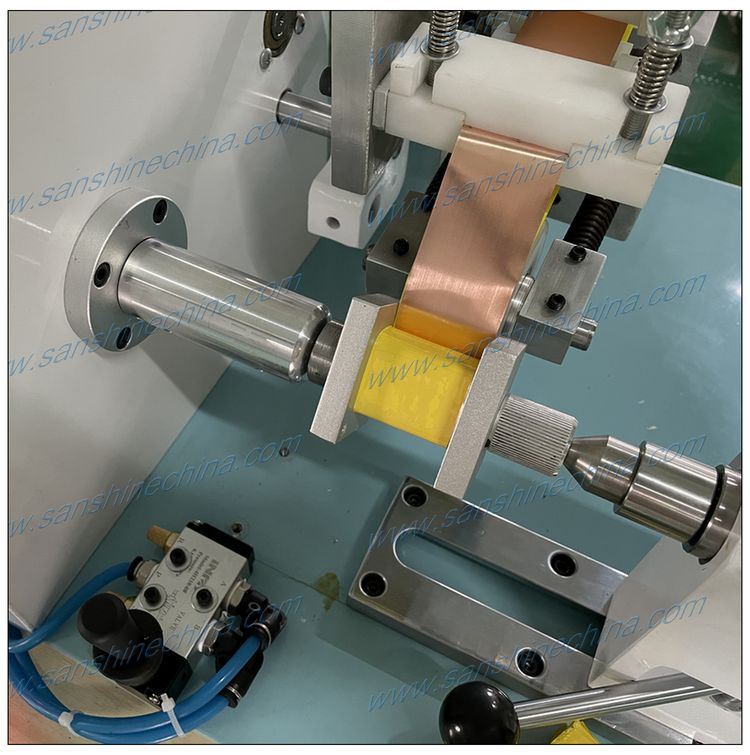

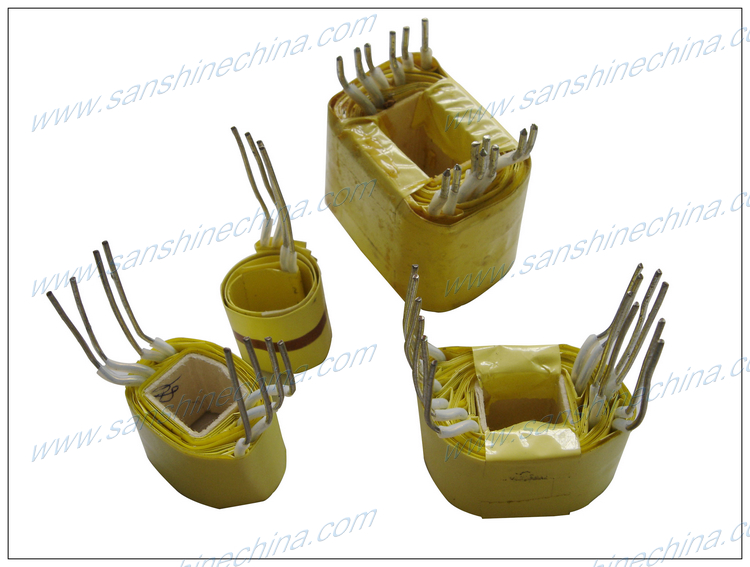

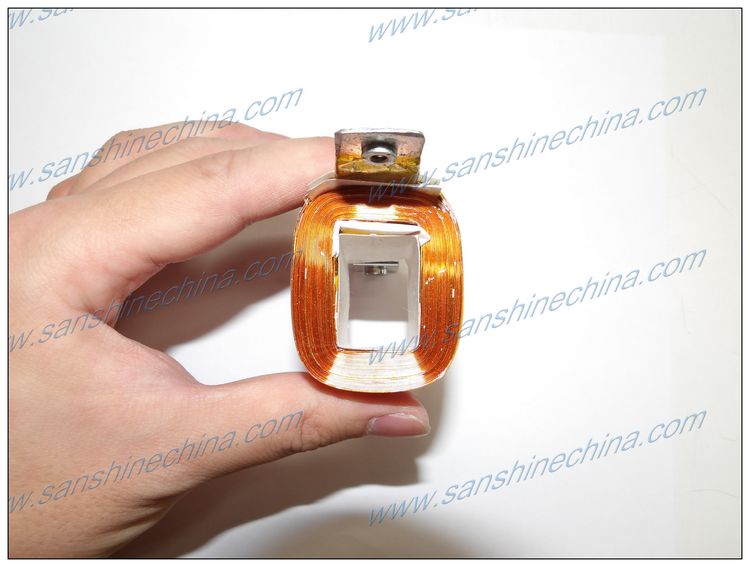

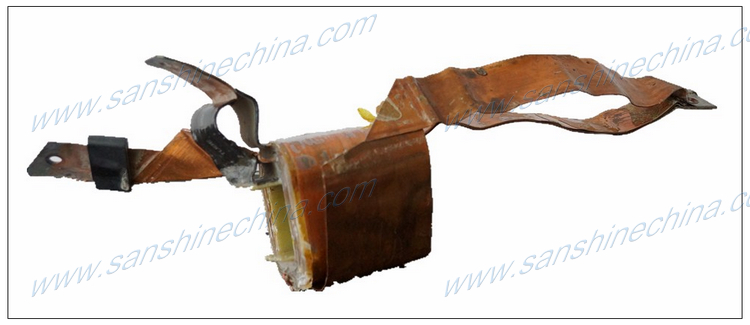

    Finished products after winding

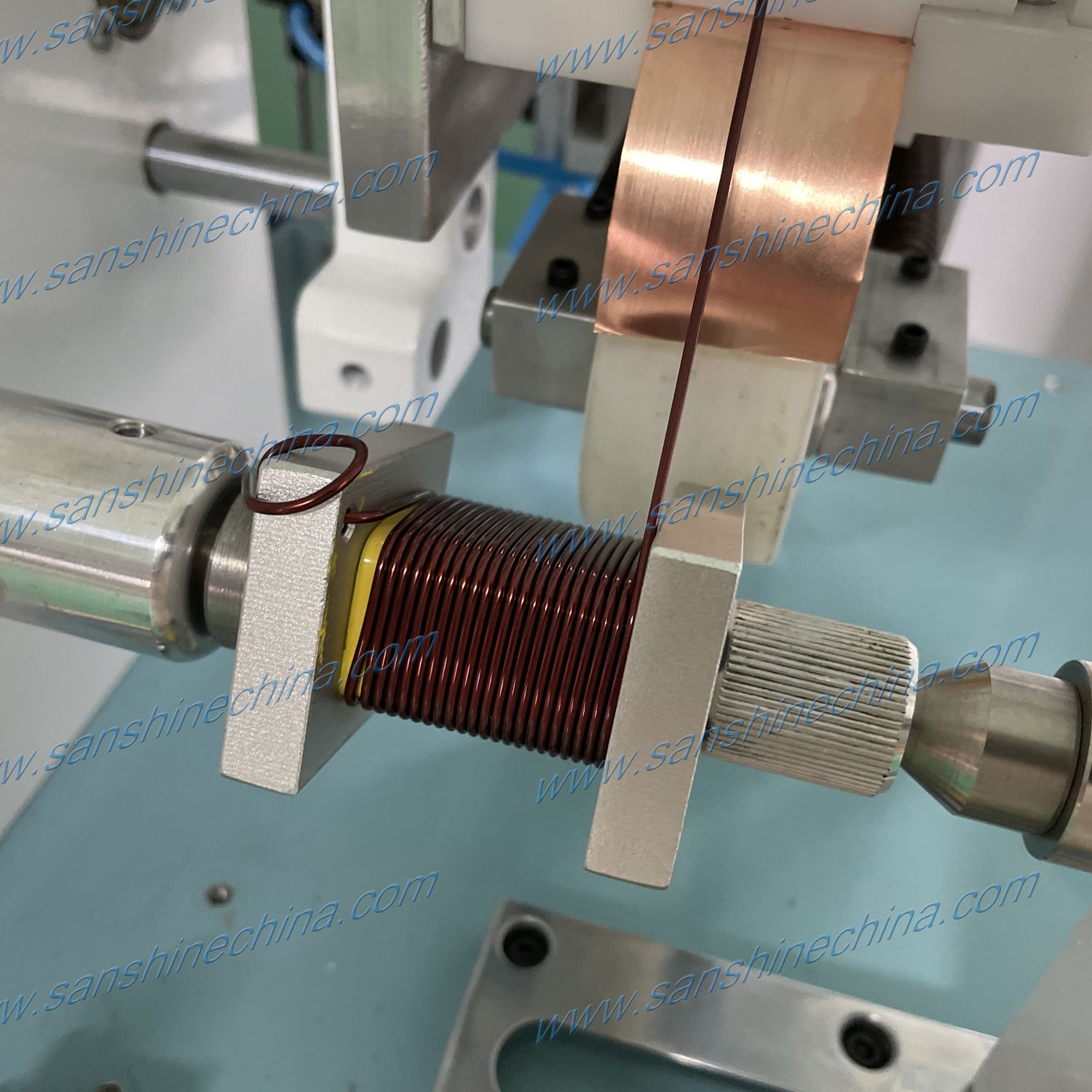

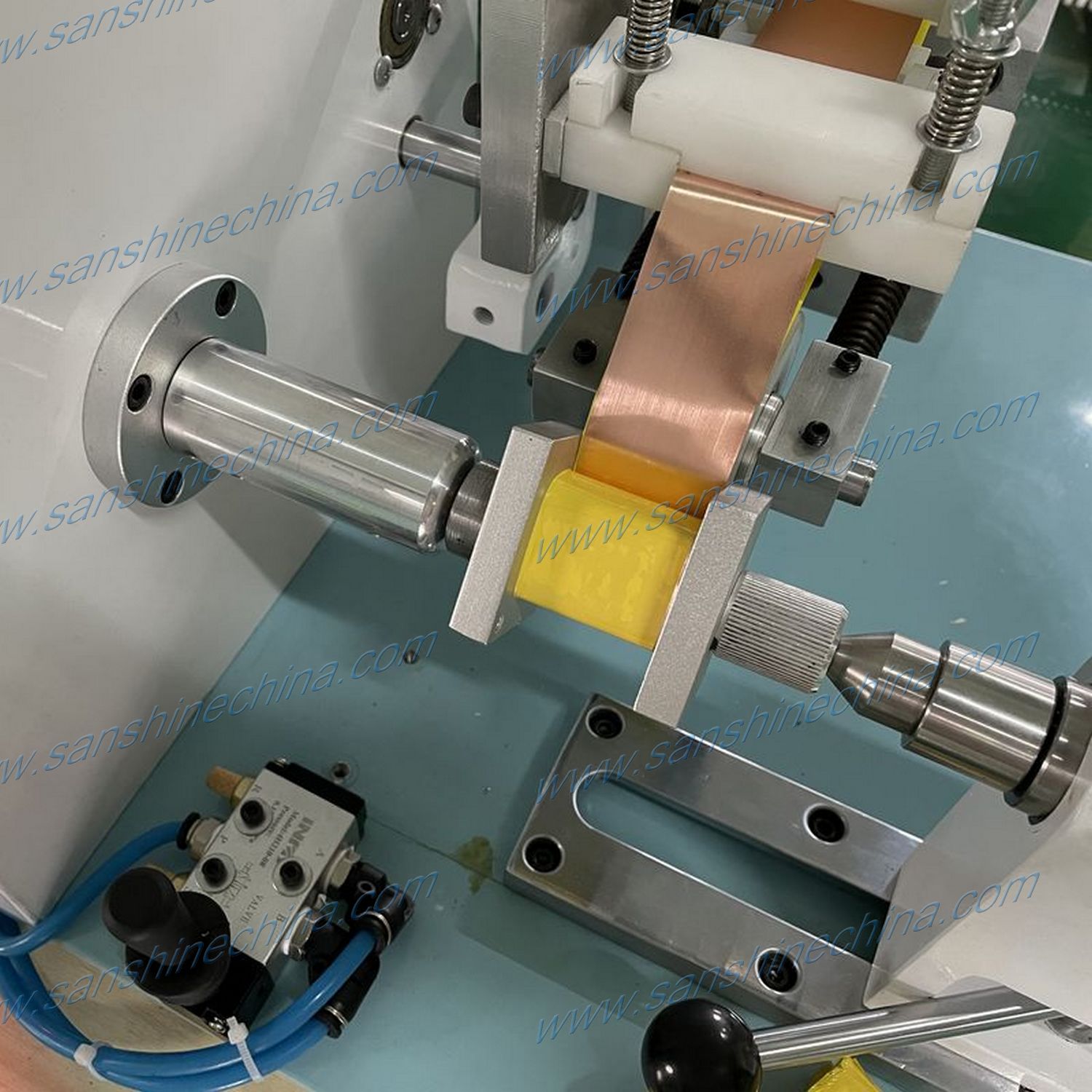

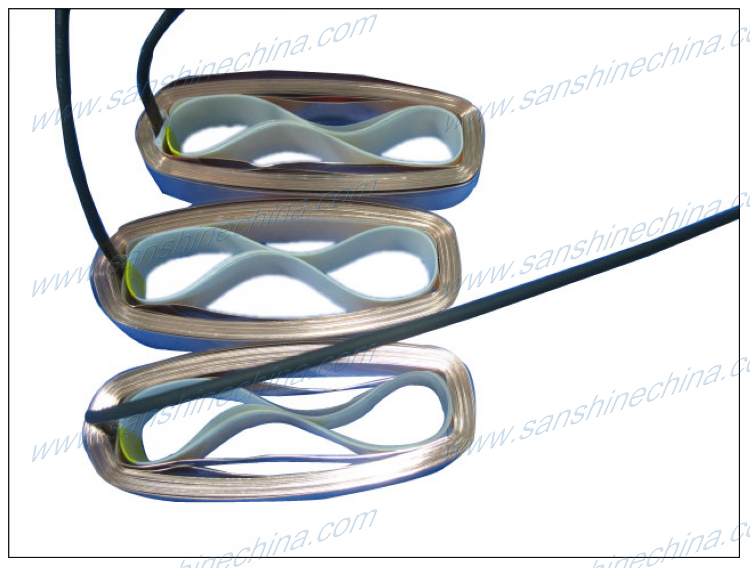

    winding coil after winding




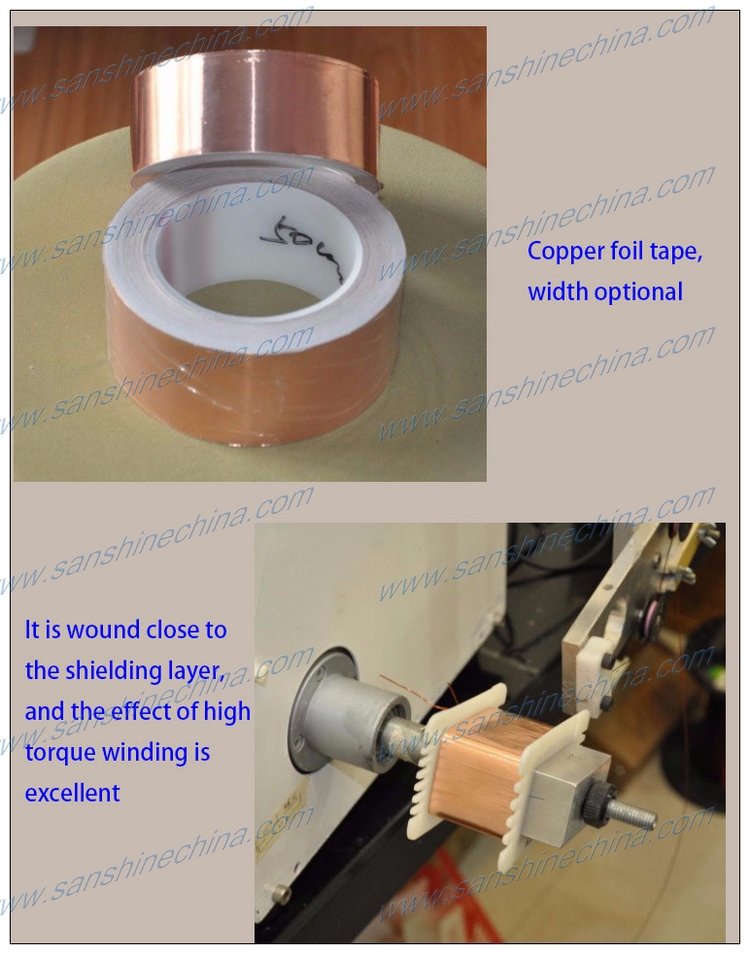

    Description :

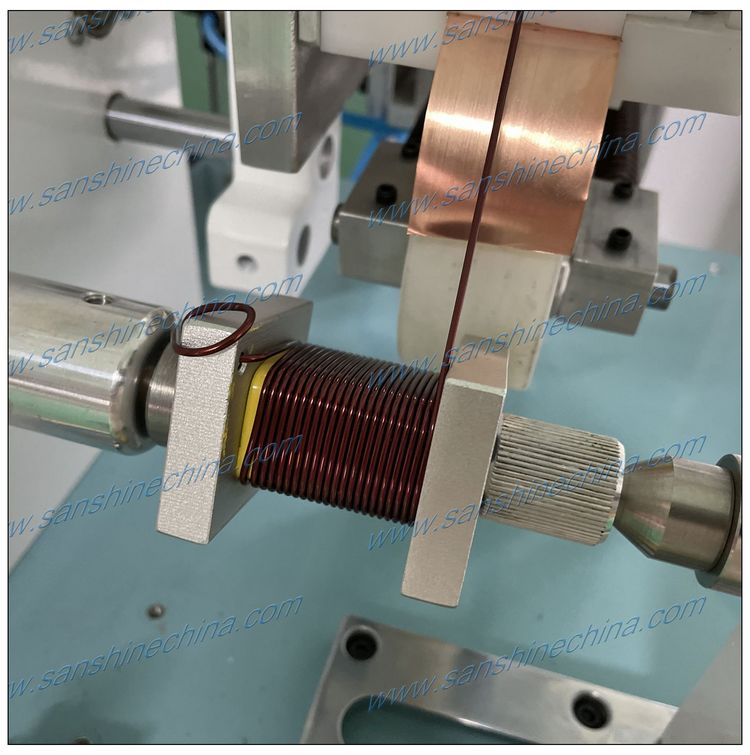

    The programmable automatic copper foil coil winding machine (SS851F) is a digital type programmable foil coil winding machine with high torsion DC winding motor. This winder is used for winding the foil type inductors and foil type transformers. It can wind the copper foil with the insulation Mylar tape (Mylar film, insulation paper) together at the same time. And can complete the special transformer whose some winding winded by round wires and another windings need be winded by copper foil. The Maximum wire diameter of this winder can reach 5.0mm for small coil if the finished coil outside diameter less than 55mm. This machine is the best choice for winding reactive coil, electric power transformer, flat wire coil, copper foil coils, aluminum foil coils, copper foil transformer, copper foil reactor. It be named mylar tape layer copper foil winding machine also. This winder can be customized according to coil size by requested.

    Feature :

    1. Microprocessor design, easy for program-setting.

    2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.

    3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

    4. Wire passing through ceramic rollers prevent enamel from high temperature.

    5. Multiple spindles winding synchronal for highest efficiency.

    6. Foot-switch connection for better efficiency.

    7. Winding parameters and options can be set.

    Specification :

    ModelSS851F
    Spindle Number1
    Wire diameter0.05~ 5.0mm
    Spread pitch0.001~ 9.999mm
    Copper /aluminum foil thickness0.03~ 2.8mm
    Copper /aluminum foil width0.5~ 85mm
    Spread width(traverse)Max. 230mm
    Finished coil diameterMax. 200mm
    Winding motor500W DC Motor
    Spread motor4-Phase Stepper Motor
    Max. speed2500 RPM
    Memory capacity999 Steps
    Power sourceAC220V /110V + 10%, 50/60 Hz
    Dimension(cm)70x52x60
    Net weight46Kgs
