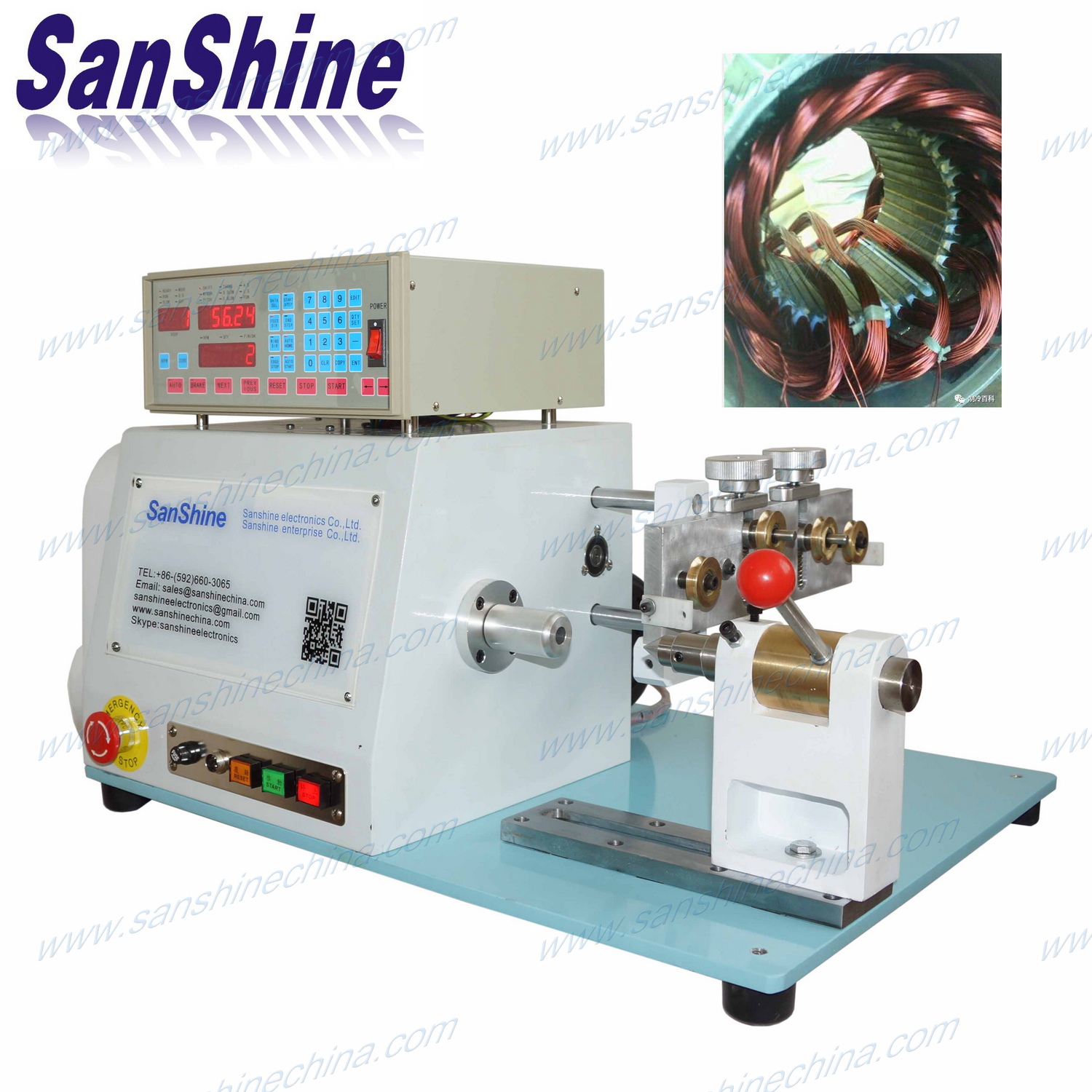

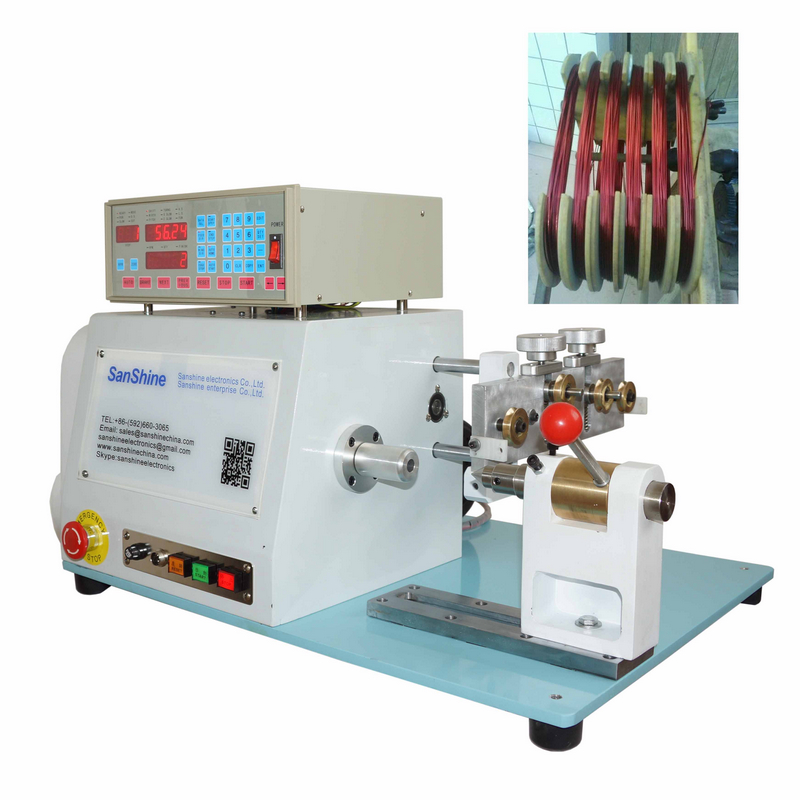

Product name : Programmable automatic motor generator coil winding machine (SS851MS)
Description :

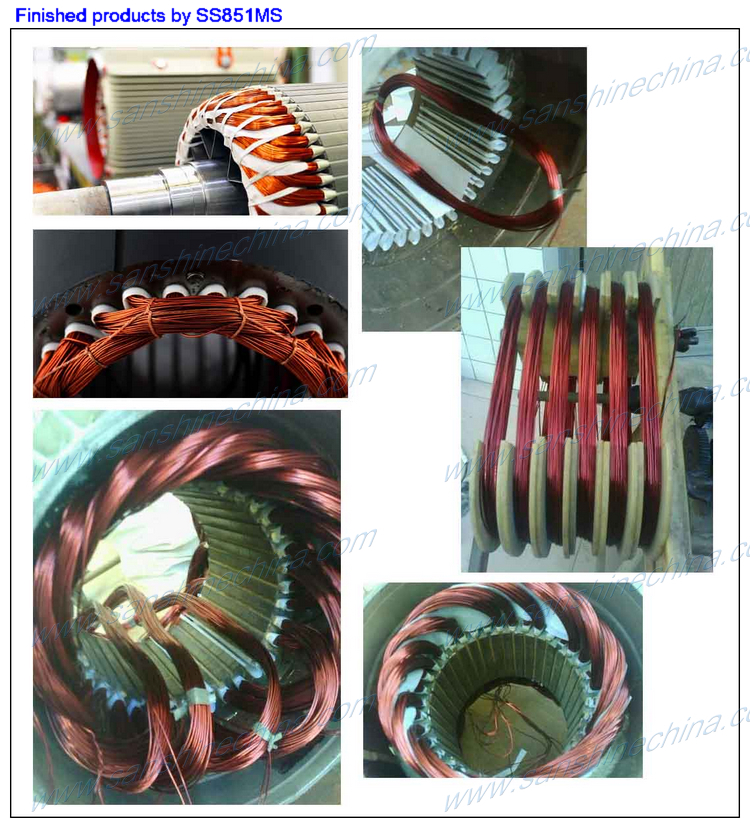

The Programmable automatic motor generator coil winding machine (SS851MS) is a CNC programmable winding machine with the high torsion DC winding motor. The Maximum wire diameter of this winder can reach 5.0mm if the finished coil outside diameter less than 55mm. This motor stator generator coil winding machine (SS851MS) is the best choice for winding and rewinding the motor stator and generator coils. This motor stator generator coil winding machine is named CNC generator coil winding machine also. This programmable automatic generator coil winding machine (SS851MS) can be customized according to coil size by requested.
Feature :
1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Multiple spindles winding synchronal for highest efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.
Specification :
| Model | SS851MS |
| Spindle Number | 1 |
| Wire diameter | 0.05~5.0mm |
| Spread pitch | 0~9.999mm |
| Spread width(traverse) | 230mm |
| Finished coil diameter | 200mm |
| Winding motor | 500W DC Motor |
| Spread motor | 4-Phase Stepper Motor |
| Max. speed | 2500 RPM |
| Memory | 999 Steps |
| Power source | AC220V/110V + 10%, 50/60 Hz |
| Dimension(cm) | 70x52x60 |
| Net weight | 42kgs |
