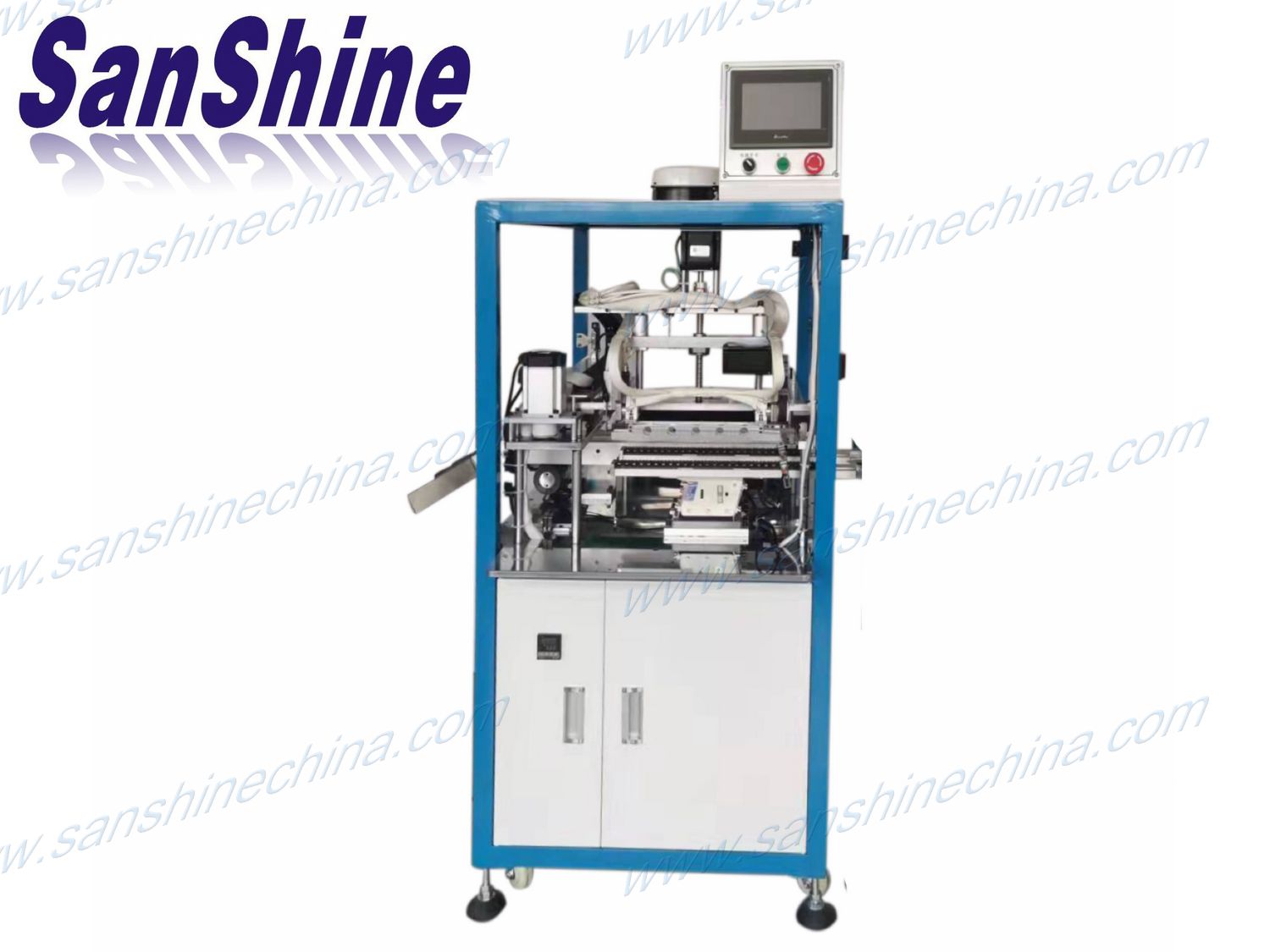

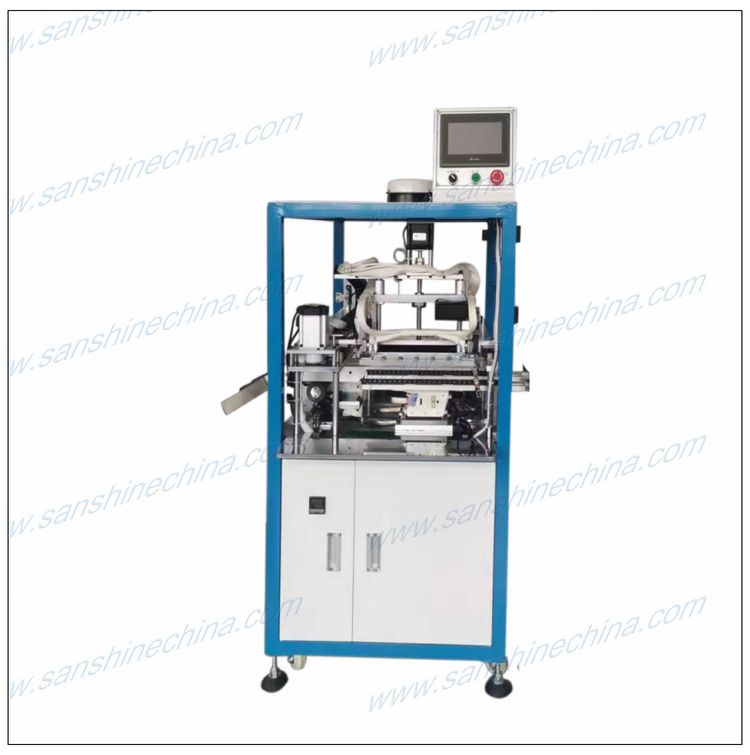

Product name : Fully automatic multifunctional transformer inductor relay coil solder tinning machine (SS-FAS01)

Description :

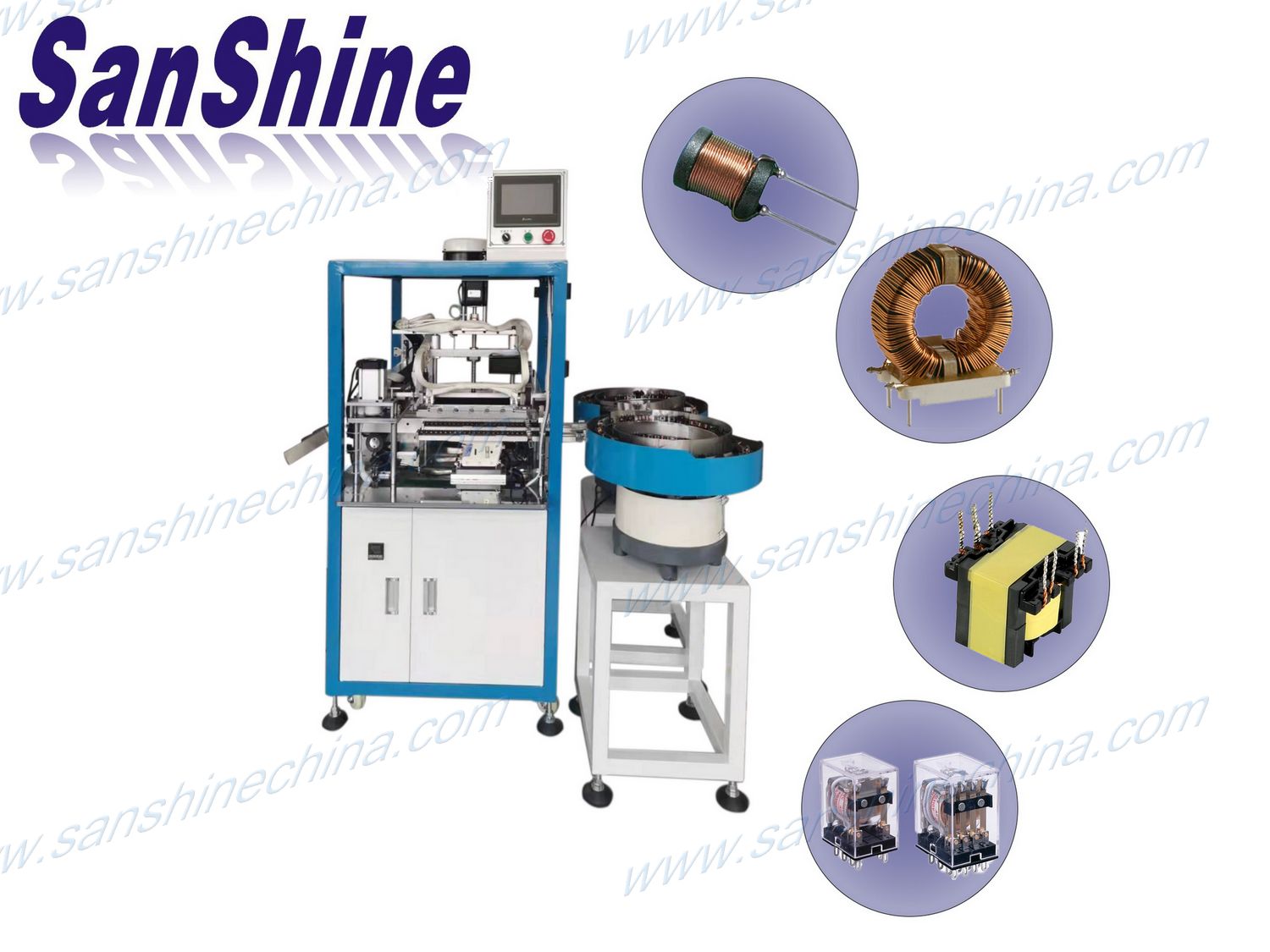

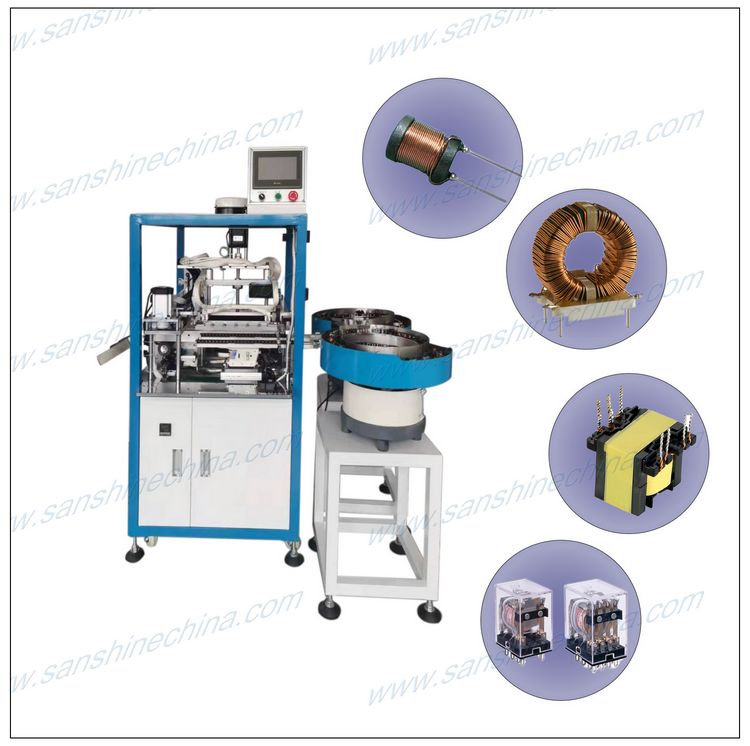

This fully automatic multifunctional transformer inductor relay coil solder tinning machine (SS-FAS01) adopts precise PLC digital tinning controller and servo motors. This multifunction tinning machine can load products, dip soldering fluxes, tin products, control tinning temperature, control tinning time, tinning angle and depth, down load the products without operator. Take the soldering components to be an angle before its pins be inserted(dipped) into the liquid solder. The dipping (tinning) angle, dipping depth, dipping time, dipping temperature are programmable easily by user. This solder tinning machine is named electronic component pin solder tinning robot and choke coil soldering production line also. This digital fully automatic tinnig machine is best choice for soldering transformer inductor, choke coil, relay, contactor, wire terminal, electronic components and coils without operator.

Feature :

1. Multifunction and multi-purpose automatic soldering machine by angle-able.

2. Most suitable for soldering electronic components or coils which request soldering at an angle.

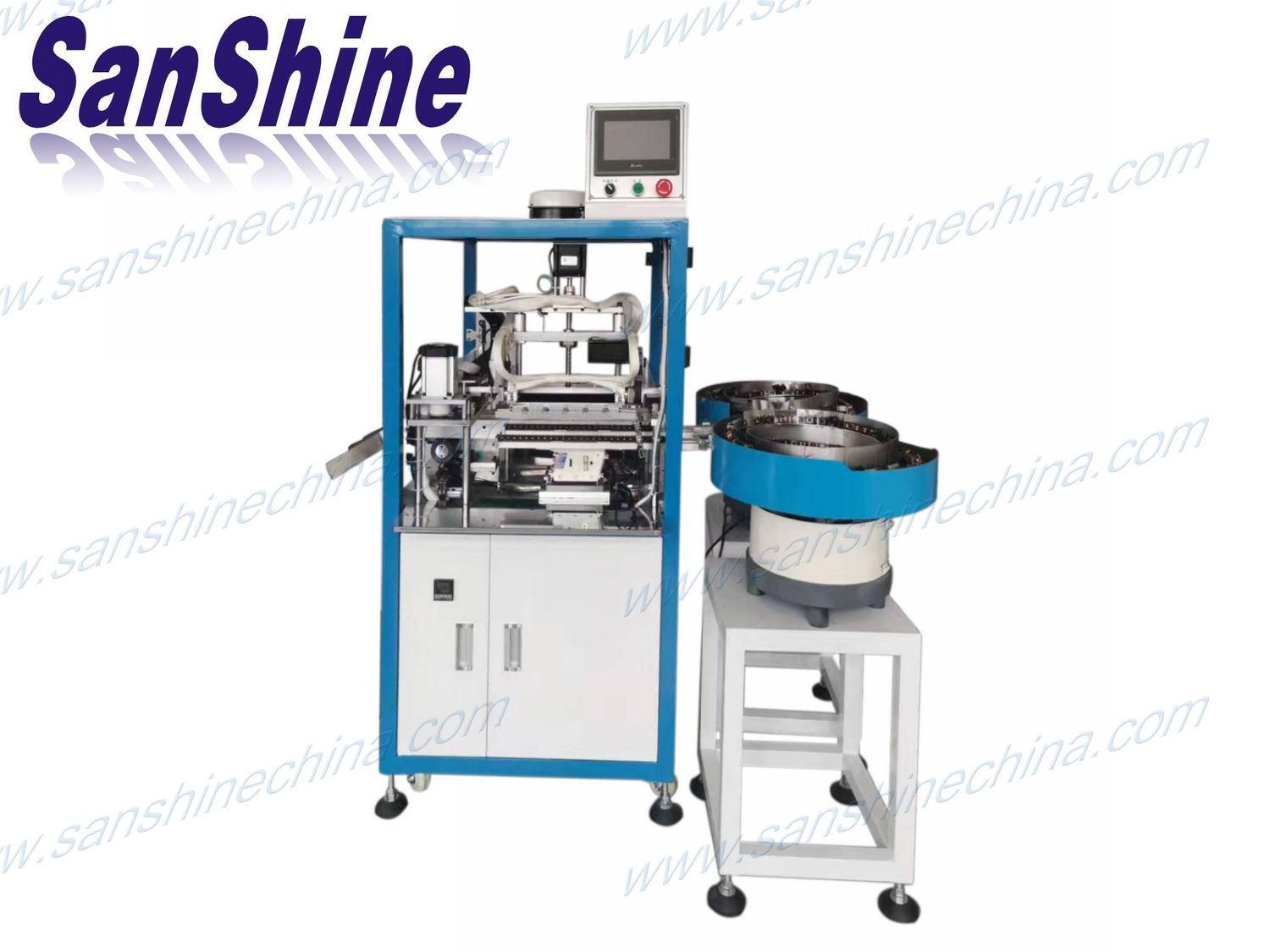

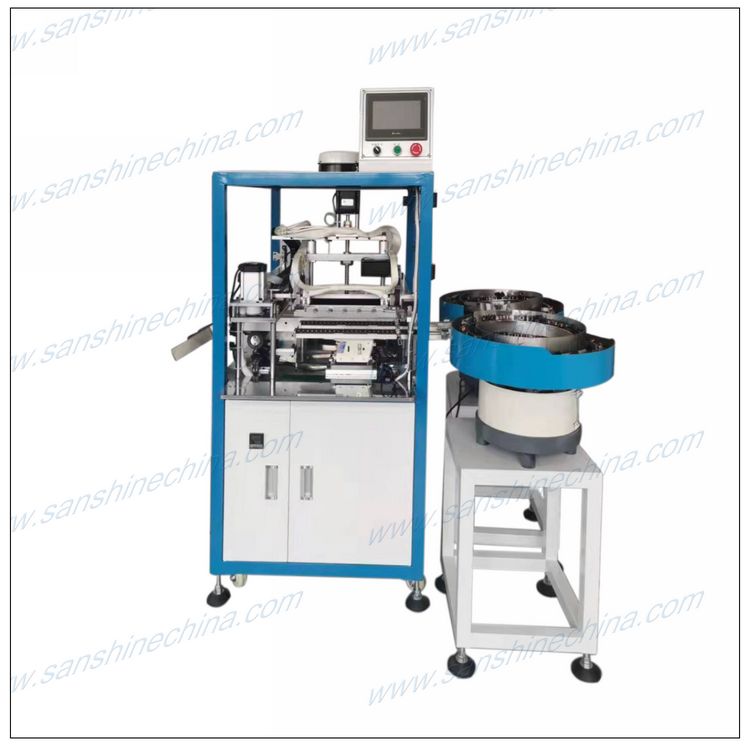

3. Products automatic loading vibrating device (the tracking path rail is designed and made according to product size, different size product need different tracking path rail.) is optional by user request. User can buy 3 units different size automatic loading vibrating device for 3 types different size products, so the machine can tin 3 types different size products in cycle. If user does not want buy the automatic loading vibrating device, User can load and sort the products by manual on the machine first, then machine pick up them to tin automatically.

4. Multiple coils can be soldered in one cycle.

5. Precise PLC controlling system with servo motors and big touch screen for operation.

6. Can be integrated with user's fully automatic production line easily.

7. Each section can be provided with additional programming parameters, angle setting, dipping depth, and pre-heating time.

8. Machine size: L1200*W1500*H1500mm. Machine power source: Single phase AC220V 50/60Hz. Machine air pressure source:0.7Mpa. Machine power: 3.5KW.

9. Process includes position to an angle, then DIP solder, then re-position to other side angle for soldering, and finally re-position to parallel for cleaning solder.

10. Lead free titanium inner bath tank with one plated ceramic to withstand high temperatures and reduce oxidation.

11. Lead free titanium DIP pot suitable for lead free solder. Dip pot inner size L390*W100mm*D50mm.

12. Side inserted heating tubes enable easy maintenance.

13. Automatically clean the sediment of solder before soldering.
